Model:                 YSV-2A
Size:                   780 X 460X 560mm
The Longest Minimize:   460mm
Minimize Speed:         100/200/300/500mm/s
Minimize thickness:     0.6-3.5mm
Machine Weight:         55Kg

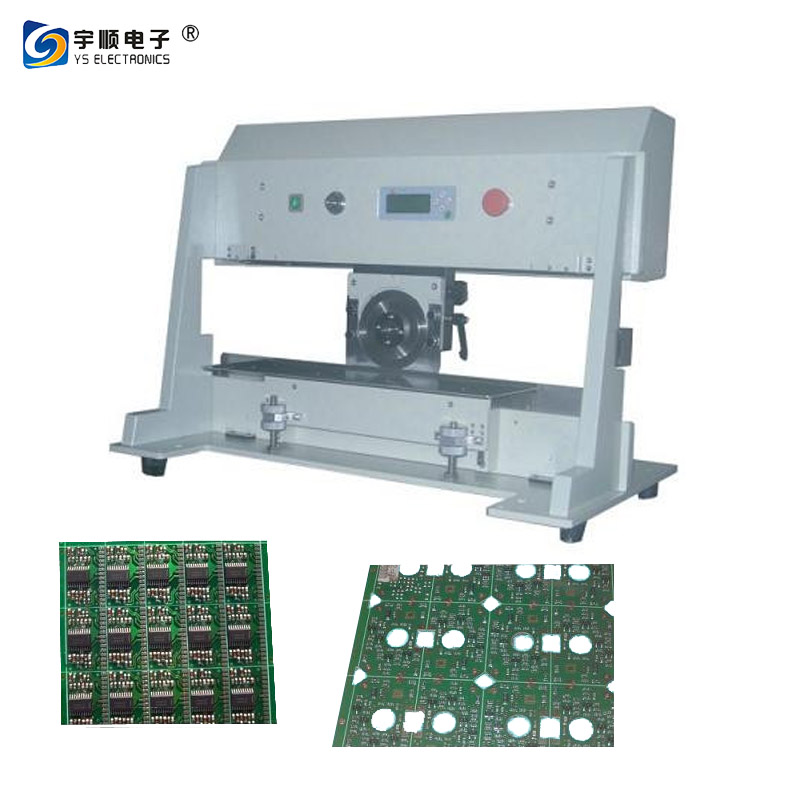

led aluminium pcb separator YSV-2A
1.Separate pre-scored PCB assembly without stress on either PCB or component
2.One touch programming of cut length with digital display
3.Separating speed is adjusted by a rotary knob
4.Handle Intermittent scoring or cut-outs
5.Board with projected component can be cut precisely
6.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7.Optional PCB conveyor belt to remove finished board
8.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
