Product Attributes:

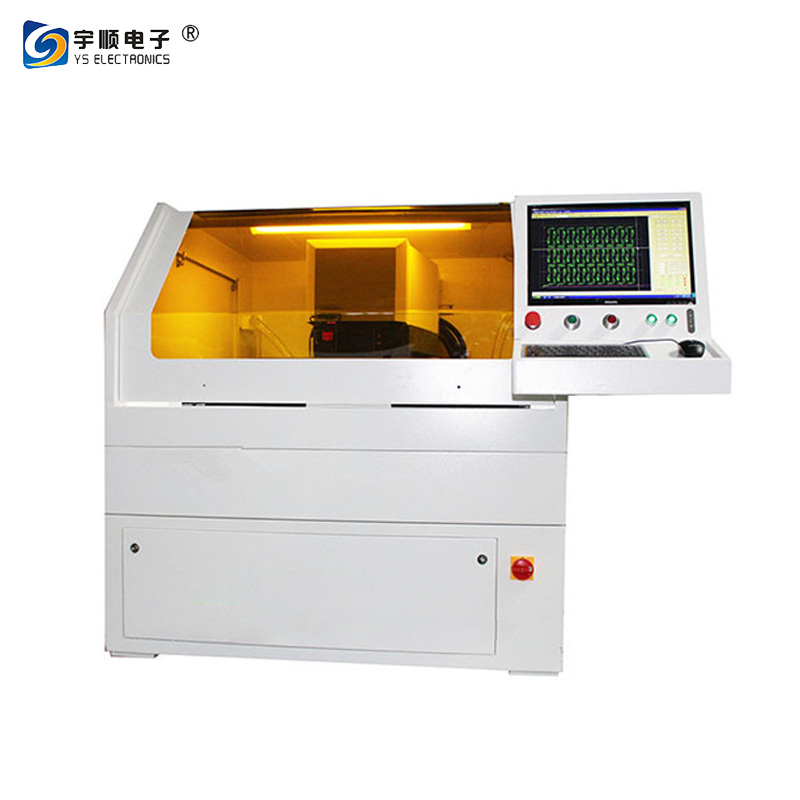

| Product name | UV Laser Cutting Machine |
| Brand Name: | YUSH |
| Model Number: | YSATM-4C |
| Certification: | CE |
| Place of Origin: | China |
| Packaging Details: | Wooden Carton |
UV Laser Cutting Machine USE:
The machine is used in cutting,opening the window and uncovery for CVL/FPC/RF and thin
multilayer board, as well as cutting a variety of substrates, such as ceramic, silicon etc.
UV Laser Cutting Machine Features:
1, Precision:Adopting linear motor module,Servo control,sizing compensation,optical positioning and
secondary positioning technologies.
2, High quality: little carbonization; high density graphics cutting.
3, Highly intelligent,efficient: With multi-panels cutting,auto-positioning,auto-correcting,automatic sizing compensation and exclusive cutting previews functions.
Cutting Examples:
UV Laser Cutting Machine Client:
| Accuracy |
①System processing accuracy:±20μ |
| ②Positioning accuracy:±3μm | |
| ③Repeat accuracy:±1μm | |
| Cutting speed | ≥150mm/s |
| Objects | ①Cutting thickness:≦1.0mm |
| ②Maximum processing size:610X460mm or 610×500mm(Optional) | |
| Dimensions | 1800*1600*1700mm |
| Weight | 2500Kg |
