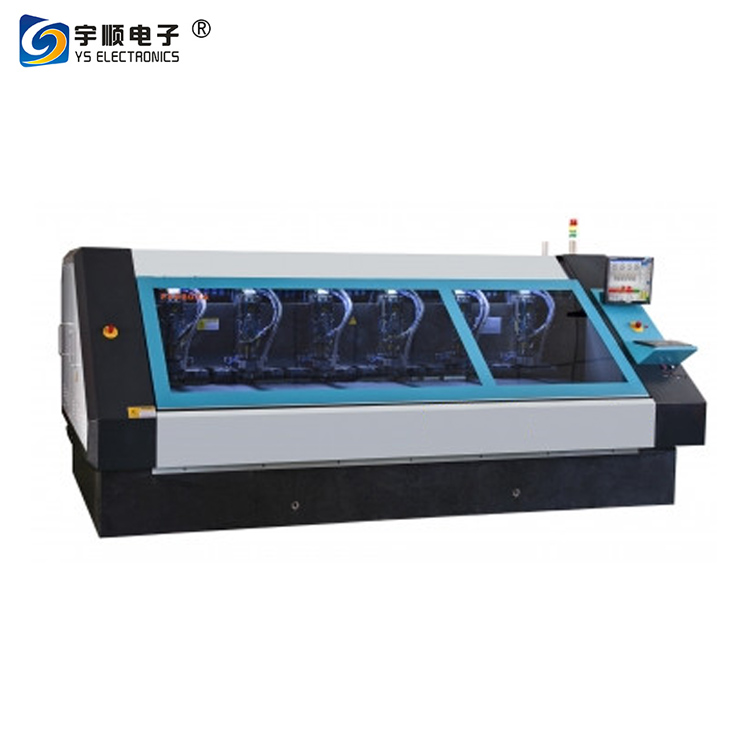

YS-1300 -CNC Drilling Machine for Aluminum pcb / PCB drilling spindle

Advantages:

1. X/Y/Z axis linear motors, the maximum velocities of X/Y axis are 100m/min.

2. 200krpm ultra-highspeed spindle, suitable for substrate, high-order HDI, micro-hole, blind buried hole processing.

Main Parameter:

Velocity of X/Y axis	100m/min
Velocity of Z axis	50m/min
Spindle speed	200krpm
Drill size range	￠0.1－￠6.35mm
Tool magazine capacity	6×242(Put on a knife） 6×300（Underneath the knife）
Positioning accuracy	±0.004mm
Repeatability accuracy	±0.0025mm
Drilling accuracy	±0.8mil（Under the condition of VEGA's test）
Table area	6×560mm×700mm
Power requirement	3PH-AC380V＋PE,50/60HZ 15KVA
Air requirement	7-8bar
Cooling requirement	17℃-20℃
Temperature	22±2℃
Humidity	50%-65％
Noise	≤85dBA
Dimensions(L×W×H)	4340mm×2100mm×1700mm
Weight	13500kg

Main Parameter:

standard accessories:

working Demo：

Machine Application:

Application Materials: CNC PCB drilling/routing machine is good at drilling various materials: copper pcb, aluminum pcb, FR4 pcb, acrylic palte, copper plate, etc.
