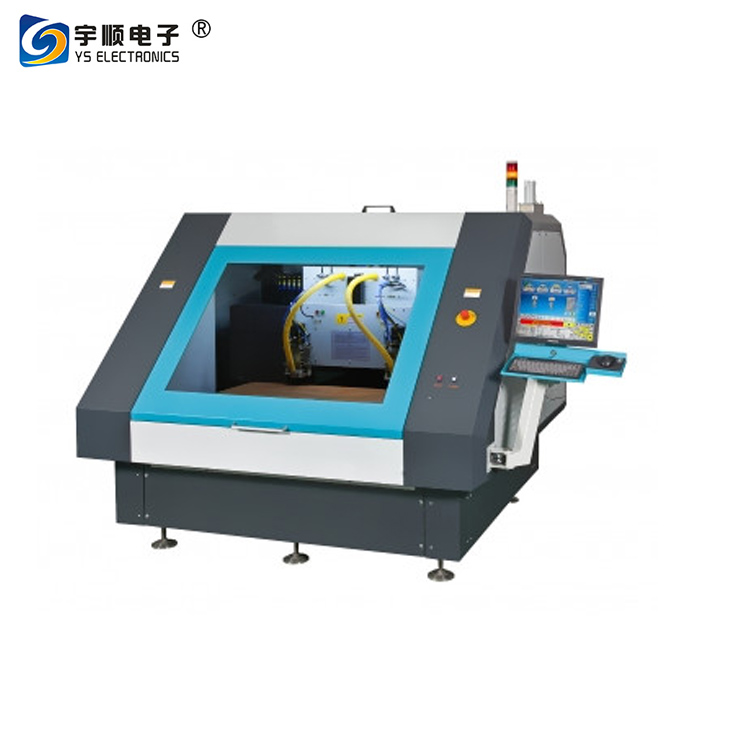

YS-1300-CNC cooling water pcb drilling machine good quality equipment china SUZHOU

Advantages:
1. X/Y/Z axis linear motors, the maximum velocities of X/Y axis are 100 m/min.
2. 200 rpm ultra-high speed spindle.

Main Parameter:

standard accessories:

working Demo：

Machine Application:

Application Materials: CNC PCB drilling/routing machine is good at drilling various materials: copper pcb, aluminum pcb, FR4 pcb, acrylic palte, copper plate, etc.

Main Parameter：

Velocity of X/Y axis	100m/min
Velocity of Z axis	50m/min
Spindle speed	200krpm
Drill size range	￠0.1－￠6.35mm
Tool magazine capacity	2×242
Positioning accuracy	±0.004mm
Repeatability accuracy	±0.0025mm
Drilling accuracy	±0.8mil（Under the condition of VEGA's test）
Table area	2× 560mm×700mm
Power requirement	3PH-AC380V＋PE,50/60HZ 6KVA
Air requirement	7-8bar
Cooling requirement	17℃-20℃
Temperature	22±2℃
Humidity	50%-65％
Noise	≤83dBA
Dimensions(L×W×H)	2530mm×2210mm×1620mm
Weight	5300kg
