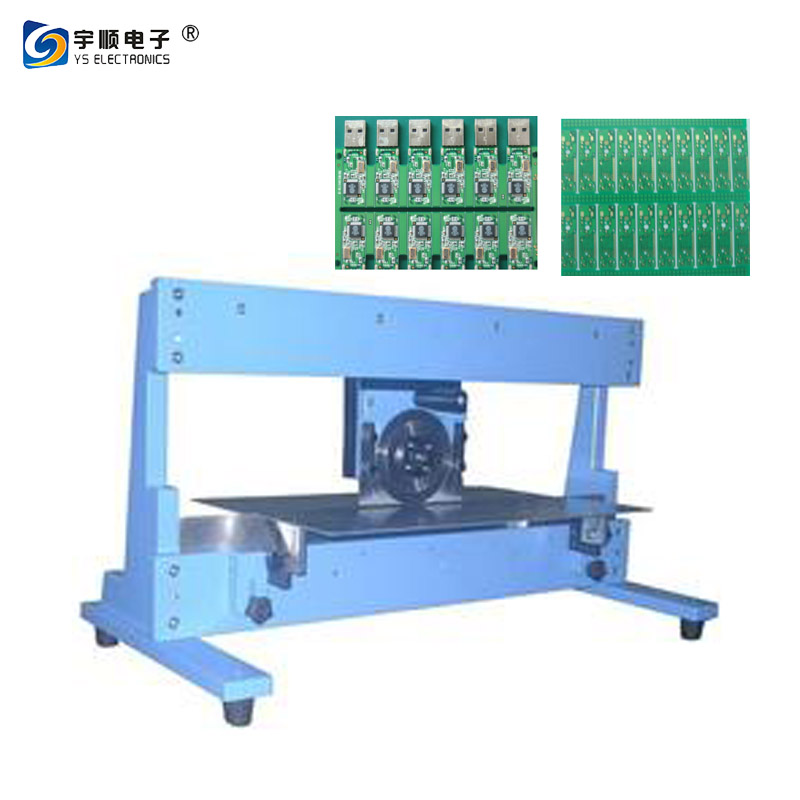

PCB Separator Suppliers -YSV-1M Size: 1027x400x436mm The separate size: 720mm Minimize Speed: Manual Minimize thickness: 0.6-3.5mm Machine Weight: 45kg 1.Round knife, manually cutting against lower linear knife, for reduced stress 2.Separate pre-scored PCB assembly without stress on either PCB or component 3.One touch programming of cut length with digital display 4.Separating speed is adjusted by a rotary knob 5.Handle Intermittent scoring or cut-outs 6.Board with projected component can be cut precisely 7.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable 8.Optional PCB conveyor belt to remove finished board 9.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out FEATURES: To avoid welding spot cracking and deceasing physical strength during cutting process. PCB remain stable when V-CUTTING,can make sure personal safety when moving back and forth. Introduced Siemens PLC controller,easy to operate and high relibility. Cutting principle is based on data convension. Apply to all kinds of V-CUT PCB board. |
