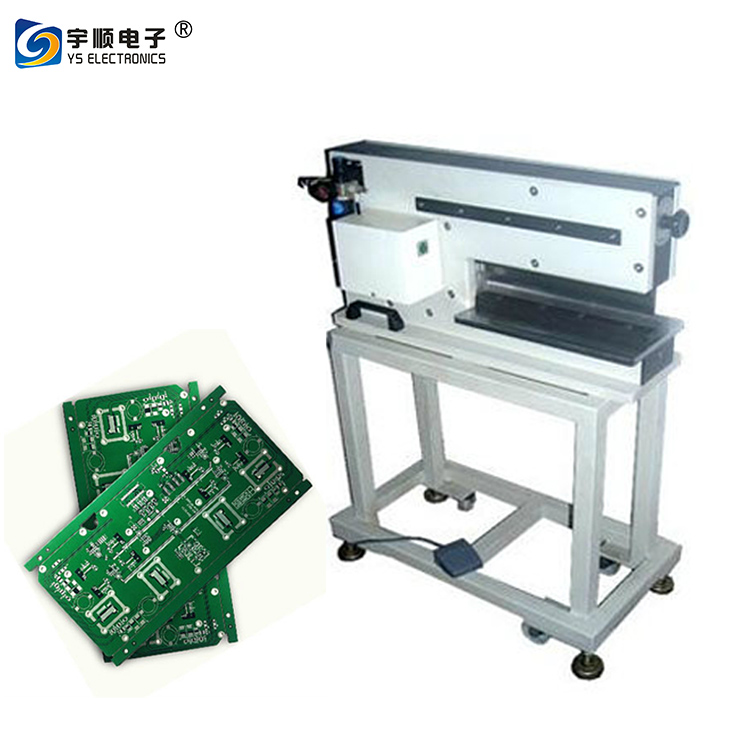

PCBA scoring v-cut pcb separator -YSVC-2 Max. PCB shearing length 330mm(Can custom made) PCB shearing thickness 0.3-3.5mm Voltage and Power 110V/220V 10W Working air pressure 0.5-0.7Mpa PCB shearing speed due to operator skilled level PCB shearing machine size 620*230*400mm PCB shearing machine weight 165kg PCBA scoring v-cut pcb separator -YSVC-2 1.Pneumatically driven and electromagnetic valve control. 2.Shearing process without vibrations due to pneumatic drive unit . 3.Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely. 4.Shearing operation is that operator stamps the foot pedal to shear PCB. 5.Highest components near the v groove of PCB can be up to 70mm. 6.The minimum distance is allowed to be 0.5mm between V groove and the electronic components. 7.Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine. Straight Knife PCB separator machine- Pneumatically driven and electric control. All-purpose V-CUT PCB Separator Straight Knife PCB separator machine- Pneumatically driven and electric control The machine is pneumatically driven and electric control. The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process. Due to the special design of the knives also boards with high components placed close to the edges can be separated safely. Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove. This enables boards of less than 1 mm thickness to be separated safely and without creating stress. Features 1, No vibration during the process to prevent damage to precise PCB 2,Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine, low friction design is applied. 3,Lower knife height adjustable, the front and real portion can be adjusted separately. No thin plates are required after re-sharpening the knife. 4,Operation and maintenance can be done also by unskilled personnel |
