Specification:

1.Maximum board length: unlimited
2.Board thickness:0.2-5.0mm
3.Plate feeding speed: 300-500mm/s
4.Blade material:SKD11
5.Working temperature: 10-35℃
6.Storage temperature:-20-50℃
7.Voltage: 230V
8.Dimension : 2160mm*570mm*1050mm


Features:

• The machine adopts the computer screen control with a counting device, which you can use
to preset the processing production. And the space of cutting tool is visible on the screen.
• It can cut many boards with multiple sets of knives work at the same time.
• The knife flywheel is adjustable as a whole from 0 to 5mm
• The distance between knives is regulable as well, applying to pcb with width from
15mm to 20mm.
• The blade is made of imported SKH51 high speed steel material, which is durable and
have a long service life.
• It is convenient to adjust the cutting speed through rotary knob.
• No limits of the cutting length.
• Thickness range of pcb: 0.2-5.0mm
• With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
• The machine adopts multiple blade to separate boards with simple operation and
high efficiency, fitted for batch production.

Our multi group multi blade pcb cutting machine advance:

1.Can cutting thickness is 0.2-5mm
2.The minimum cutting length can achieve 100mm.

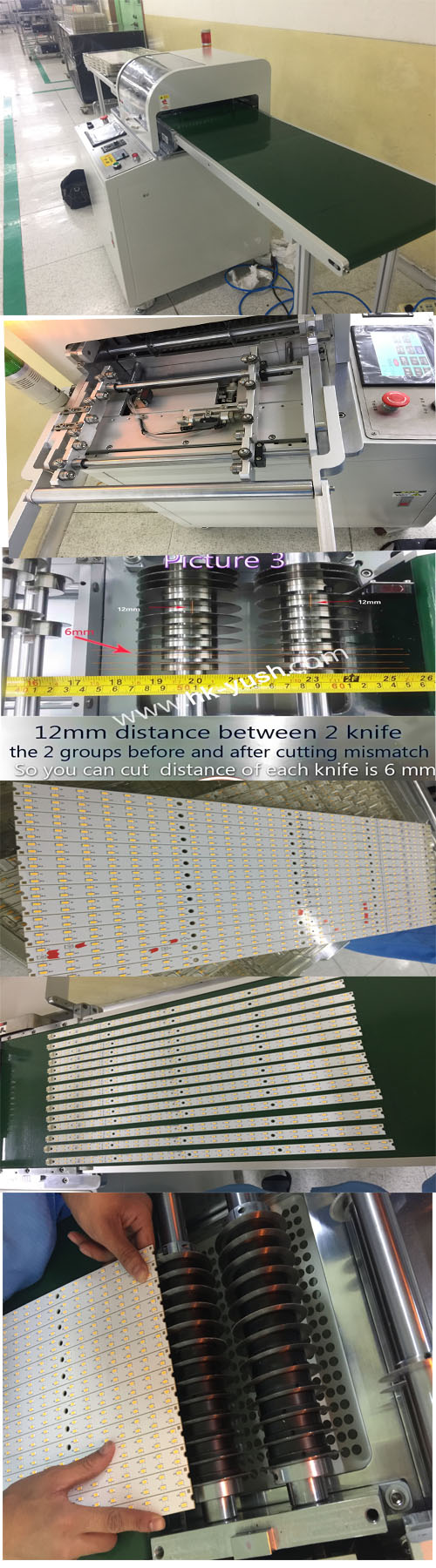

3.The minimum cutting small plate width can achieve 4mm(staggered cutting, see picture 3).
I absolutely sure that you can't find such PCB cutting machine in other place.
