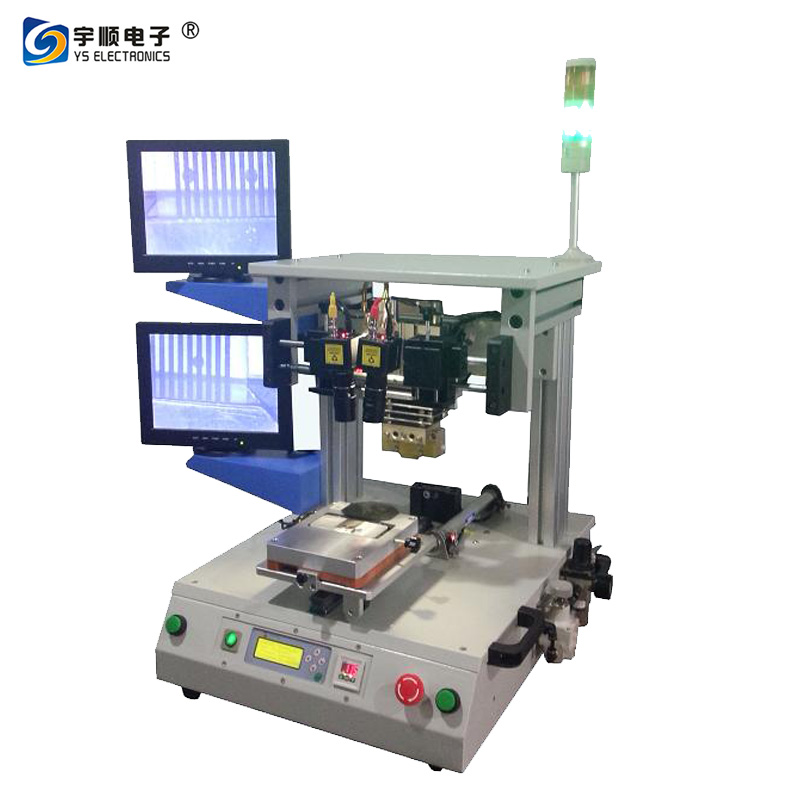

1. Features
1. Because of different products, heating rate for the tuning
2. Titanium alloy head to ensure that the average temperature, heating up fast and long service life
3. Pressure head with adjustable levels of design, to ensure that the assembly pressure average
4. Temperature of NC precision, clear
5. With digital pressure meter, can be preset pressure range
2. Technical parameters
1. Machine size: 590×640×620mm
2. Work size: Max 200*260mm
3. Work environment: 10-60℃, 40%-95%
4. Welding pressure: 1~20kg
5. Temperature setting: RT ~ 500 + / - 5 DEG C.
6. Hot-pressing time: 1~99.9s
7. Hot pressing precision: pitch0.2mm
8. Work pressure:0.6-0.8Mpa
9. Power: AC220V±10% 50HZ,2300W
10. Set up: Two section
11. Thermode material: titanium alloy
12. Jig: 1
12. Machine weight: 62kg
