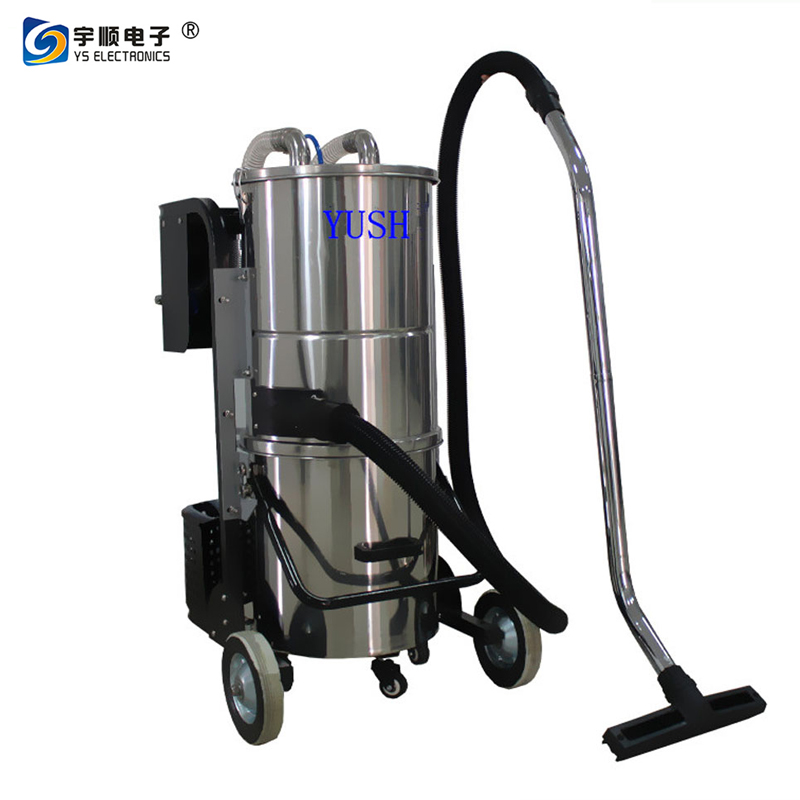

Product Characters:
1,Three-phase electric, independent industrial-grade turbocharged vacuum pump, in line with UL&CE and other international certification.
2,Stainless steel barrel and metal frame are solid and durable.
3,HEPA filtration system.
4,Cyclone separation structure reduce the dust filter.
5,Manual filter shaker can remove star dust quickly
6,Separate barrel is easy to dump.
Applications:
YS5510 Can absorb: nails, iron, steel, gravel, sand, cement dust, solid-liquid mixture and a small amount of liquid or viscous substances such as, for machinery manufacturing, metal processing, electronics, ceramics, chemicals, food, medicine and other kinds of processing sites, and production lines supporting.
Technical parameters:
|
Technical parameters: |
||
|
Technical Specification |
Unit |
YS5510 |
|
Voltage |
V |
5500 |
|
Power |
W |
380 |
|
Barrel capacity |
L |
100 |
|
Inhalation caliber |
MM |
50 |
|
Filtering accuracy |
UM |
3 |
|
Main filter area |
CM2 |
25000 |
|
Air flow |
M3/H |
450 |
|
Noise |
DB |
75 |
|
Vacuum suction |
MBAR |
320 |
|
Cable length |
M |
5 |
|
Weight |
KG |
165 |
|
Dimensions |
M |
1040#640#1260 |
