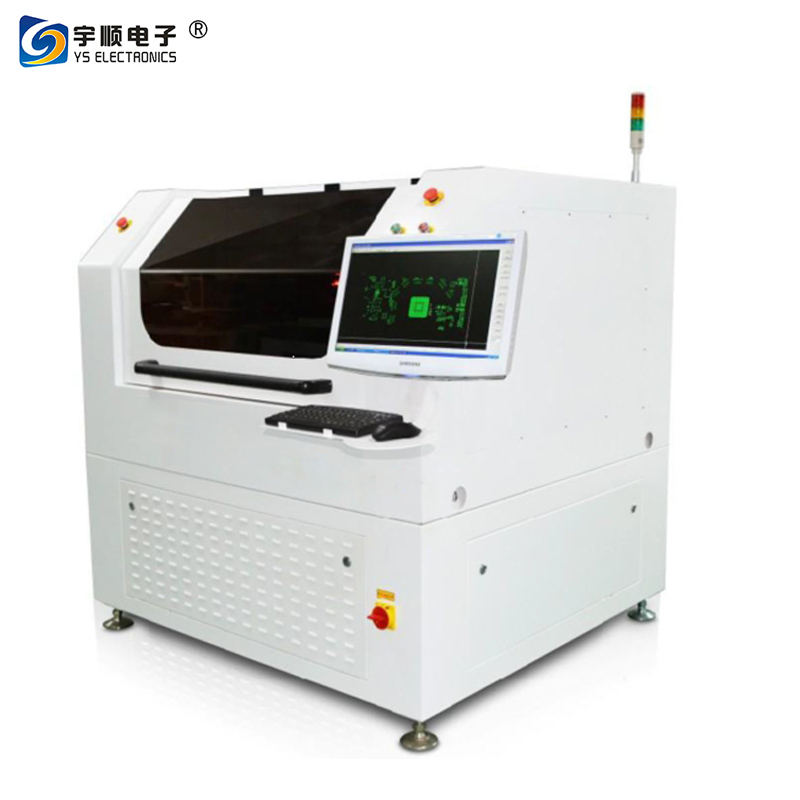

Product specifications:
1. Size(L*W*H) 1480mm*1360mm*1412mm
2. Weight 1600 KG
3. Power AC220V / 3KW
4. Laser source All solid-state UV lasers with a wavelength of 355 nm
5. Laser power 10W light (US original import)
6. Material thickness ≤1.0 mm
7. Machine precision ±20 μm
8. Platform positioning accuracy ±2 μm
9. Platform repeatability ±2 μm
10. Cut the format 440mm*380 mm
11. Focus spot diameter 20±5μm
12. Ambient temperature / humidity 20±2 ℃/＜60 %
Machine body marble
13. Galvanometer system CTI US original import
14. exercise system Full Closed Loop AC Linear Motor System
15. Motion control system PMAC(USA Delta Tau)
16. Necessary hardware and software Includes PC and CAM software
