feature:
1.High efficiency:It merely needs a few minutes to make a piece of PCB.
2.Safety :Enclosed Work Area ;Door Interlock Sensors ;Emergency Stop Button
specifications
| I. Hardware |
|
| System models / types | Windows XP Professional |
| Overall |
|
| FootPrint (LxWxH) | 800mm*850mm*1700mm |
| Weight (Approximate) | 150KG |
| Adjustable machine footings (for height) | 60~110mm |

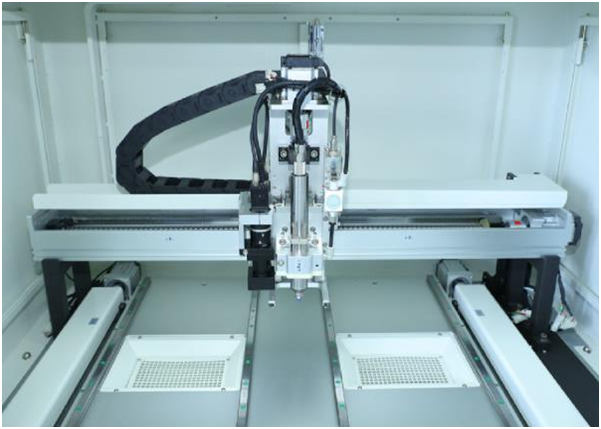

| Manipulator |
|
| Manipulator Motor | Panasonic MINAS A5 series |
| Manipulator Repeatability | 0.001mm |
| Axis configuration |
|
| Maximum Axis Travel (X,Y,Z) | 400mm*650mm*50mm |
| Work station |
|
| Board Positioning | Fixture positioning, thimble universal positioning, vision correction |
| Loading/Unloading | manual |
| Routing Range | 320mm*320mm |
| Panel Thickness | 3mm |
| Fixturing |
|
| Rigid Fixturing | Universal thimble & anti-static fixture |
| Top Clamp | Using hole positioning |
| Spindle Motor |
|
| Power | 100W |
| Max. speed | 60000rpm/min |
| Cooling | Natural cooling and air-cooled |
| Router bit size | 3mm*3mm |
| Tool change | Use Special wrench |
| Routing capability |
|
|
|
|
| Max routing speed | 100mm/s |
| Repeatability | 0.02mm |
| Vacuum System |
|
| Power | 0.75KW220V Single-phase motor |
| Filtration | Vertical and horizontal |
| Utilities |
|
| Power | 1.5KW AC220V |
| Air supply | 4~5KG/cm2 |
Our advantage:
1.we can do the designs according to the customers' requirement
2.we can offer you the high quality & reasonable price
3.we can offer your a good after-sell service .
4.we have strong professinal design team
5. promptly delivery. small order is welcome
