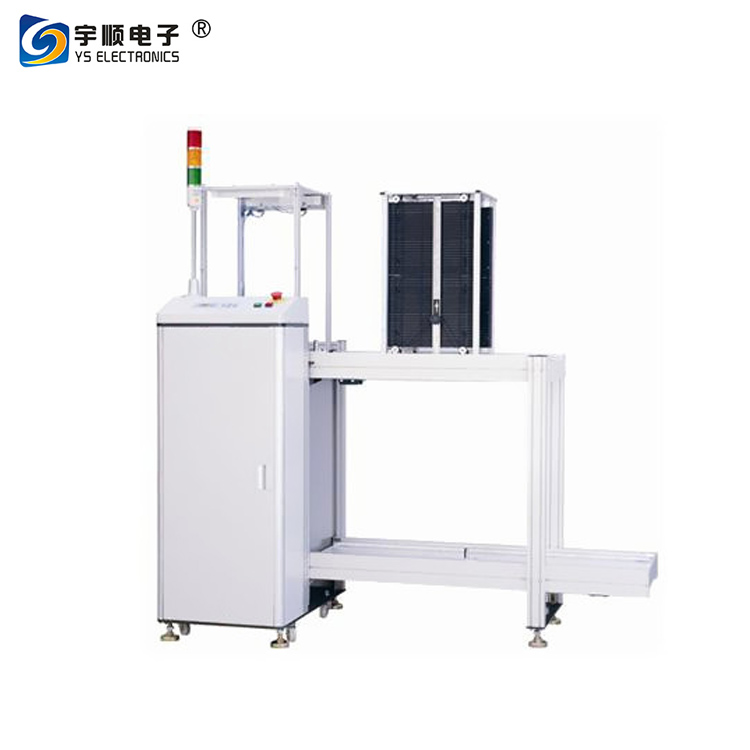

SMT Auto PCB loader and unloader-YS-3525
Product Name : UN-Loader
1) Strong , firm and stable design .
2) Userfriendly membrance control panel .
3) Top &bottom pneumatic& clamps to secure magazine rack.
4) No PCB break guaranty during loading & unloading .
Technique Parameter :
|
Description |
This unit is used for unloading of PCBS . |
|
Time Feed PCB |
Second 6 Approx |
|
Magazine change over time |
Approx 30 Seconds |
|
Power Soure &Consumption |
100-230 VAC (Specify) .1ph , 300VA max |
|
Air pressure &Consumption |
4-6 bar . 10Ltr/min max |
|
Conveyor Height |
910±20mm (or specify) |
|
Conveyor Direction |
L –R / R-L (Option) |
|
PCB thickness |
0.4mm min |
|
No of magazine |
Upper conveyor ,1 magazine / Lower conveyor , magazine. |
|
Indexing Pitch |
1-4 (10mm pitch) |
Unit :mm
|
Model |
YS-3525 |
YS-4533 |
YS-539 |
YS-3546 |
|
Effective PCB size (L*W)~(L*W) |
(50*50)~(350*250) |
(50*50)~(455*330) |
(50*50)~(530*390) |
(50*50)~(530*460) |
|
Dimension (L*W*H) |
1000*1200*1200 |
1110*1360*1200 |
1185*1480*1200 |
1185*1625*1200 |
|
Size of magazine (L*W*H) |
355*320*563 |
460*400*563 |
535*460*570 |
535*530*570 |
|
Weight |
Approx 140 kg |
Approx 200kg |
Approx 260kg |
Approx 300kg |
