Detailed Product Description
Work Air Pressure:: 0.5-0.7MPA Warranty: Free For One Year
Working Area:: 110mm X 150mm Tolerance Of Pressing:: 0.05MPA
Tolerance Of Temp.:: +2℃ Time Of Pressing:: 0-99s

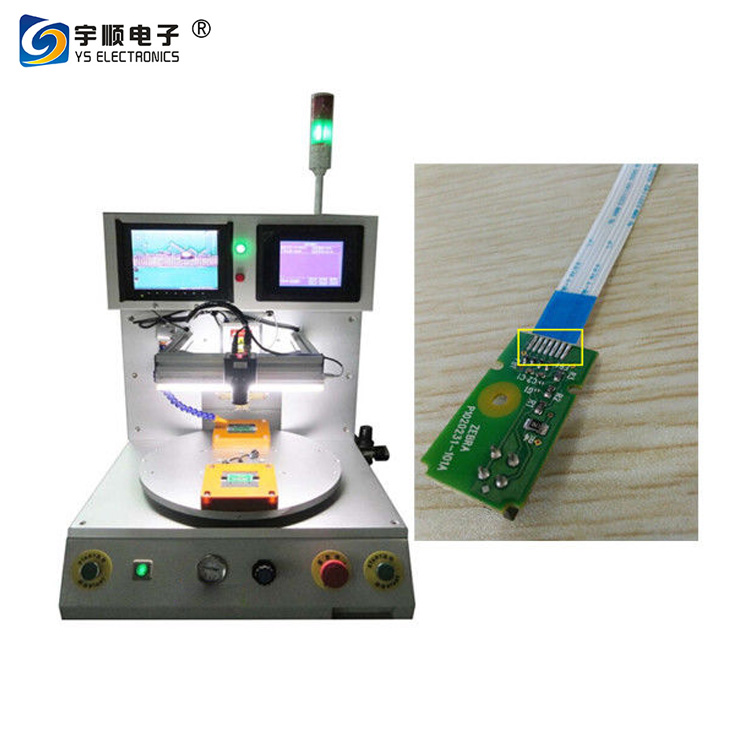

Thermode Head Soldering Machine Hot Bar Bonding Machine With CE Certification Feature

1. LCD display programmable pressure switch for precise force control.

2. Closed Loop PID temperature control with visible LCD display.

3. Each heating cycle is triggered by a real time pressure sensor.

4. Floating thermode ensures consistent pressure and heat transfer between thermode head and the parts to be joined.

5. Silicon rubber can be fitted in bonding Heat Seal Connectors between LCD and PCB.

6. Standard workpiece holder is mounted on a linear guideway and designed to allow for easy changeover and repeatable operation.

7. Parts registration is adjusted by micrometer and secured by vacuum lock. Optional CCD system for fine pitch component.

Specifications:

Model: CWHP-1A

Size: 500mm X 750mm X 910mm

Work Air Pressure: 0.5-0.7MPA

Working Area: 110mm X 150mm

Temperature setup: 0-400℃

Tolerance of Temp.: +2℃

Time of pressing: 0-99s

Tolerance of Pressing: 0.05MPA

Our best service

1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3..Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

4. Mature technique & forerunner to process makes high quality machinery.
