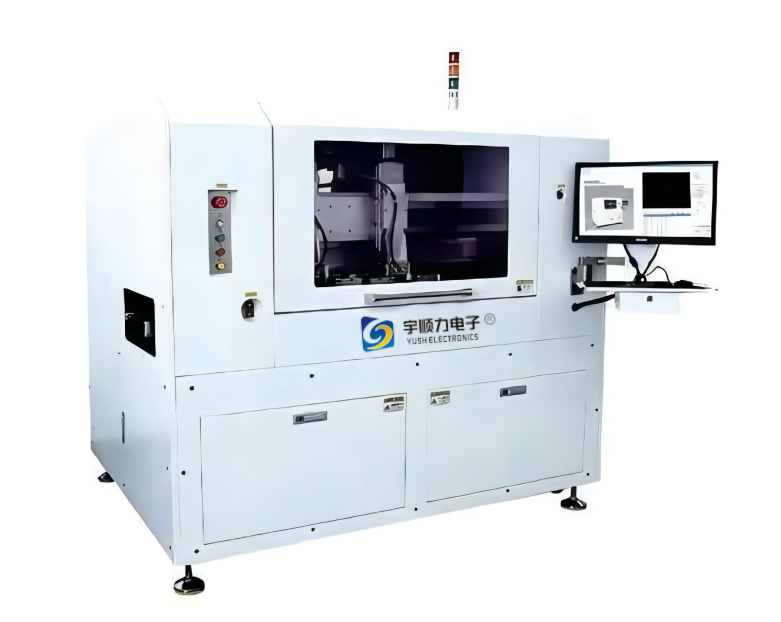

High Efficiency Inline PCB Router Machine with Break Blade Checking Function-PCB Router Machine

Products categories

PCB Router Machine

Location: Home -> Hot Products -> products -> PCB Router Machine -> High Efficiency Inline PCB Router Machine with Break Blade Checking Function

[View Origina] [BACK]

Introduce Features:：

1.High Quality PCBA Router Machine, On-line PCB Router, PCB depaneling router Machine, PCBA Separator, LED pcb Depaneling, For PCBA.

2.On-line PCBA Router is a High-Precision High-Speed Dual-Platform On-line PCBA Router, Which is Used in Smart Phones, Smart Wear, Smart Home, Tablet Computers, Automotive Electronics, Medical Devices, Aerospace, Military And Other Fields.

3.New CCD System,New Vision System Can Correspond To All Kinds of PCB Mark Point.With Visual Counterpoint Correction Function.

4.The Sensor Can Monitor The Milling Cutter State in Real Time, and effectively prevent the continuous operation of the cutter.

5. Using Germany KAVo 4033AC-ESD high speed spindle, cutting stress is greatly reduced, precision is high, inertia is small, and response is fast.

6.Ion air gun will remove static electricity on PCB surface and prevent dust from adsorbing on PCB.

7.Automatic loadering - picking and placing – cutting – unloadering pcba,unloadering solution can be option.

8.Adopt CNC special controller,high stability and strong anti-interference.

9.The separated vacuum dust collector adopts high efficiency motor with high suction and low noise.

10.Realize automation, save manpower and improve quality.

11.Automatic storage product information, automatic adjustment conveyor width, improve the speed of line change.

12.Loadering pcba the automatic splint function replaces the traditional cylinder and is more accurate.

13.Dual working platform to improve cutting efficiency.

14.Pcba can be cut and move at the same time to improve productivity efficiency.

15.Standard MES or ERP connection ports, real-time connection to the central database.

16.Bar code camera is option, which can scan barcode automatically and upload.

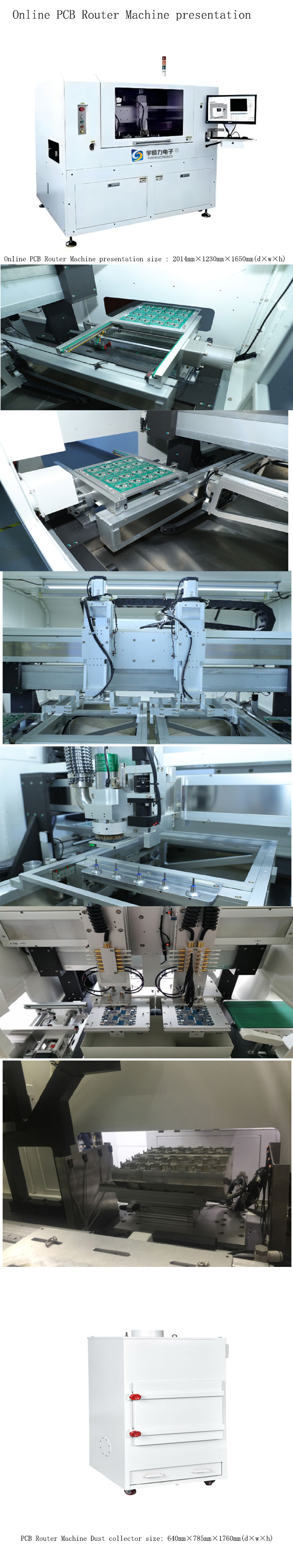

Specification:

YASTM-4C-
Model	YASTM-4C
Pcb Size(Special size optional)	300*350mm
xyz Drive Mode:	ac servo motor
Number of motion axes:	7 axes
Program teaching method:	color CCD image intuitive teaching input
Operation interface:	win7 window operation interface
Upper vacuum power:	2hp, lower dust collector power: 3hp (option 5hp)
Cutting Spindle Syco Tec 4033 AC-ESD (Germany):	max80000rpm (automatic tool change)
x-y ac servo speed:	0-1000mm/sec
z ac servo speed:	0-800mm/sec
x-y repeatability:	±0.02mm
Cutting accuracy:	±0.08mm
CCD camera calibration accuracy:	±0.01mm
Depaneling stress value:	below 300uε
PCB thickness	0.8~6.0mm
PCB board cutting thickness:	0.2mm-6.0mm
Main engine and dust collector voltage:	220v 1φ and 3φ
Power consumption:	3.5kva
Static elimination gun
Vision system:	high-resolution digital camera
Drive motor:	AC brushless servo motor
Mechanical pick and place arm:	anti-static vacuum nozzle
Feeding method:	rail conveying
Discharge method:	belt conveying or carrier output or rail conveying
Transfer method:	vacuum suction nozzle adsorption transfer
Flow direction:	left → right
Program backup:	usb interface
Control method:	dedicated controller
Dust collection cabinet size:	640mm×785mm×1760mm(d×w×h)
Dimension :	2014mm×1230mm×1650mm(d×w×h)
Host + dust collector weight:	1000 kg
Operation and Data Storage：	PC System
Dust Collector
Dust Collection Method	Vacuum cleaning
Air volume of vacuum cleaner	12~20cm3/min
Vacuum cleaner Dimension	750600620mm
Voltage of the Dust Collector	380V,50/60HZ, 1.2k
The structure of the vacuum suction cup to take the plate
Pick and place device	automatic loading and unloading (modular vacuum suction claw, vacuum device, can be independently controlled)
Transmission structure	X2 axis moves Z2, Z3 axis sucks, AC servo motor control.
Board taking speed	0-1000mm/sec (can be set)
