Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3.  Electronic component won't short circuit

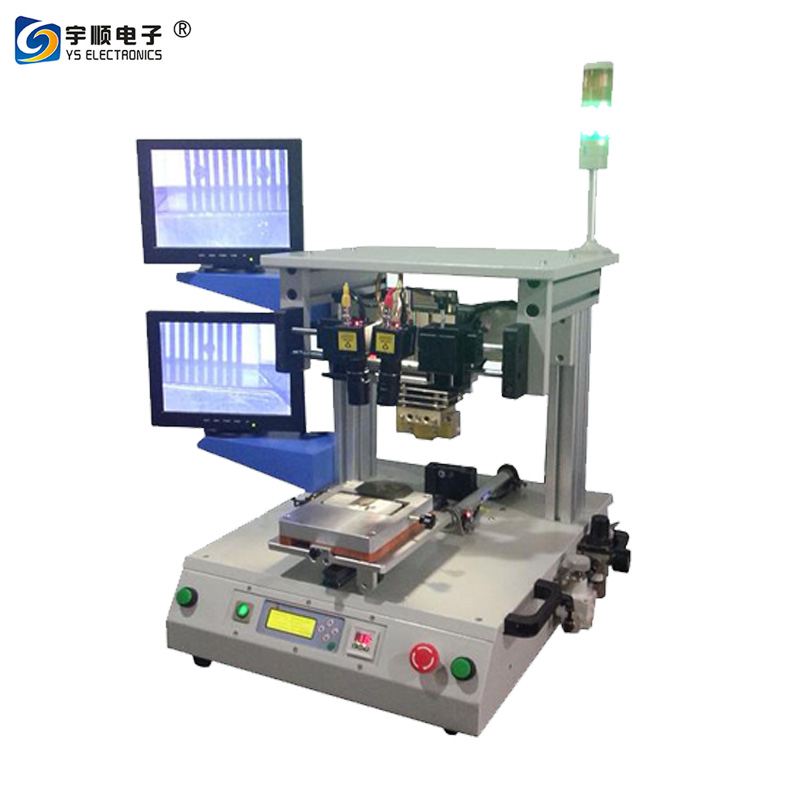

Detailed Product Description:
1.  For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)

2.  Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job!

Feature:

1. Closed Loop PID temperature control with visible LED display
2. LCD display programmable pressure switch for precise force control
3. Each heating cycle is triggered by a real time pressure sensor
4. Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined
5. Silicon rubber can be fitted in bonding Heat Seal Connectors between LCD and PCB
6. Standard workpiece holder is mounted on a linear guideway and designed to allow for easy changeover and repeatable operation
7. Parts registration is adjusted by micrometer and secured by vacuum lock
8. Optional CCD system for fine pitch component.
