Screw Driving Robot Quick Details

Place of Origin:	Guangdong, China
Brand Name:	YuSHunLi
Product name:	Assembly Line
Condition:	New
Core Components:	PLC, Engine
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works

Screw Driving Robot product description

Model	YSL-300X300	YSL-400X300	YSL-500X500	YSL-170X300		YSL-170X400	YSL-210X400	YSL-250X400	YSL-300X400
Stroke X	300mm	400mm	500mm	500mm		500mm	600mm	700mm	800mm
Stroke Y1	300mm	400mm	500mm	300mm		400mm	400mm	400mm	400mm
Stroke Y2	no	no	no	300mm		400mm	400mm	400mm	400mm
Stroke Z	100mm	100mm	100mm	100mm		100mm	100mm	100mm	100mm
Material size	300*300	400*300	500*500	170*300		170*400	210*400	250*400	300*400
Rated speed					500mm/s (X-Y-Z) ,Max:1000mm/s
Screwer No.					Default 1 PC(optional 2 PCS)
Drive					Precision stepping motor/servo motor+synchronous belt/ball screw
Motion mode					Point to point; line; circle
Positioning accuracy					+- 0.02(mm)
Program					Control Teaching Box/PC
Screw feed mode					air blow
Screw feed speed					60PCS/Min
Screw driver					SDL series Servo motor screw driver(optional others)
External					RS232
Screw size					M1.0-M5.0
Screw length					4-16mm
Torque range					0.03-45kgf.cm
Lock speed					1.5s/ PCS
Program storage					100groups/1000points per group
Power					2*220V50Hz
Air					0.5Mpa
Dimension L	580mm	580mm	780mm	680mm		680mm	680mm	680mm	680mm
Dimension L	520mm	620mm	720mm	620mm		720mm	830mm	930mm	1000mm
Dimension H	603mm	603mm	603mm	603mm		603mm	603mm	603mm	603mm
Weight	60kg	70kg	80kg	75kg		80kg	95kj	100kg	105kg

Screw Driving Robot Product description

The double electric screwdriver alternately locks the screws, with high efficiency and fast speed. It is possible to lock two types of screws with one product, and the two screws are completed alternately, and there is no need to lock and pay twice. Japan HIS0 electric screwdriver, precise control of torque, stable and durable. Special feeder, 12 years of experience in feeder production. Aluminum profile die-casting structure, solid, beautiful, high temperature and high precision. SCM controlled handheld box programming, simple and practical, complete functions, efficient use. Closed-loop servo motor, Taiwan silver guide rail, Germany Omron Optoelectronics, Japan three star belt, research and control drive, Hongbo switch, high configuration parts, durable.

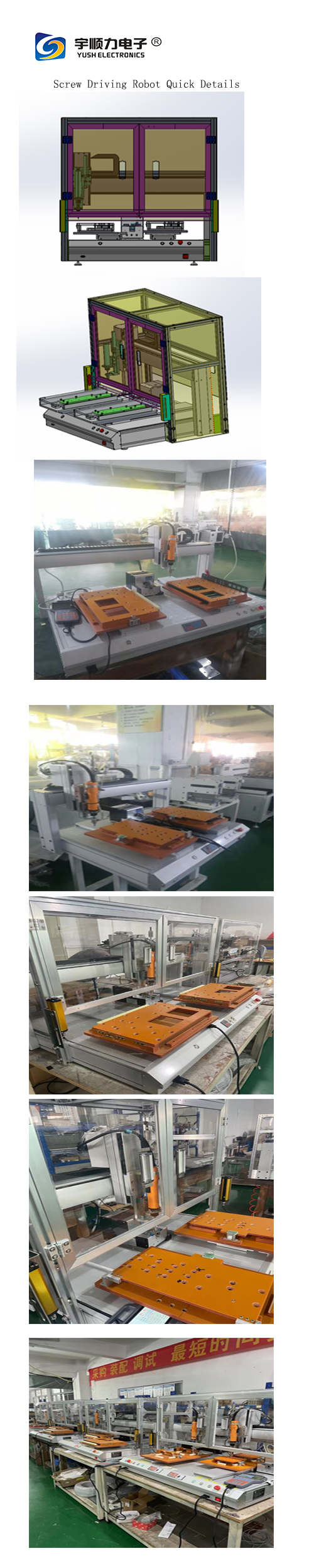

Details Images

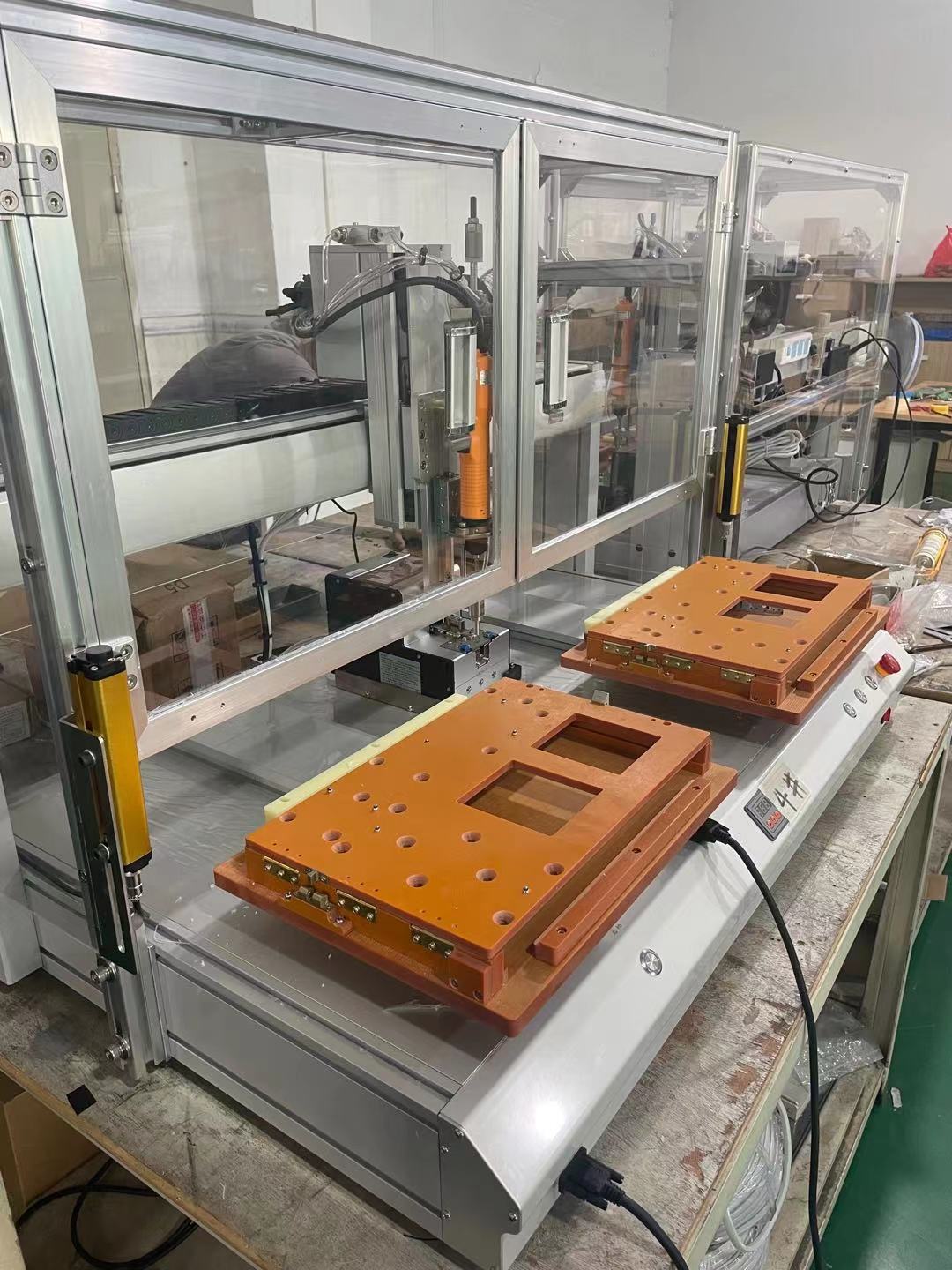

Main configuration.

1.Double Y-axis working platform , aluminum profilemodule structure

2.Manual type teaching programmable controller issimple and easy to usee

3.Japan imported HIOS electric screwdriver for accuratelock payment.

4.Z axis screw , laiwan silver guide rail

5.Closed loop servo motor

Features:

1. Strong versatility The coordinate lock screw machine is controlled by PLC, and the screwing action is performed point by point according to the position of the screw hole of the product. N sets of locking schemes can be edited and stored to realize automatic screw screwing of a variety of products.

2. Efficient production The equipment has functions such as automatic screw feeding, automatic screwing, screening, and detection, which can greatly simplify the production process and save labor and man-hours.

3. precise positioning Hongjie coordinate lock screw machine passed X) Y\Z three-dimensional control, positioning accuracy ±0.02mm, higher production standards, greatly reduced product defect rate, and high-speed assembly line operation.
