Model

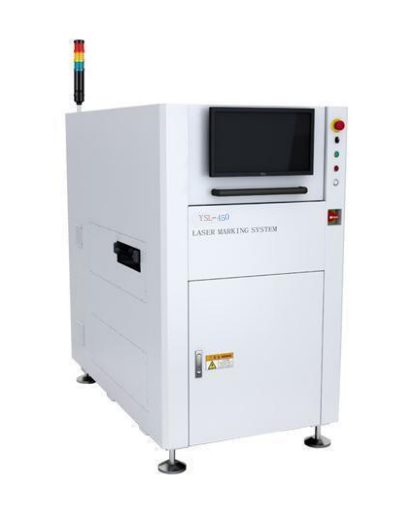

YSL-450 System

Laser type

CO2/GR/UV/Fiber

Repeat Positioning Accuracy

±25μm

Positioning System

CCD＋MARK Positioning

Code Detection System

CCD Online Detection

Maximum PCB size

450*400mm

PCB Thickness

0.5mm-5mm

PCB Pass height

UP;25mm DOWN;25MM

Anti warping pressing plate system

Support(Upperand Lower Splint)

Transfer direction

L-R/R-L/L-L/R-R

Track Width Adjustment

Automaticity

Double side Engraving

Monorail

Laser object/type

Character

English Uppercase lowercase.Figure,Katakana、Chinese Characters Symbol、User Save Text (Up to 50 Types)

Bar code

CODE39、CODE128、ITF、NW-7、JAN(EAN)/UPC

QR code

QR Code x Micro QR Code _s IQR Code s Data Matrix _x GS1 Data Matrix

Graphic Data

VEC*4、DXF、BMP、HPGL、JPEG、Al、EPS

Smoke Treatment method

Automatic Smoke Purification System

Software

Software Interface

Chinese and English optimization interface

Poka-yoke Function

Automatic identification of PCB reverse/reverse/wrong materials

Selective Printing

Dentify BAD MARK ,do not perform well,antomatically skip

Barcode data source

SHOPFLOW,MES,IMS,PMS,Database、USB flash disk、This machi ne sets the barcode rules figure、Time serial number

System Connection Function

Can connect SHOPFLOW,MES,IMS,PMS and othe management systems

Database

Each Model can be archived,directly tunde when generated again

Engraving Angle

0-360°

Others

Voltage

220V50/60Hz

Gas source

>0.5MPa

Environmental Requirement

5~40°C ,30~80Rh

Safety Precautions

2.5KVA

Equipment Weight

700kg/850kg/1000kg

Equipment size

1000*1550*1600mm（L/W/H）

Laser specification

Laser type

CO2

Flber

UV

GR

MOPA

Laser wavelength

10.6μm

1064nm

355nm

532nm

1064nm

Laser power

5W/8W

20W/30W/50W

3W/5W/10W

10W

20W/30W/50W

Laser cooling mode

Air cooling

Air cooling

Water-cooling

Water cooling

Air cooling

Laser level

Class4

Spot size

CO2;0.11mm/Fiber:007mm/UV:0.04mm/GR:0.06mm

Way to work

Laser immobilization

Laser Irradiation Range

CO2:50mmx50mm/Fiber:150mmx150mm/UV150mmx150mm/GR:150mmx150mm
