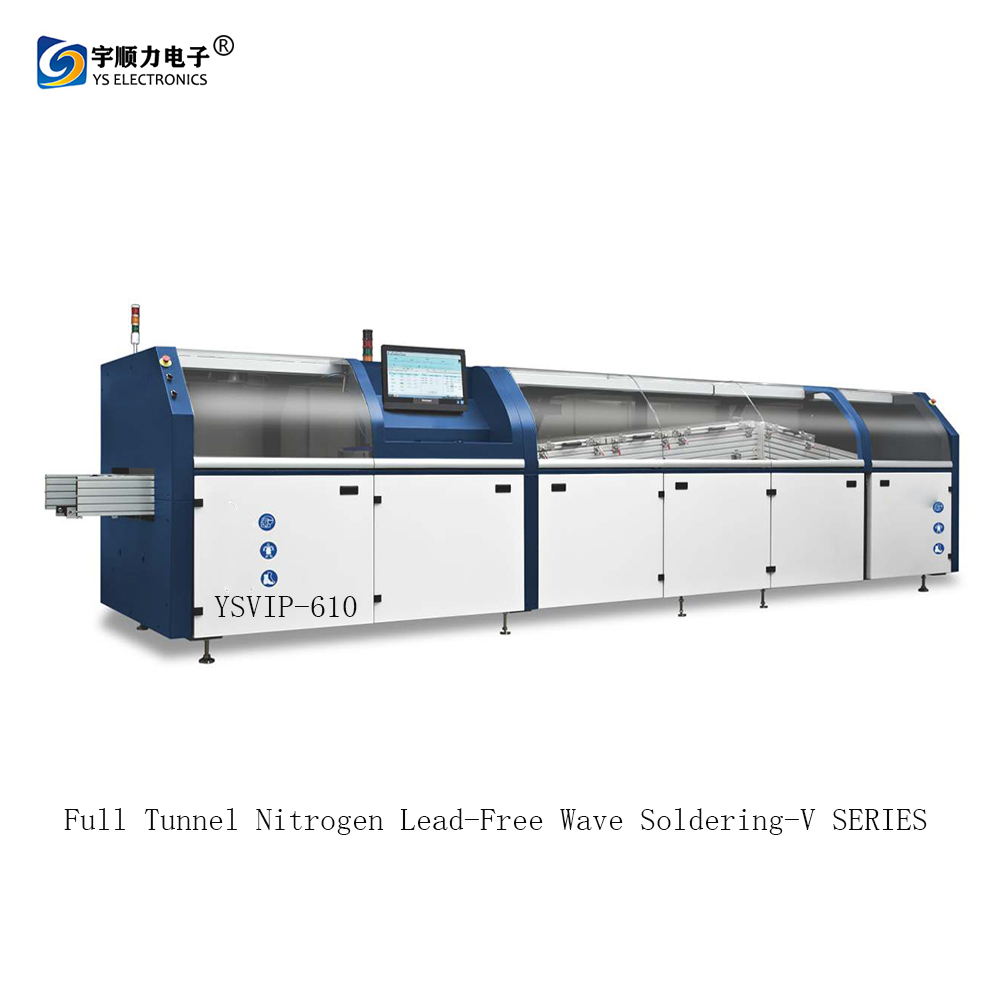

YSVIP-610-V Selective Soldering System
Series
1. Tunnel type nitrogen charging mode
2. Improve welding quality by 70-90%
3. Sav ing flux 70-80%
4. Sav ing tin slag 70-90%
5. Reduce equipm ent maintenance time by 60-90%
6. Mixed model production improves equipment utilization rate by 40- 80%
7. Save electricity by 20-40%
8. Saving 70-90% of fixture c lea ning cost
YSVIP Comparison table of technical parameters of YSVIP wave soldering series
|
Dimensino (LxWxH) |
7150x1605x1650mm 7150x1865x1650mm |
7150x1865x1650mm |
|
PCBtransport direction |
L--->R (R --->L Optional) |
|
|
M, a n Voltage |
3P5W380VAC, 50/60HZ 140A 3 P5W380VAC, 50/60HZ 140A |
3P5W380VAC, 50/60HZ 145 |
|
Powersupply requirement s |
80KW |
|
|
Air power requirements |
0.3- 0.7MPa |
|
|
Total power |
70KW |
70KW |
|
Normalpower consumption |
17.5KW |
17.5KW |
|
Control method |
PC+PLC |
|
|
Preheaitng method |
Hot air { infrared / spotlight optional | |
|
Preheating fanspeed conrtolmode |
Promise frequaney contral | |
|
Numberof preheating zones |
4 |
|
|
Pre- heat zone length |
2420mm |
|
|
Pre- heat temperature |
Raam temperature -280 ℃ | |
|
Pre- heat temperature control |
PID +SSR mode | |
|
Wave running mode |
Mechanical pump | |
|
Tin furnace heat pipe power |
1.5KW*12 |
1.5KW* 12 |
|
Tin furnace capacity (tin specific gravity 7 .5 ) |
650KG ~ 750KG |
820KG |
|
T,n furnacelimit withstandtern伪 rature |
MAX: 300°C |
|
|
Tin furnace limit the use of temperature |
MAX: 280'C |
|
|
Tin furnace control mode |
PID+SSRmode |
|
|
Peak drive power |
1/2HPx2 3P 220VAC 1/2HP+1HP 3P 220VAC |
1/2HPx1 1HPx1 3P 220VAC |
|
Crest ightadiustmentmethod |
Frequency adjustment | |
|
Tin furnace heating time |
150MIN Set temperature 260°C |
180M IN Set temperature 260 °C |
|
PCB transfer speed |
0- 1800mm / m in |
|
|
PCB board width range |
120-350mm 120-510mm |
120-610mm |
|
PCB boord haight |
Top: 120mm Bottom: 24mm |
|
|
PCB inlet transport height |
750 土 0mm |
|
|
Transport guida inclination |
The standard is fixed at 5.5, and can be adjusted by about 50 specifications |
土 0.5° |
| Transpcrt motor power |
90W 3P 220VAC |
|
| Transport motor speed cantrof mc |
frequency control |
|
| Nitrogen consumpticn |
15m / h100ppm 以下 |
|
| Nitrogen gas source prassure |
0.5-0.8MPA |
|
| Nitrogen gas source oxpgen conitent |
70PPM |
|
| Numbor of nitragen flcw metcrs |
2 |
|
| Flux flovw |
10 - 100ml/ MIN |
|
| Speray preSsure |
0 .25MPA - 0 .5MPA |
|
| Exhaust fan |
380VAC 750W |
|
| Suction pipe diameter |
|
|
