Technical advantages of automatic solder paste printing machine


1: Customized system solutions to meet individual needs, flexible options for various production applications.

2: Professional-grade high-quality mechanical design, professional-grade 03015 (metric) solder paste printing process support, 14 years of high-quality machinery manufacturing experience.

3. Easy to operate, minimize downtime for line change. Minimal maintenance requirements and maintenance costs.

4. Use intelligent software tools for process monitoring and tracking at any time.


YSL technical training advantages


1. Provide expertise in system design, operation and process flow

2. Professionals to help you improve production efficiency

3. Comprehensive training plan

4. Personality training and workshops

5. Internal training

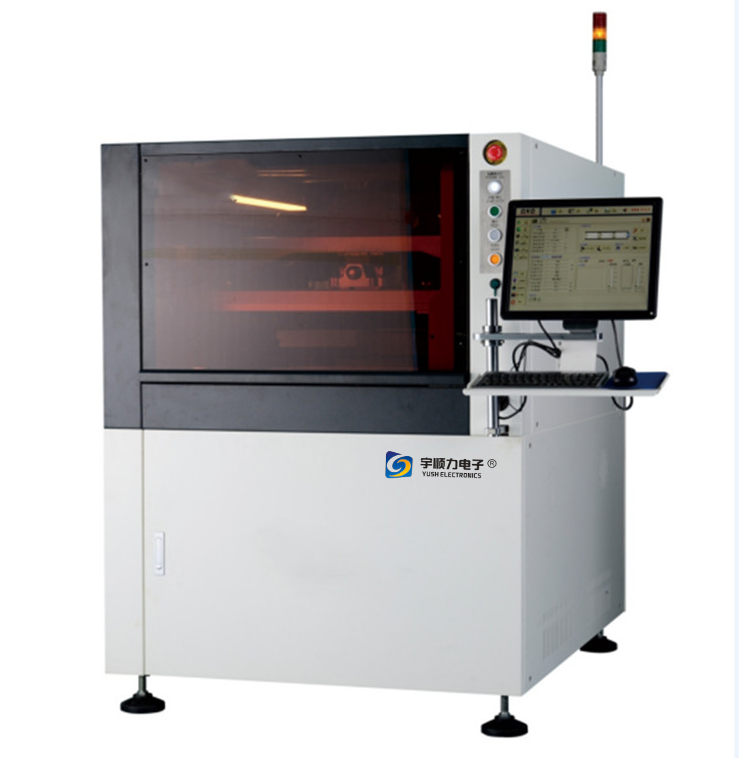

Automatic solder paste printing machine 0

Automatic solder paste printing machine Function introduction


1. CCD digital camera system:


Brand-new optical path system (1.3 million digital camera)--uniform ring light and high-brightness coaxial light, together with infinitely adjustable brightness function, make all types of Mark points can be well identified (including unevenness Mark point), suitable for tin-plated, copper-plated, gold-plated, tin-sprayed, FPC and other types of PCBs with different colors.


Automatic solder paste printing machine 1


2.Rail positioning system


National utility model invention patent Patent No. (ZL 2005100371991.6), detachable, programmable flexible side clip device, for flexible boards, warped PCBs, and unique top flattening.


Through software programming, it can be automatically stretched without affecting the tin thickness.


Automatic solder paste printing machine 2


3. Brand new scraper structure design


Through the new scraper structure of the slide rail and the cylinder, the operation stability is improved and the service life is prolonged.


Automatic solder paste printing machine 3


4. Steel mesh detection system


By compensating the light source above the stencil, and using CCD to check the mesh of the stencil in real time, it can quickly detect and judge whether the stencil is blocked after cleaning, and perform automatic cleaning, which is a 2D detection of the PCB board. kind of supplement.


Automatic solder paste printing machine 4


5. Bottle type automatic tinning and automatic solder paste detection function
Automatically add solder paste at regular and fixed points to ensure the quality of solder paste and the amount of solder paste in the stencil. So as to ensure the printing quality of customers and improve productivity.


The sensor manages the amount of solder paste on the stencil, enabling stable quality and long-term continuous printing. Improve productivity


Automatic solder paste printing machine 5


6. Solder paste rolling detection function


1. The stencil solder paste thickness detection system is mainly composed of a laser distance sensor installed behind the squeegee beam.


2. The working principle is mainly that before the machine leaves the factory, we will set the distance from the laser to the sensor. When the diameter of the rolling solder paste is less than ф12mm, the software will alarm and prompt whether to add solder paste or continue production. If the machine simultaneously Configured with automatic tinning function, then when the amount of tin is less than the set value, it will automatically add solder paste (as shown above).


3. The laser distance sensor adopts the built-in CMOS laser sensor of Keyence's amplifier. It adopts a stainless steel casing, which has excellent visibility and is easy to operate. It only needs to press three times to complete the setting, and anyone can easily do it. Adjustments and settings.


Automatic solder paste printing machine 6


7.Bottle type automatic tinning and automatic solder paste detection function
Automatically add solder paste at regular and fixed points to ensure the quality of solder paste and the amount of solder paste in the stencil. So as to ensure the printing quality of customers and improve productivity.


The sensor manages the amount of solder paste on the stencil, enabling stable quality and long-term continuous printing. Improve productivity


Automatic solder paste printing machine 5


8.New multifunctional interface


concise. Easy to operate. Real-time temperature and humidity monitoring function


Automatic solder paste printing machine 8


9.All screw rods and slider guides of the machine are produced with original foreign products, and imported to ensure accuracy and stability


Automatic solder paste printing machine 9


10.Leading Industry 4.0 Compatibility


Through the automatic upload or output of machine status and parameters, it provides a strong guarantee for customers' Industry 4.0 intelligent production. It can realize the seamless connection with the customer's MES system and achieve high product traceability; intelligent management and control of equipment maintenance.


According to the realization of on-site management, the use rights of engineering personnel at all levels are allocated by themselves.


Automatic solder paste printing machine 10


Automatic solder paste printing machine parameters


Substrate processing
Maximum substrate size (XxY) 450*340mm
Minimum substrate size (XxY) 50*50mm
Substrate thickness dimension 0.4~6mm
Maximum substrate weight 3Kg
Substrate edge clearance 2.5mm
Overboard height 17mm
Transmission height 900 ± 40mm
Transfer speed 1500mm/s(Max)
Transfer method One-section transport rail
Substrate clamping Automatic retractable upper tablet
Flexible side clip
Vacuum suction
Printing parameters
Maximum printing area (XxY) 450*340mm
Printing release (Snap-off) 0-20mm
printing mode Single or double doctor blade printing
Scraper type Rubber scraper/steel scraper (angle 45/55/60)
Printing speed 6~200mm/sec
Printing pressure 0.5~10Kg
Template frame size 370*370mm~737*737mm
Cleaning method Enhanced vacuum adsorption
Dry, wet, vacuum three modes
Cleaning back and forth
Substrate Support Method Magnetic Thimble
Contour block
Manually adjust the jacking platform


Image Field of View (FOV) 8*6mm
Datum point type Standard shape reference point
Pad
Hole
Camera system Vision system for top/bottom imaging
Digital camera
Geometry match positioning
Performance
System alignment accuracy and repeatability ±12.5 microns@6σ,Cpk≥2.0
Actual solder paste placement repeatability ±18 microns@6σ,Cpk≥2.0
Repeat accuracy of actual solder paste printing position based on third-party test system (CTQ, Germany) verification
Printing cycle <7.5 sec (excluding printing and cleaning time)
Equipment
Power requirements AC: 220±10%, 50/60HZ, 2.5KW
Compressed Air Requirements 4~6 Kgf/cm2
Air consumption About 5L/min
Working temperature -20℃~+45℃
Working environment humidity 30%~60%
Machine height (remove tri-color light) 1510(H)mm
Machine length 1156(L)mm
Machine width 1400(W)mm
Machine weight Approx: about 1000Kg


Why choose YSL?


Dongguan Yushunli Automation Equipment Co., Ltd. (YSL) can provide the most professional solder paste printing solution system for the electronic manufacturing industry (SMT). As a high-end quality automatic solder paste printing machine manufacturer, it has always led the trend of technological innovation in the assembly and production of electronic components. For a long time, YSL has won the trust of countless "heavyweight" customers in the fields of automotive electronics, medical technology, aerospace technology, industrial electronics and military industry with its excellent quality.


Technology is our passion. YSL pursues excellent product quality and is also committed to providing excellent customer service. From China to Europe, or from Singapore to the United States - we aim to perfect all sales and service networks. Dedicated to provide you with professional support covering the world! Do you have any special inquiries about YSL's printing system, assembly or process? Our responsibility does not stop at sales, after purchasing YSL equipment, we will keep the closest contact with you and respond to all your needs quickly and promptly. We will do our best to ensure on-time delivery and perform installation and maintenance services of the highest standard. In addition, our experts are at your service 24 hours a day, ready to provide you with application support to keep production running smoothly.
