Equipment performance parameters
| Model | YSL-LED |
| PCB Max Size | 890X510mm (Two-stage support 1200-1500mm) |
| PCB Min Size | 50X60mm |
| PCB Thickness | 1~6mm |
| Transport Height | 900 ± 40mm |
| Transport Direction | L-R / R-L |
| Product weight | ≤5KG |
| Conveyor Edge Distance | ≥9mm |
| Bottom Of Compinent Height | ≤10mm |
| Lifter Methhod | Side Lifter |
| Conveyor Stage | Two-section transport rail |
| I/O lnterface | SMEMA |
| Cleaning System | Vacuum cleaning Glue |
| CCD FOV | 13x10mm |
| visual system | CCD Vision Positioning System |
| Machine Specifications | |
| Position Accuracy | ±50μm@3sigma |
| Repeat Position Accuracy | ±25μm@3sigma |
| Operating system | Windows 7 |
| Air supply | 4~6 Kgf/cm2 |
| Power supply | AC:220±10%, 50/60HZ ,1.5KW |
| Control Method | PC Control |
| Machine Dimensions | 1600(L) x 1258(W) x 1490(H)mm |
| Machine Weight | Approx: 1000Kg |
Functional configuration
| The standard configuration | Air pressure stabilization device | option configuration | Microbalance |
| Vacuum cleaning device | wipe system | ||
| Low hydraulic level detection | Scan the code online | ||
| XYZ axis calibration platform | Dual valve synchronization | ||
| head heating | MES system | ||
| Pneumatic valve | Piezo valve |

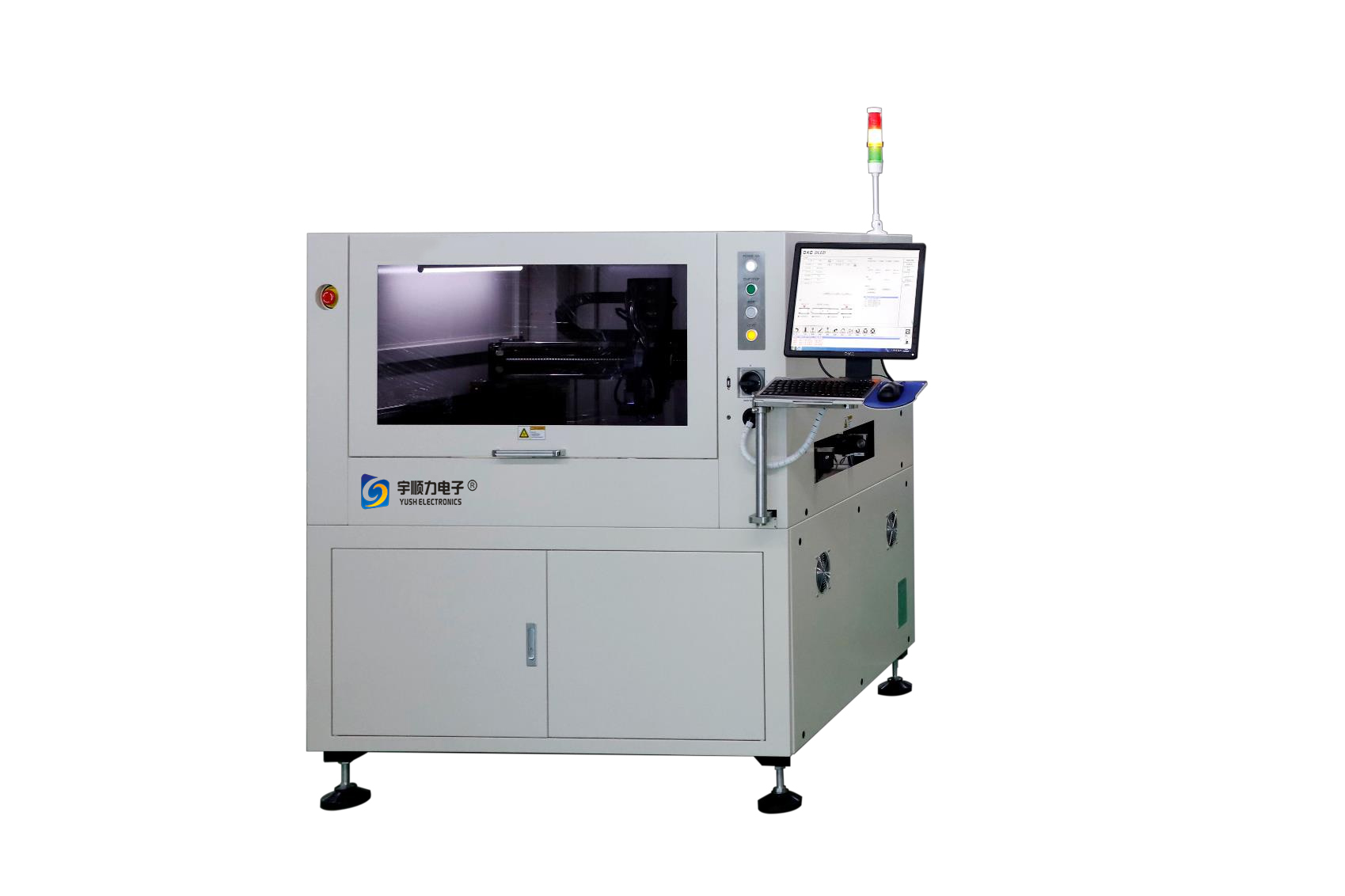

Dimensions and Appearance
Testing report
| Test items | Repeat accuracy X | Repeat accuracy Y | Positioning accuracy X | Positioning accuracy Y |
| Specification | ―25μm~25μm | ―50μm~50μm | ||
| standard | 3.335 | 3.593 | 2.692 | 1.995 |
| CPK measured value | passed | passed | passed | passed |
Repeatability
Test method: The machine simulates production by itself, generates CPK data, CPK test software reads and analyzes the results, and generates graphics
Test speed: CCD X: 800mm/s
CCD Y: 800mm/s
Image acquisition delay: 110ms
Transport speed: 20mm/s
Test environment: machine level
Temperature: 24℃
Humidity: 60%
Application field
