Image and optical system


Using uniform ring light and high brightness coaxial light ,with promise brightness adjustment function,then all types of Mark points can be well recognized (Including the rugged Mark points),applicable for tin plating, coppering ,gold plating,tin spraying,FPC and other types PCB with of different colors.With YUSH patent mathematical model,able to ensure high accuracy.

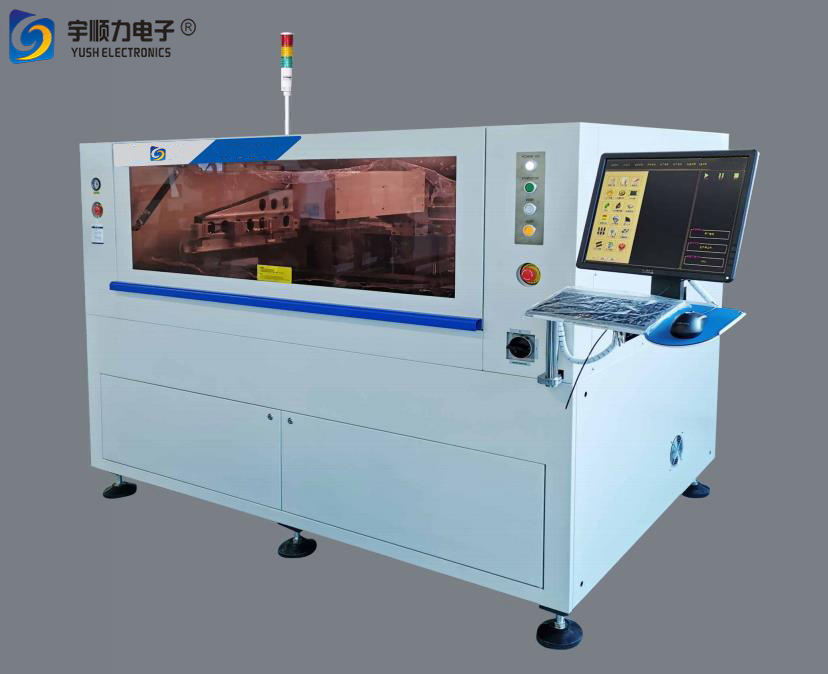

Fully Automatic Solder Paste Printer


Chinese /English Operating Interface


The machine adopts windows XP/win 7 operating interface with YUSH user friendly software.Chinese/English selectable,Menu/Operating Journal/Breakdown Record /Breakdown Diagnosis/Error Analysis/Light Alarm etc.


Fully Automatic Solder Paste Printer


2D Solder paste Print Quality Inspection and Analysis System


The 2D system immediately deteces solder paste deposition defeces such as deviation,lack paste,miss paste,paste joint etc,and guarantees print quality.


Fully Automatic Solder Paste Printer


Adjustable Stepping Motor-Programmable Floating Print-heads


Unique long platform and track fixed design, to ensure stable support PCB.Short squeegee horizontal priniting,pressure stability ,save solder paste.


Fully Automatic Solder Paste Printer


Electric Control System


Safe and tidy distribution of electric circuit and gas circuit Electric circuit and gas path are positioned vertically at the two sides and the back of machine,which is easy to check and repair.


Fully Automatic Solder Paste Printer

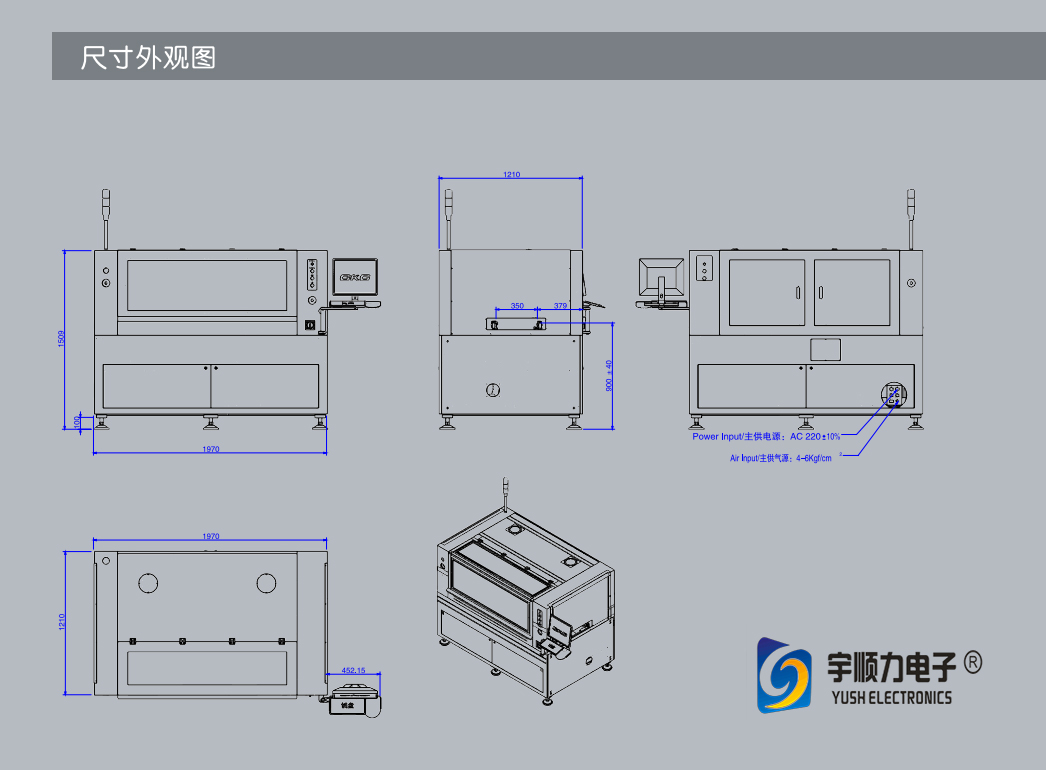

Specifications:


Substrate processing
Maximum board size 900*350mm
Minimum board size 80*50mm
Board thickness 0.8*6mm
Maximum board weight 10KG
Board edge clearance 3.5mm
Board height 15mm
Transport height 900±40mm
Transport speed 1500mm/s(MAX)
Transport direction One stage
Board clamp Patented over the top clamping/ Side Clamping
Support System Magnetic Pin /Support Block/Automatic UP-Down table
Vision
CCD FOV 10*8mm
Fiducial mark types Standard Fiducial mark shape /Pad /Hole
Camera System Look uo/down optics structure
CCD digital camera
Geometry pattern match
Machine Performance
Repeat Position Accuracy ±0.015mm
Print Accuracy ±0.03mm
Based on the third party test system(CTQ)Verify the actual solder paste printing position repeat precision
Cycle time <15sec



Fully Automatic Solder Paste Printer
