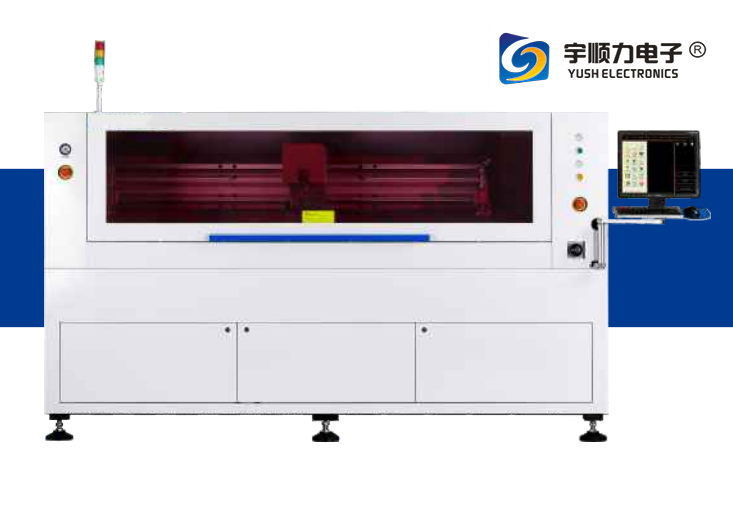

1500*350mm Fully Automatic Solder Paste Printer


Image and optical system


1500*350mm Fully Automatic Solder Paste Printer


Using uniform ring light and high brightness coaxial light ,with promise brightness adjustment function,then all types of Mark points can be well recognized (Including the rugged Mark points),applicable for tin plating, coppering ,gold plating,tin spraying,FPC and other types PCB with of different colors.With YUSH patent mathematical model,able to ensure high accuracy.


1500*350mm Fully Automatic Solder Paste Printer


Chinese /English Operating Interface


The machine adopts windows XP/win 7 operating interface with YUSH user friendly software.Chinese/English selectable,Menu/Operating Journal/Breakdown Record /Breakdown Diagnosis/Error Analysis/Light Alarm etc.


1500*350mm Fully Automatic Solder Paste Printer


2D Solder paste Print Quality Inspection and Analysis System


The 2D system immediately deteces solder paste deposition defeces such as deviation,lack paste,miss paste,paste joint etc,and guarantees print quality.


1500*350mm Fully Automatic Solder Paste Printer


Adjustable Stepping Motor-Programmable Floating Print-heads


Unique long platform and track fixed design, to ensure stable support PCB.Short squeegee horizontal priniting,pressure stability ,save solder paste.


1500*350mm Fully Automatic Solder Paste Printer


Electric Control System


Safe and tidy distribution of electric circuit and gas circuit Electric circuit and gas path are positioned vertically at the two sides and the back of machine,which is easy to check and repair.


1500*350mm Fully Automatic Solder Paste Printer


Specifications:


Screen Frames Min.Size(mm) :720*300mm
Max.Size(mm):1800*750mm
Mask Clamping:Air Cylinder
PCB Max Size 1500*350mm
PCB Min Size 80*50mm
PCB Thickness 0.8-6mm
PCB Warpage Max.PCB 1%
Transport Height 900±40mm
Transport Direction L-R/R-L/L-L/R-R
Transport Speed 1500mm/s(max),Program Control
Transport way One stage
Conveyor Width Adjustment Auto
I/O Interface SMEMA
PCB Location Support System:Magnetic Pin / Support Block / Automatic Up-down table
Clamping System:Slide Clamping
Print Speed 10-200mm/sec
Print Head Two independent motorised printheads
Squeegee Pressure 0.5-15kg (Program Control)
Squeegee Type Rubber/steel Squeegee Blade (Angle 45°/55°60°)
Print Mode One/Twice
Cleaning System Drops of rain type cleaning device,dry, wet modes
CCD FOV 10*8mm
Vision Look Up/Down Optics Structure /CCD /Geometry Pattern-Match
Adjustment X:±10mm/Y:±10mm/θ:±2°
Repeat Position Accuracy ±10μm
Printing Accuracy ±23μm
Cycle Time <12sec
Product Changeover Old Program:<5mins/ New Program:<10mins
Operating system windows XP/WIN7
Power supply AC:220±10%,50/60HZ ,3KW
Air supply 4-6Kgf/cm²
Control Method PC Control
Machine Dimensions 2570(L)*1210(w)*1509(H)mm
Machine Weight Approx:About 1500KG



1500*350mm Fully Automatic Solder Paste Printer
