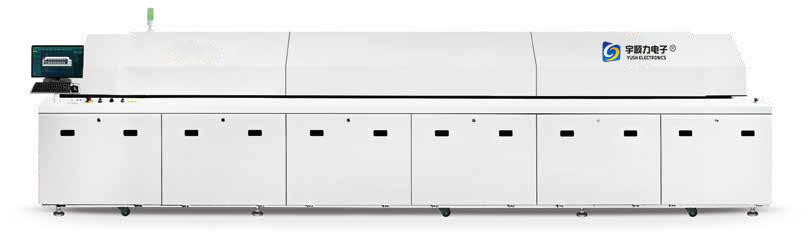

U series reflow soldering-Hot Bar Soldering Machine

Products categories

Hot Bar Soldering Machine

Location: Home -> Hot Products -> products -> Hot Bar Soldering Machine -> U series reflow soldering

[View Origina] [BACK]

1.High heat energy, low energy consumption, high power motor matching wind wheel, theoretical and practical verifification; under the same conditions set, can ensure the small and large components to achieve the minimum heat absorption difffference, and achieve the best thermal balance;

2.The latest thermal insulation technology and the new furnace structure design can effffectively reduce the furnace surface temperature and reduce the heat loss;

3.Imported PLC program controller, stable and reliable performance, high precision of temperature control and curve repetition;

4.Double-sided guide rail with special hardening treatment, strong and durable, repeatable use, cost saving up to 50%;

5.Online maintenance of rosin recycling system, modular design, convenient maintenance, reduce maintenance time;

6.Patented hot air system, hot air convection conduction more effiffifficient, faster heat compensation;

7.Built-in real-time monitoring system of furnace temperature, which can automatically generate furnace temperature curve (option);

8.Intelligent data can be traced and uploaded to MES system.

U series reflow oven main specifications
Model No	YSL-808UA/YSL-808UN	YSL-810UA/YSL-810UN	YSL-812UA/YSL-812UN
Heating System
Heating Zone	8 heating zones,16 heating modules	10 heating zones,20 heating modules	12 heating zones,24 heating modules
Heating Length	2950mm	3670mm	4390mm
Cooling Type	Three cooling zones:forced air cooling/water cooling
Outlet Exhaust Diameter,valume	2-φ145,Exhaust demand 15-20m³/min*2
Conveyor System
Product Width	min50mm-max400mm
Conveying Direction	L→R,R→L
Conveyor belt height	900±20mm
Fixed Rail Side
Conveyor Type	Chain + mesh with synchronous conveying
Cmponent Height	+30mm-25mm/Clearance above 30mm,Clearance below 25mm
Conveying Speed	300mm-2000mm/min
Control System
Power Supply	AC30 5W 380V 50/60HZ
Total Power	57KW	71KW	89KW
Start UP Power	30KW	35KW	40KW
Running Power	7.5KW	9.5KW	11.5KW
Temperature Range	Room temperature 320℃
Control type	PC+PLC Control System
Rail Width Adjusting Mode	Electric+Manual
Temp Control Accuracy	±1℃
PCB Temp Deviation	±1℃
Data Storage	Process Data and status record
Power Outage Protection	Equipped with UPS
Operation Interface	Windows Chinese simplified,English online free switching
General
Dimension(LWH)	558014501620mm	630014501620mm	702014501620mm
Weight	2300-2500KG	2700-2900KG	3100-3300KG
Color	Bright wrinkled white

Technical requirements:

1,the customer to install control valve to control the import and export of the exhaust volume up to 145; .

2, each up to 145 entrance hole exhaust volume control in 15-20M³/min;

3, the main power supply: 3 380V diameter AC fifive wire, the main power line diameter of more than 35mm².

U series reflow soldering 4

Modular structure for easy cleaning and maintenance. The front and rear air return design can effectively prevent the influence of airflow between the temperature zones and ensure accurate temperature control. Long life high performance hot air motor. Inverter control, hot air motor can be adjusted at high speed.

U series reflow soldering 5

Manual + electric width adjustment structure design, equipped with emergency manual transmission structure to prevent power failure from burning out the PCB in the chamber

U series reflow soldering 6

High stability control system with powerful functions

U series reflow soldering 7

Special width adjustment and transmission structure design ensures stable and reliable PCB transmission, and the chain adopts anti-jamming plate chain.
