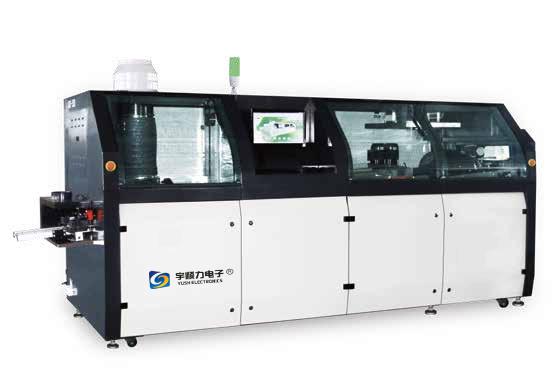

UX series oven is based on customer demand and adopts modular, digital and humanized design. With superiority in function, performance, stability, reliability, security, maintainability,operability and humanization,it doesn't only reduce the operating cost, but also provides qualified products for quality,quantity and production with strong guarantee.It can be described as the "peak" work in the fifield of Wave soldering products, and the preferred "brand products" for customer investment.

UX Series Lead-free Wave Soldering Machine (new high -end machine) 0

Integrated spray fluxer unit(selective spray device is optional)

UX Series Lead-free Wave Soldering Machine (new high -end machine) 1

Drawer type and modular structure preheating zones

UX Series Lead-free Wave Soldering Machine (new high -end machine) 2

Cast iron soldering pot with special anti-corrosion coating

UX Series Lead-free Wave Soldering Machine (new high -end machine) 3

Manual width adjustment with digital display

UX Series Lead-free Wave Soldering Machine (new high -end machine) 4

Solder pot electric/manual lifting in and out

UX Series Lead-free Wave Soldering Machine (new high -end machine) 5

1.The transportation system adopts section floating structure, effectively prevent guide rail deformation, new titanium alloy double hook finger,non-stick tin, direct linkage buffering, aluminum guide rail, more smooth.

2.Spray unit integrated module design, through the fast connector connected with the machine; adopts new precision nozzle, which can achieve

high efficiency, uniform atomization coating effect and meet the process requirements of water flux.

3.The preheating system adopts micro-hot air + infrared heating tube, three-section preheating temperature zone, drawer type modular design,flexible selection of mixed preheating mode, uniform and stable temperature.

4.Forced air cooling system (Water chiller is optional).

5.The solder pot system adopts special material for pot, and anti-corrosion treatment for inner surface. (New nozzle fixed mode, easy to remove and assembly; the solder pot temperature control precision is ±2℃; solder pot electric/manual lifting in and out, easy to operate.

6.Windows 7 operating system, Chinese/English intelligent software, with parameter setting, saving, reuse, remote monitoring functions. Process

profile/data automatic storage function, temperature profile test function.

UX Series Lead-free Wave Soldering Machine (new high -end machine) 6

01 Buffer system

02 Flux supply system

03 Exhaust fan

04 Flus spray system

05 LCD

06 Pre-heater

07 Solder pot lifting unit

08 Dual wave solder pot

09 Cooling system

10 Angle adjustment controller

11 Finger cleaning system

12 Conveyor system

Model No.	YSL-350UX	YSL-450UX	YSL-610UX
Dimension: LWH(mm)	435014801750	435015801750	435017401750
Weight	Approx.1800kg	Approx.1950kg	Approx.2150k
Power Supply	3PH 380V 50HZ	3PH 380V 50HZ	3PH 380V 50HZ
Start up Power	32KW	32KW	45KW
Normal Running Power	Approx.8KW	Approx.8.5KW	Approx.11KW
Control System	PC+PLC
Spraying movement	Step motor
Spraying Pressure	0.2Mpa~0.4Mpa
Flux Flow Control	Option
Auto Flux Filling	Standard
Exhausting	Top exhaust+Side exhaust
Exhausting Pipe Diameter(mm)	Φ250
Exhaust Capacity	30m³/min
Preheating Mode	Hot air convection/IR
Temperature Control Mode	PID
Preheating Zone Quantity	3
Preheating Zone Length(mm)	1800
Preheating Temperature Range	Room temperature~200℃
Warm-up Time(min)	Approx.12min(setting: 150℃)
Preheating Blower Motor	250W 3PH 220 VAC
Width(mm)	50~350	50~450	50~610
PCB Conveying Direction	L→R( Option:R→L)
Conveying Speed(mm/min)	500~1800
Conveying Height(mm)	750±20
Available Component Height(mm)	Top120 Option:240 Bottom15
Conveying Speed Control Mode	Closed loop stepless speed regulation by inverter
Finger	Spring Pressing Finger；D-40 Type Finger；Double-hook Finger；Heavy type double hook finger(Options)		Heavy type double hook finge Option:Special jig for fixture
Conveying Angle	4~7°
Solder Pot Type	Mechanical
Solder Pot Material	Casting Iron
Wave Height Adjustment	Inverter: Digital Control by PC
Cooling type	Air Cooling Option: Water cooling
Solder Pot Heating Power	13.5KW		18KW
Max Solder Pot Temperature	300℃
Solder Pot Capacity	Approx.480kg	Approx.550kg	Approx.640kg
Wave Driving Power	180W*2 3PH 220 VAC
Solder Pot Warm-up Time	Approx.150min(setting: 250℃)
Temperature Control Mode	PID
Finger Cleaning System	Brush
