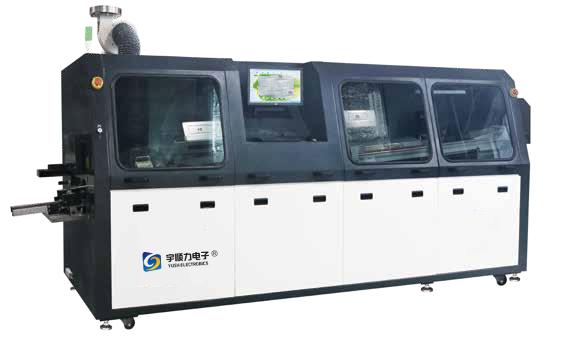

SS series is a fully upgraded wave soldering with enhanced modular. digital and humanized design to meet customer needs,With more perfect function, more advanced performance, further improved stability and reliability, the operation and maintenance is more convenient, and the customer operation cost is reduced more.

Built in spraying unit

Top exhausting and filtering System

Forced cooling system

Lead-free processing nozzle

Flexible combination of preheating system

Solder pot is motorized in/out/up/down

1.Conveyor: Direct buffering input structure. Stainless steel chain conveyor, durable and special design for aluminum alloy track.Adopt segment floating structure to prevent from deformation.

2.Pre-heating zones: Design for energy saving and removable modules (drawer design). Any combination of infrared and hot air convection.Use PID control to achieve ±2℃ accuracy. The temperature variation for pre-heating zone and soldering zone is less than≤5℃.

3.Flux spraying system: Managed by digital control. The motion of the spray nozzle is controlled by stepper motor.Flux supply is controlled automatically for optimized effect. Exhausting and filter system installed on the top.

4.The solder pot is made by cast iron with anti-corrosion ceramic coating equipped with two low flow rate nozzles.

5.Air cooling system: cooling rate 4-6 ℃ /s (adjustable).

6.PC+PLC control system. Windows7 operation system with Chinese/English operation interface. Processing profile and data auto saving function.Alarm for detecting the flux and solder level.

01 Buffer system

02 Flux supply system

03 Exhaust fan

04 Flus spray system

05 LCD

06 Pre-heater

07 Dual wave solder pot

08 Solder pot lifting unit

09 Cooling system

10 Angle adjustment controller

11 Finger cleaning system

12 Conveyor system

Model No.	YSL-350SS
Dimension: L*W*H(mm)	4350*1422*1750
Weight	Approx.1600kg
Power Supply	3PH 380V 50HZ
Start up Power	33KW
Normal Running Power	8KW
Control System	PC+PLC
Spraying movement	Step motor
Spraying Pressure	0.2Mpa~0.4Mpa
Flux Flow Control	Option
Auto Flux Filling	Standard
Exhausting	Top exhaust
Exhausting Pipe Diameter(mm)	Φ250
Exhaust fan power	750W
Preheating Mode	convection/IR emitter
Temperature Control Mode	PID
Preheating Zone Quantity	3
Preheating Zone Length(mm)	1800
Preheating Temperature Range	Room temperature~200℃
Warm-up Time(min)	Approx.12min(setting: 150℃)
Width(mm)	50~350
PCB Conveying Direction	L→R( Option:R→L)
Conveying Speed(mm/min)	500~1800
Conveying Height(mm)	750±20
Available Component Height(mm)	Top120 Option:240 Bottom15
Conveying Speed Control Mode	Closed loop stepless speed regulation by inverter
Finger	Spring Pressing Finger;D-40 Type Finger;Double-hook Finger;Heavy type double hook finger(Options)
Conveying Angle	4~7°
Solder Pot Type	Mechanical
Solder Pot Material	Casting Iron
Wave Height Adjustment	PC digital Control
Cooling type	Air Cooling Option: Water cooling
Solder Pot Heating Power	13.5KW
Max Solder Pot Temperature	300℃
Solder Pot Capacity	Approx.480kg
Wave Driving Power	180W*2 3PH 220 VAC
Solder Pot Warm-up Time	Approx.150min(setting: 250℃)
Temperature Control Mode	PID
Finger Cleaning System	Brush
