Four major improvements
1.Conveyor system:Structure with anti-wearing material for longer lifetime.
2.Preheating system: Optimized hot air circulation, the temperature is more stable and even.
3.Exhausting system:Adopt new concept, seperate design, easy for maintenance.
4.Built-in selective spraying unit(option): through synchronous belt, ball screw, linear guide rail for X and Y direction movement, the step motor will achieve local selection for spraying flux.

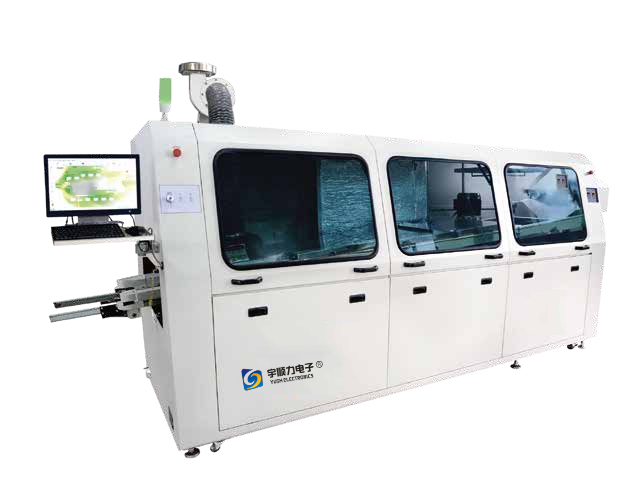

E Series Flexible Modular Lead-free Wave Soldering Machine 0


Built-in partial selective spraying device(Option)
E Series Flexible Modular Lead-free Wave Soldering Machine 1
Top exhausting and filtering System
E Series Flexible Modular Lead-free Wave Soldering Machine 2
Forced cooling system
E Series Flexible Modular Lead-free Wave Soldering Machine 3
Lead-free processing nozzle
E Series Flexible Modular Lead-free Wave Soldering Machine 4
Flexible combination of preheating system
E Series Flexible Modular Lead-free Wave Soldering Machine 5
Heavy-duty conveying system
E Series Flexible Modular Lead-free Wave Soldering Machine 6


1.Conveying system: Direct buffering structure.Special stainless steel chain conveying aluminum alloy rail unique design, durable;Transportation system: adopt segmental floating structure, effectively prevent guide rail deformation;
2.Preheating system: Adopts drawer type module with energy-saving design, infrared, hot air convection for any combination, PID temperature control mode, so that the temperature control accuracy reaches to be ±2℃, preheating area and soldering area temperature drop value ≤5℃;
3.Adopt precision control valve for digital regulation, convenient management. Nozzle movement is controlled by stepping motor.Flux automatic pressure supply, which makes the spray flow quickly reach saturation, top exhausting and filtration system;
4.The solder pot is made by cast iron with anti-corrosion ceramic coating equipped with two low flow rate nozzles.
5.Air cooling system: cooling rate 4-6 ℃ /s (adjustable)
6.PC+PLC control system. Windows7 operation system with Chinese/English operation interface. Processing profile and data auto saving function.Alarm for detecting the flux and solder level.
E Series Flexible Modular Lead-free Wave Soldering Machine 7
01 LCD
02 Buffer system
03 Auto-supplying Flux system
04 Exhaust fan
05 Flux spraying system
06 Pre-heater
07 Solder pot lifting unit
08 Dual wave solder pot
09 Cooling system
10 Angle adjustment controller
11 Finger cleaning system

12 Conveyor system


Model No. YSL-E YSL-450E YSL-610E
Dimension: L*W*H(mm) 4350*1420*1750 4350*1520*1750 4350*1690*1750
Weight Approx.1600kg Approx.1750kg Approx.1950k
Power Supply 3PH 380V 50HZ 3PH 380V 50HZ 3PH 380V 50HZ
Start up Power 33KW 33KW 45KW
Normal Running Power Approx.8KW Approx.8.5KW Approx.11KW
Control System PC+PLC
Spraying movement Step motor
Spraying Pressure 0.2Mpa~0.4Mpa
Flux Flow Control Option
Auto Flux Filling Standard
Exhausting Top exhaust
Exhausting Pipe Diameter(mm) Φ250
Exhaust fan power 750W
Preheating Mode Hot air convection/IR
Temperature Control Mode PID
Preheating Zone Quantity 3
Preheating Zone Length(mm) 1800
Preheating Temperature Range Room temperature~200℃
Warm-up Time(min) Approx.12min(setting: 150℃)
Preheating Blower Motor 150W 3PH 220 VAC
Width(mm) 50~350 50~450 50~610
PCB Conveying Direction L→R( Option:R→L)
Conveying Speed(mm/min) 500~1800
Conveying Height(mm) 750±20
Available Component Height(mm) Top120 Option:240 Bottom15
Conveying Speed Control Mode Closed loop stepless speed regulation by inverter
Finger Spring Pressing Finger;D-40 Type Finger;Double-hook Finger;Heavy type double hook finger(Options) Heavy type double hook finge
Option:Special jig for fixture
Conveying Angle 4~7°
Solder Pot Type Mechanical
Solder Pot Material Casting Iron
Wave Height Adjustment Inverter: Digital Control by PC
Cooling type Air Cooling Option: Water cooling
Solder Pot Heating Power 13.5KW 18KW
Max Solder Pot Temperature 300℃
Solder Pot Capacity Approx.480kg Approx.550kg Approx.640kg
Wave Driving Power 180W*2 3PH 220 VAC
Solder Pot Warm-up Time Approx.150min(setting: 250℃)
Temperature Control Mode PID
Finger Cleaning System Brush
