Five Features
1.External spraying unit: eliminate safety risks, easy maintenance.
2.Preheating system: adopts high energy efficiency motor with high thermal efficiency.
3.Conveying system: adopts special design for smooth conveying and prevent finger shaking.
4.Exhausting system of spraying: adopts upper and lower exhausting and air knife for separating, to eliminate odor overflow.
5.Exhausting hood system: with high exhausting efficiency, anti foreign matter dripping design can be added , to eliminate quality trouble.

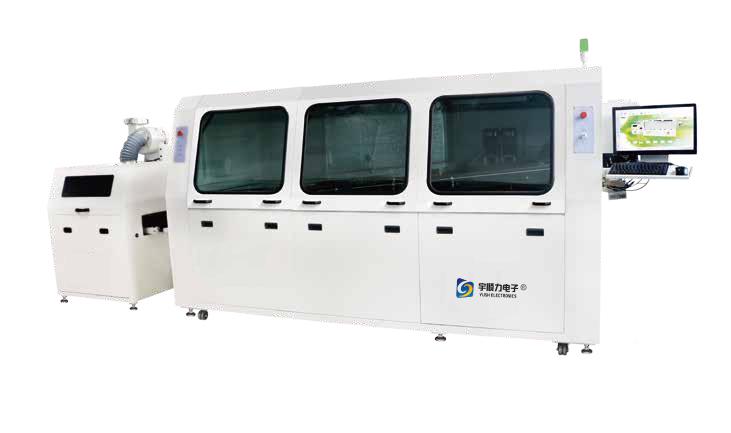

External spray lead-free wave soldering machine (Fully upgrade) 0


External spraying unit(option:selective spraying system)
External spray lead-free wave soldering machine (Fully upgrade) 1
Top exhausting and filtering System
External spray lead-free wave soldering machine (Fully upgrade) 2
Forced cooling system
External spray lead-free wave soldering machine (Fully upgrade) 3
Lead-free processing nozzle
External spray lead-free wave soldering machine (Fully upgrade) 4
Flexible combination of preheating system
External spray lead-free wave soldering machine (Fully upgrade) 5
Heavy-duty conveying system
External spray lead-free wave soldering machine (Fully upgrade) 6


1.Conveying system: Direct buffering structure.Special stainless steel chain conveying aluminum alloy rail unique design, durable;Transportation system: adopt segmental floating structure, effectively prevent guide rail deformation;
2.Preheating system: Adopts drawer type module with energy-saving design, infrared, hot air convection for any combination, PID temperature control mode, so that the temperature control accuracy reaches to be ±2℃, preheating area and soldering area temperature drop value ≤5℃;
3.Adopt precision control valve for digital regulation, convenient management. Nozzle movement is controlled by stepping motor.Flux automatic pressure supply, which makes the spray flow quickly reach saturation, top exhausting and filtration system;
4.The solder pot is made by cast iron with anti-corrosion ceramic coating equipped with two low flow rate nozzles.
5.Air cooling system: cooling rate 4-6 ℃ /s (adjustable).
6.PC+PLC control system. Windows7 operation system with Chinese/English operation interface. Processing profile and data auto saving function.Alarm for detecting the flux and solder level.
External spray lead-free wave soldering machine (Fully upgrade) 7
01 LCD
02 Conveyor system
03 Finger cleaning system
04 Cooling system
05 Dual wave solder pot
06 Solder pot lifting unit
07 Pre-heater
08 Angle adjustment controller
09 Buffer system
10 Finger spraying system

11 Exhaust fan


Model No. YSL-F YSL-450F YSL-610F
Dimension: L*W*H(mm) 5050*1420*1750 5050*1520*1750 5050*1690*1750
Weight Approx.1850kg Approx.2050kg Approx.2300k
Power Supply 3PH 380V 50HZ 3PH 380V 50HZ 3PH 380V 50HZ
Start up Power 33KW 33KW 45KW
Normal Running Power Approx.8KW Approx.9KW Approx.11KW
Control System PC+PLC
Spraying movement Step motor
Spraying Pressure 0.2Mpa~0.4Mpa
Flux Flow Control Option
Auto Flux Filling Standard
Exhausting Top exhaust
Exhausting Pipe Diameter(mm) Φ250
Exhaust fan power 750W
Preheating Mode Hot air convection/IR
Temperature Control Mode PID
Preheating Zone Quantity 3
Preheating Zone Length(mm) 1800
Preheating Temperature Range Room temperature~200℃
Warm-up Time(min) Approx.12min(setting: 150℃)
Preheating Blower Motor 150W 3PH 220 VAC
Width(mm) 50~350 50~450 50~610
PCB Conveying Direction L→R( Option:R→L)
Conveying Speed(mm/min) 500~1800
Conveying Height(mm) 750±20
Available Component Height(mm) Top120 Bottom15
Conveying Speed Control Mode Closed loop stepless speed regulation by inverter
Finger Spring Pressing Finger;D-40 Type Finger;Double-hook Finger;Heavy type double hook finger(Options) Heavy type double hook finge
Option:Special jig for fixture
Conveying Angle 4~7°
Solder Pot Type Mechanical
Solder Pot Material Casting Iron
Wave Height Adjustment Inverter: Digital Control by PC
Cooling type Air Cooling Option: Water cooling
Solder Pot Heating Power 13.5KW 18KW
Max Solder Pot Temperature 300℃
Solder Pot Capacity Approx.480kg Approx.550kg Approx.640kg
Wave Driving Power 180W*2 3PH 220 VAC
Solder Pot Warm-up Time Approx.150min(setting: 250℃)
Temperature Control Mode PID
Finger Cleaning System Brush


Note:4 sections of preheating can be customized,and the length is 2.3m
