Wave soldering
Location: Home -> Hot Products -> products -> SMT wave soldering machine -> Wave soldering -> Full Automatic solder paste Printer YSL-T5

Features

1.Entirety frame design

2.Multifunctional platform design

3.Visual alignment to ensure the accuracy

4.Integrated transport system

5.Independent cleaning structure

6.Squeegee lifting direct connects with screw rod structure

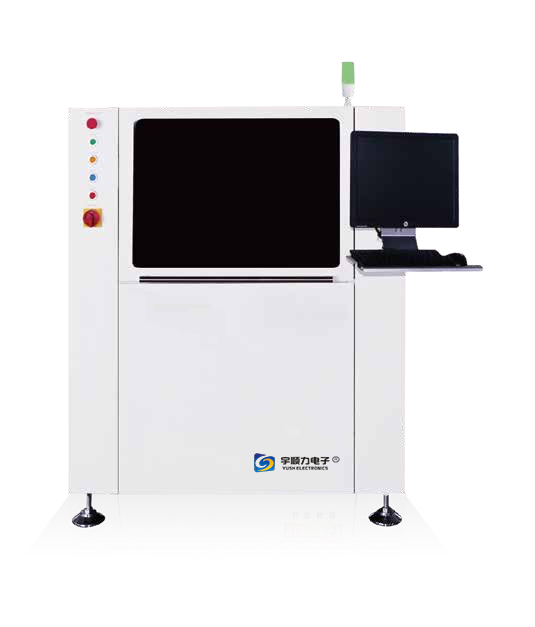

Full Automatic Screen Printer YSL-T5 0


Overall diagram

1.Rack module

2.Lifting module

3.Platform alignment module

4.Image capture module

5.Stencil frame positioning module

6.Squeegee module

7.Display module

8.Cleaning module

9.Conveyor module

10.Air and power input

11.Housing module


Full Automatic Screen Printer YSL-T5 1


Technical parameters



Parameter YSL-T5
Basic Parameters Screen Frame Size(mm) 650(×)×420(Y)-850(×)×850(Y)
Thickness∶ 20-40mm
Min PCB(mm) 50(×)×50(Y)mm
Max PCB(mm) 510(X)×510(Y)
Thickness 0.2mm~6mm( Use jig when pcb less than 0.4mm)
Curve <1%(Diagonal measurement)
PCB backside Part Height 20mm
Conveyor height 900±40mm
Support Magnetic support,Magnetic piece,Vacuum chamber(Option)
Clamp Side clamp(Standard),please read the option table
Edge distance PCB process edge ≥2.5mm
Conveyor speed 0~1500mm/s,increment 1mm
Conveyor belt U type sync belt
Stopper method Air cylinder
Stopper position Set the PCB stopper position according to the size of board
Flow direction L-R,R-L,L-L,R-R depends on customer
Print System Print speed 5-200mm/sec adjustable
Print head Step motor drive scraper lifting
Scraper Steel scraper,rubber scraper(option)
Scraper angle 60°
Scraper pressure 0~20kg
View System Substrate Separation Three-section Substrate Separation;Speed∶0.1-20mm/s;Distance∶0-20mm
Alignment position method Mark Automatic aligning
Camera Germany BASLER,1/3”CCD,640*480pixel,pixel size 5.6μmx5.6μm
Acquire image method Upper/under double photo
Camera light Coaxial light,Ring light four kinds light can adjustable
View range 9mm*7mm
Mark dimensions Diameter or Side length 1mm~2mm,allowable offset 10%
Mark shape Cir,Rec,or rhombus etc
Mark position PCB dedicated mark or PCB pad
2D detection Standard
Accuracy Table adjusting range X=±3mm,Y=±7mm,0=±1.5°
Positional accuracy ±0.01mm
Printing accuracy ±0.025mm
Time Cycle time <10s(ex print,cleaning time)
Convert line time <5min
Programming time <10min
Control System Computer configuration Industrial PC,Windows official system
System language Chinese /English
Pre and next machine connection SMEMA
User authorization User PW and Senior PW set
Cleaning System Cleaning system Dry and Wet(standard),vacuum model(optional)
Liquid level detection Liquid level auto alarm detection
Power Parameters Main power supply AC220V±10%50/60HZ Single phase
Total power About 3kw
Main air supply 4.5~6kgf/cm2
Machine weight About 950Kg
Machine dimensions 1530(L)×1680(W)×1540(H)mm
Option Pneumatic top clamp For PCB(thickness≤1mm)
Top clamp + side clamp For PCB(thickness≤1mm)
Vacuum adsorption and clean For PCB(thickness≤1mm)and FPC
Auto tin added /
Auto loading and unloading /
Flexible and universal support For the Double-sided PCB(PCB backside parts Height ≤9mm)
Automatic positioning of screen frame Automatic positioning of screen frame
PCB board thickness movement adjustment function Standard
Squeegee pressure feedback function /
Air condition Customer can buy by themselves
The rest of solder paste on the stencil monitoring system /
SPI close loop SPI close loop
UPS power off protection UPS 15 min power off protection
Industry 4.0 Bar code trace function,Production analysis,etc
