Features

1.Perfect solution for large size product printing

2.Simple calibration and maintenance

3.Stable printing quality

4.Independent developed image processing software

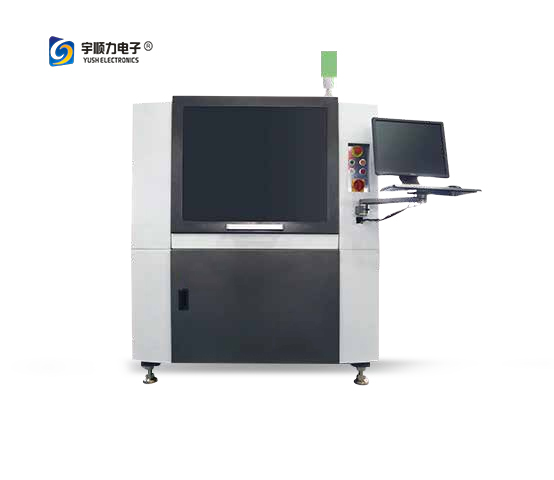

Full Automatic Screen Printer YSL-510H 0

Overall diagram

1.Machine housing module

2.CCD image capture module

3.Stencil lifting module of Z-axis

4.Squeegee printing module

5.Cleaning module

6.Platform fine adjustment module

7.Rail and conveyor module

8.Three color warning lamp

9.Display and input device

Full Automatic Screen Printer YSL-510H 1

Technical parameters

Parameter YSL-120
Basic Parameters Screen Frame Size(mm) 650(×)×5500(Y)-737(×)×737(Y)
Thickness∶ 20-40mm
Min PCB(mm) 50(×)×50(Y)mm
Max PCB(mm) 510(X)×510(Y)
Thickness 0.2mm~6mm( Use jig when pcb less than 0.4mm)
Curve <1%(Diagonal measurement)
PCB backside Part Height 18mm
Conveyor height 900±40mm
Support Magnetic support,Magnetic piece,Vacuum chamber
Clamp Side clamp and top clamp
Edge distance PCB process edge ≥2.5mm
Conveyor speed 0~1500mm/sec,increment 1mm
Conveyor belt U type belt
Stopper method Air cylinder
Stopper position Set the PCB stopper position according to the size of board
Set by software Software Settings
Print System Print speed 5-200mm/s adjustable
Print head Step motor drive scraper lifting
Scraper Steel scraper,rubber scraper(option)
Scraper angle 60°
Scraper pressure 0~20kg
View System Substrate Separation Three-section Substrate Separation;Speed∶0.1-20mm/s;Distance∶0-20mm
Alignment position method Mark Automatic aligning
Camera Germany BASLER,1/3”CCD,640*480pixel,pixel size 5.6μmx5.6μm
Acquire image method Upper/under double photo
Camera light Coaxial light,Ring light four kinds light can adjustable
View range 9mm*7mm
Mark dimensions Diameter or Side length 1mm~2mm,allowable offset 10%
Mark shape Cir,Rec,or rhombus etc
Mark position PCB dedicated mark or PCB pad
2D detection /
Accuracy Table adjusting range X=±10mm,Y=±10mm,0=±2°
Positional accuracy ±0.01mm
Printing accuracy ±0.015mm
Time Cycle time <7.5 exprint,cleaning time)
Convert line time <5min
Programming time <10min
Control System Computer configuration Industrial PC,Windows official system
System language Chinese /English
Pre and next machine connection SMEMA
User authorization User PW and Senior PW set
Cleaning System Cleaning system Dry and Wet(standard),vacuum model(optional)
Liquid level detection Liquid level auto alarm detection
Power Parameters Main power supply AC220V±10%50/60HZ Single phase
Total power About 3kw
Main air supply 4.5~6kgf/cm2
Machine weight About 1300Kg
Machine dimensions 1350(L)×1625(W)×1535(H)mm
Option Pneumatic top clamp Standard
Top clamp + side clamp For PCB(thickness≤1mm)
Vacuum adsorption and clean For PCB(thickness≤1mm)and FPC
Auto tin added /
Auto loading and unloading /
Flexible and universal support For the Double-sided PCB(PCB backside parts Height ≤9mm)
Automatic positioning of screen frame Standard
PCB board thickness movement adjustment function /
Squeegee pressure feedback function /
Air condition Customer can buy by themselves
The rest of solder paste on the stencil monitoring system /
SPI close loop SPI close loop
UPS power off protection UPS 15 min power off protection
Industry 4.0 Bar code trace function,Production analysis,etc

Precision/Stable/Smart

1The first domestic online calibration technology

2.New squeegee pressure setting software

3.Automatic calibration function-for rail rod wear automatic compensation

4.Intelligent 2D examination

5.New squeegee

6.Each equipment has passed the CPK test,and the test report(PDF file) is available

7.New alcohol cleaning structure

Full Automatic Screen Printer YSL-510H 2 Full Automatic Screen Printer YSL-510H 3

Precise Device of Platform Adjustment         Intelligent 2D examination

(X-Y-Z Adjust the system)

Full Automatic Screen Printer YSL-510H 4 Full Automatic Screen Printer YSL-510H 5 Full Automatic Screen Printer YSL-510H 6

Mark Point Identification Technology               Stable Printing Quality

Full Automatic Screen Printer YSL-510H 7 Full Automatic Screen Printer YSL-510H 8 Simple calibration and maintenance

Full Automatic Screen Printer YSL-510H 9

Precision Guarantee
