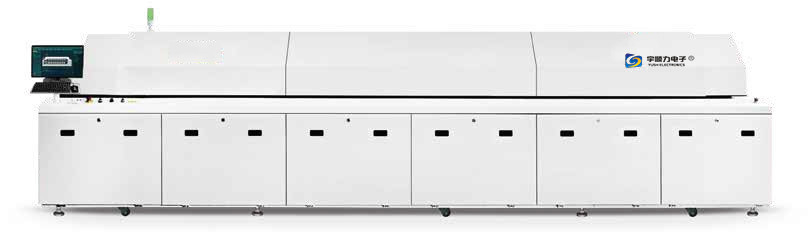

U Series reflow oven-Wave soldering

Products categories

Wave soldering

Location: Home -> Hot Products -> products -> SMT wave soldering machine -> Wave soldering -> U Series reflow oven

[View Origina] [BACK]

Technical requirements:

1.The customer to install control valve to control the import and export of the exhaust volume up to 145;

2.Each up to 145 entrance hole exhaust volume control in 15-20M³/min;

3.The main power supply: 3 380V diameter AC five wire, the main power line diameter of more than 35mm².

U Series reflow oven 2

U Series Product Features

1.High heat energy, low energy consumption, high power motor matching wind wheel,theoretical and practical verification; under the same conditions set, can ensure the small and large components to achieve the minimum heat absorption difference,and achieve the best thermal balance;

2.The latest thermal insulation technology and the new furnace structure design can effectively reduce the furnace surface temperature and reduce the heat loss;

3.Imported PLC program controller, stable and reliable performance, high precision of temperature control and curve repetition;

4.Double-sided guide rail with special hardening treatment, strong and durable, repeatable use, cost saving up to 50%;

5.Online maintenance of rosin recycling system, modular design,convenient maintenance, reduce maintenance time;

6.Patented hot air system, hot air convection conduction more efficient, faster heat compensation;

7.Built-in real-time monitoring system of furnace temperature, which can automatically generate furnace temperature curve (option);

8.Intelligent data can be traced and uploaded to MES system.

Heating module design is easy for maintenance and cleaning.Front and rear re-flow design could insulate the heating effect between heating zones in order to achieve the accuracy temperature and longer life-time of hot-air-flow motors. Also by the frequent control of motors,the speed of air flow could be adjusted.

Manual+electric width adjustment structure design,equipped with emergency manual transmission structure in case of preventing PCB burned when power off.

Special adjustable width and transmission design can ensure stable and reliable PCB transmission by anti-jammed chain.

High stability control system,powerful function.

Technical parameters

U series reflow oven main specifications
Model NO	YSL-808AU/YSL-808NU	YSL-810AU/YSL-810NU	YSL-812AU/YSL-812NU
Heating system
Heating Zone	8 heating zones,16 heating modules	10 heating zones,20 heating modules	12 heating zones,24 heating modules
Heating Length	2950mm	3670mm	4390mm
Cooling Type	Three cooling zones:forced air cooling/water cooling
Outlet Exhaust Diameter valume	2-0145,Exhaust demand 15-20m³/min x2
Conveyor System
Product Width	min50mm-max400mm
Conveying Direction	L→R,R→L
Inlet Height	900±20mm
Fixed Rail Side	Front rail Fixed(Option∶Rear Rail Fixed)
Conveyor Type	Chain+mesh with synchronous conveying
Cmponent Height	+30mm；-25mm/Clearance above 30mm,Clearance below 25mm
conveying speed	300mm-2000mm/min
control system
Power Supply	AC30 5W 380V 50/60HZ
Total Power	57KW	71KW	89KW
Start Up Power	30KW	35KW	40KW
Running Power	7.5KW	9.5KW	11.5KW
Temperature Range	-320℃/Room temperature 320℃
Control type	PC+PLC Control system
Rail Width Adjusting Mode	Electric+Manual
Temp Control accuracy	±1℃
PCB Temp Deviation	±1℃
Data storage	Process Data and status record
Power Outage Protection	Equipped with UPS
operation Interface	Windows Chinese simplified,English online free switching
General
Dimension(LxWxH)	558014501620mm	6300x1450x1620mm	7020x1450x1620mm
Weight	2300-2500kg	2700-2900kg	3100-3300kg
Color	Bright wrinkled white

U Series reflow oven 7
