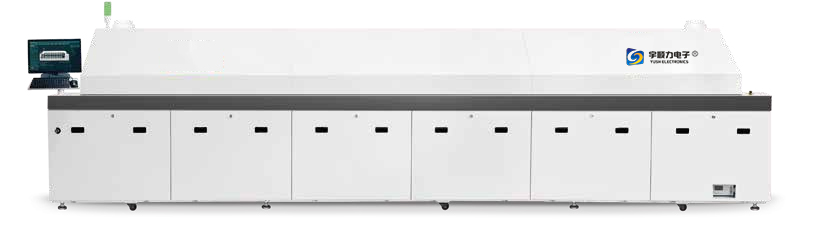

S Series reflow oven 0

Technical requirements:

1, The customer to install control valve to control the import and export of the exhaust volume up to 145;

2,Each up to 145 entrance hole exhaust volume control in 15M³>/min;

3, The main power supply: 3 380V diameter AC five wire, the main power line diameter of more than 35mm².

Product Features

1.Durable, interchangeable double-sided rails and special hardening;

2.Adopt stainless steel belt chain with guard, anti-clamp, practical and reliable;

3.New flux recovery system, full modular design, convenient and quick maintenance, reduce maintenance time and cost;

4.Patented hot air system, more efficient, faster heat compensation;

5.New furnace structure design, multi-layer heat insulation, effectively reduce the working environment temperature.

S Series reflow oven 2

Technical Parameters

S series reflow oven main specifications
Model No	YSL-08AS/ YSL-08NS	YSL-10AS/ YSL-10NS	YSL-12AS/ YSL-12NS	YSL-08DAS/ YSL-08DNS	YSL-10DAS/ YSL-10DNS	YSL-12DAS/ YSL-12DNS
Heating System
Heating Zone	8 heating zones,16 heating modules	10 heating zones,20 heating modules	12 heating zones, 24 heating modules	8 heating zones,16 heating modules	10 heating zones,20 heating modules	12 heating zones,24 heating modules
Heating Length	3120mm	3870mm	4635mm	3120mm	3870mm	4635mm
Cooling Type	Three cooling zones:forced air cooling/water cooling
Outlet Exhaust Diameter,valume	2-145,Exhaust demand 15m³/min x2
Conveyor System
Product Width	Min50mm-Max400mm			Min50mm-Max270mm(Dual track at the same time) Min50mm-Max500mm(Dual-track alone)
Conveying Direction	L→R,R→L
Inlet Height	900±20mm
Fixed Rail Side	Front rail Fixed (Option:Rear Rail Fixed)			Front and Rear Rails Fixed,central two rails are movavle
ConveyorType	Chain+mesh belt synchronous trans mission
Cmponent Height	Clearance based on the rail: above 30mm,below 25mm
Conveying Speed	300mm-2000mm/min
Control System
Power Supply	AC30 5W 380V 50/60HZ
Total Power	59KW	73KW	91KW	70KW	89KW	108KW
Start Up Power	30KW	35KW	40KW	35KW	40KW	45KW
Running Power	7.5KW	9.5KW	11.5KW	10KW	11.5KW	13KW
Temperature Range	Room temp to 320℃
Control type	PC+PLC Control system
Rail Width Adjusting Mode	Electric+Manual
Temp Control accuracy	±1℃
PCB Temp Deviation	±1℃			±2℃
Data Store	Process Data and status stotage
Power Outage Protection	Equipped with UPS
Operation Interface	Windows Chinese simplified, English online free switching
General
Dimension(LWH)	5580x1450x1620mm	6300x1450x1620mm	7020x 1450x1620mm	5580x1735x1620mm	6300x1735x1620mm	7020x1735x1620mm
Weight	2200-2400kg	2600-2800kg	3000-3200kg	2700-2900kg	3000-3200kg	3300-3500kg
Color	Bright wrinkled white

S Series reflow oven 3
