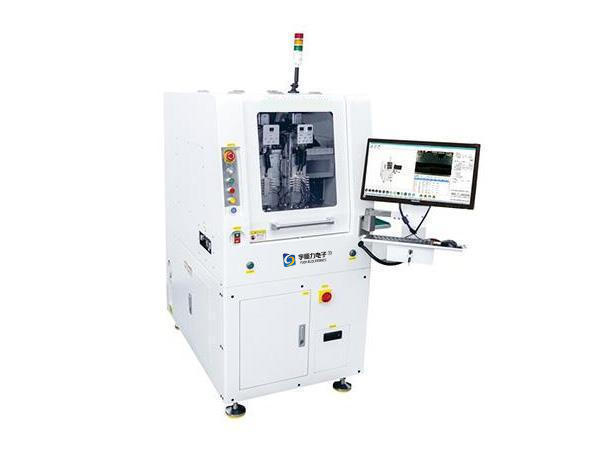

PCB Router Machine
Location: Home -> Hot Products -> products -> PCB Router Machine -> Online Pcb Router Machine(miniaturization)YSL-180M

Technical specifications:


1. Working range of sub-plate: 180mmx180mm


2.XYZ drive mode: AC servo motor


3. Number of movement axes: 7 axes


4. Program teaching mode: color CCD image intuitive teaching input


5. Operation interface: WIN7 window operation interface


6. Upper vacuum power: 2HP, lower dust collector power: 3HP (option 5HP)


7. Cutting spindle Sycotec (Germany) : MAX80000rpm (automatic tool change)


8.X-Y AC Servo speed: 0-1000mm/sec


9.Z AC Servo speed: 0-800mm/sec


10.X-Y repetition accuracy: ±0.01mm


11.Cutting accuracy: ±0.08mm


12.CCD camera calibration accuracy: ±0.02mm


13. Plate stress value: 300uε below


14. Tool diameter: 0.8-2.3mm


15.PCB board cutting thickness: 0.2mm-6.0mm


16. Main engine and dust collecting mechanical and electrical pressure: 220V 1φ and 3φ


17. Power consumption: 3.5KVA


18. Static elimination gun


19. Vision system: high resolution digital camera


20. Drive motor: AC brushless servo motor


21. Mechanical fetching and releasing arm: anti-static vacuum suction nozzle


22. Feeding mode: rail transportation


23. Discharging mode: belt conveying or vehicle output or rail conveying


24. Load shifting mode: vacuum suction nozzle adsorption load shifting


25. Flow direction: left → right


26. Program backup: USB interface


27. Control mode: special controller


28 Dust collection cabinet size: 640mm×785mm×1760mm(D×W×H)


29. Machine size: 1340mm×800mm×1528mm(D×W×H)


30. Weight of main engine + dust collector: 1000 KG


Compact on-line board splitter 0


Device configuration


One.Claw type plate taking structure

1. Clamp and place the product split-plate fixture on the processing platform split-plate. After the processing is completed, clamp and place the split-plate fixture on the placement track and flow into the next procedure.


Compact on-line board splitter 1


Two.Special product split-plate fixture into the track way


Compact on-line board splitter 2


Three.Special product split-plate jig track discharge

1. After the product is cut, the material clamping claw will take the entire product jig and place the discharge track to transport the next production process.


Compact on-line board splitter 3


Four.Automatic tool change mode

1. Miniaturized on-line board splitter adopts automatic tool change spindle imported from Germany. Save time, realize automation, reduce human factors, high precision, strong stability

2. Built-in four groups of milling cutter library, easy to replace the milling cutter automatically, to meet the needs of plate processing.


Compact on-line board splitter 4


Five.Vacuum suction plate taking structure

1. Take and place device: automatic loading and unloading (modular vacuum suction claw, vacuum device, can be independently controlled)

2. Transmission structure: X2 axis moves Z2, Z3 axis absorbs, AC servo motor control.

3. Board speed: 0-1000mm/sec (adjustable)


Compact on-line board splitter 5


Six.Special product belt discharging mode

1. The vacuum sucker feeding shaft takes the cut product through one-time vacuum suction, places the special product fixture and transports it to the next production process.


Compact on-line board splitter 6
