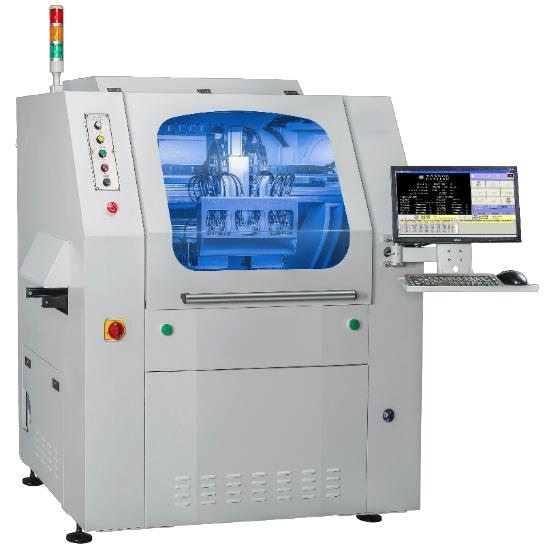

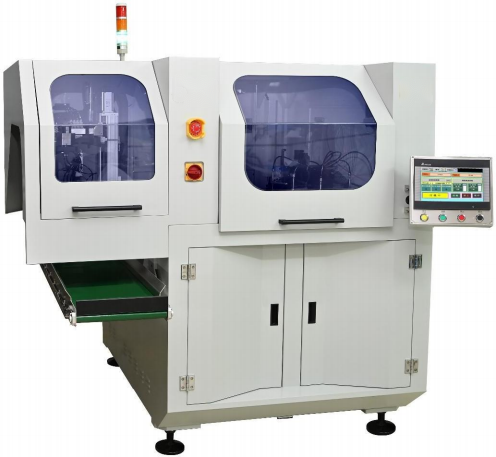

Machine Introduction
1.In-line automatic PCB Separator can load,cut,and un-load PCBs automatically to meet the needs of automatic factory.
2.Can automatically adjust width to adapt to the size of PCB.Can automatically differentiate finished PCB board from waste-
material after cutting for saving labor cost.
3.Equipped with high-speed CCD vision alignment system in all series of products to enhance the precision in cutting and
efficiency in operation.
4.Adopt the computer vision with high-quality CCD to automatically position the mark points and enhance the accuracy of
cutting.
5.Provide duel worktables for placing and cutting PCB in parallel to enhance the efficiency of operation.
6.Use high-speed spindle with small cutting stress to precisely cut PCB of any shape.
7.The system has auto-focusing function and requires no manual operation to adjust focus.
8.The EMS central control system can be linked to upper information management stystem and provide integrated production
data to monitor the status of equipment at any time.
Machine Application
Machine Application
1. In-line automatic PCB separator can load,cut ,and un-load PCBs automatically to meet the needs of
auotmatic factory.

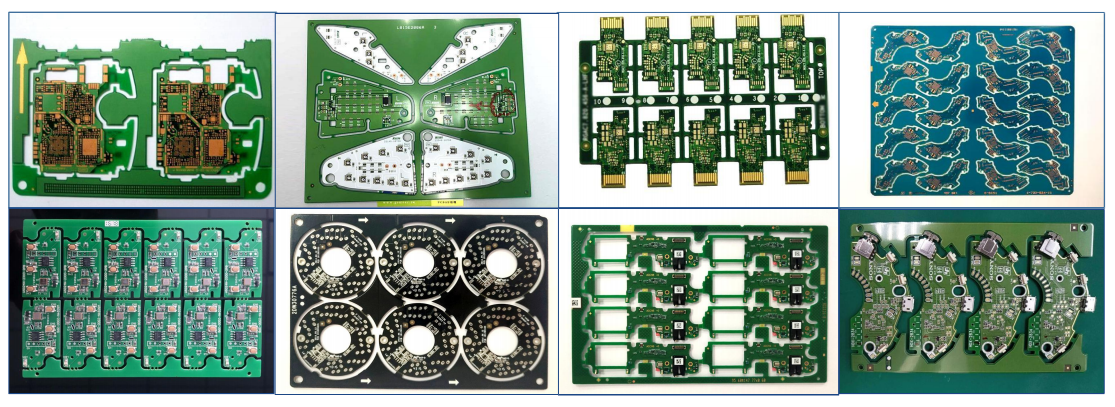

2. Suitable for cutting small-sized PCBA panel used in cell phone,digital camera ,and GPS device.
3. Larger cutting size is suitable for cutting big sized PCBA panel used in TV,PC host,work station,sever etc.
4. Different options of unloading PCBs solutions,Achieve full automation and save labor cost.
Operation Interface

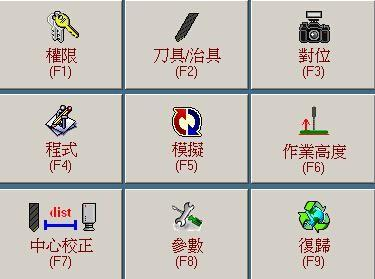

9 Functions:
F1:User Permission
F2:Setting board thickness , Milling bit
specification and life cycle and fixture height.
F3:Mark setting and revising
F4:Cutting Program Edit F5:
the cutting path simulation
F6:Milling bit working height setting
F7:Milling bit drilling center correction
F8:Environment,Working,Permission Setting
F9:Reset
Operation Interface

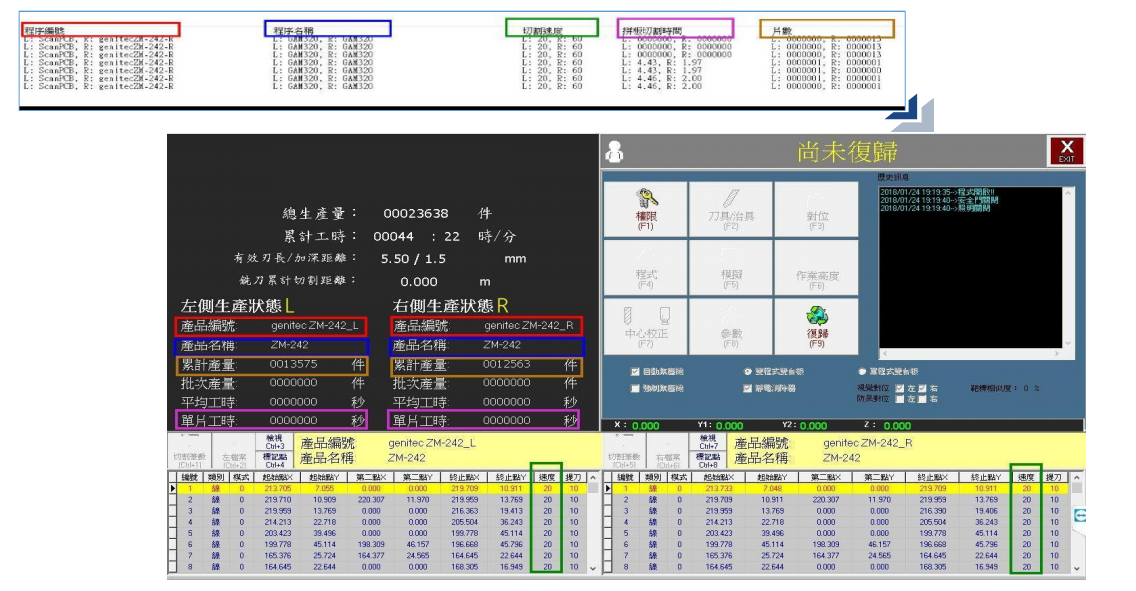

History Record
After the power on, all operation procedures and machine alarm records are saved in real time, and the whole operation process can be traced back. 500G hard disk saves data.
Function Parameter Interface
User-friendly operation interface makes setting of parameters extremely easy.
Four Levels Password Setting
Provide four levels of authorization control according to user's job rank.
Software-Special Function

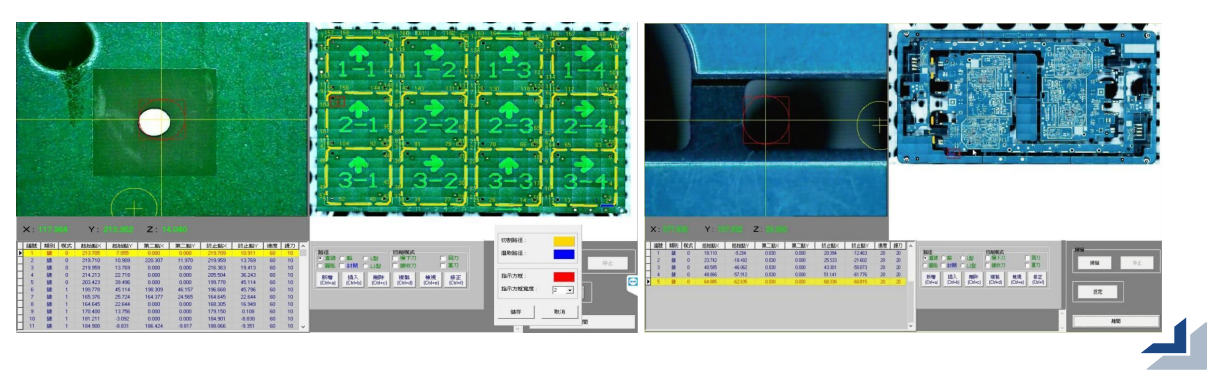

Vision-Aided Position Calibration
Use computer vision with CCD to automatically position of the mark points and enhance the accuracy of cutting;
Can edit the path-planning program and simulate the cutting path to avoid wrong cutting.
• More Mark More different machine function.
• Fool-proof MARK,Program related function.
Provide capability of detecting
Broken/dropped/reversed milling bit for auto tool-change.
Software-Special Function
Cutting inspection function (burr, exposed copper)
• Check the cutting result af
• And automatically correct the cutting error
Smart Programming
• Make editing program easier
• Humanization, save editing time
Software-Special Function
The whole PCB Scanning Function
(1)Allows the user to facilitate correcting and editing the cutter's routing path rapidly.
(2)Cutting line color optional,easy to distinguish different color of PCB.
Software-Special Function
Offline Programming Function
• offline program reduce production line waiting time

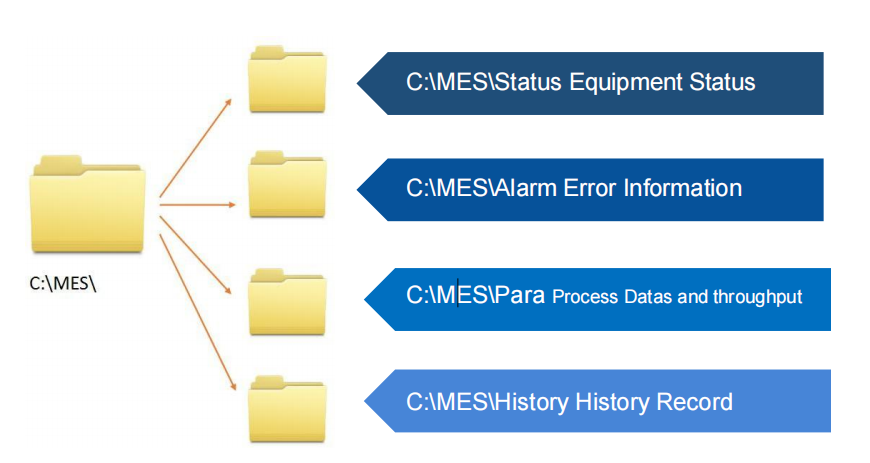

MESFunction description: provide equipment status and production data to the central information per sonnel for col lec tion management.
The Powerful MES Functional Explanation
MES Link System Case

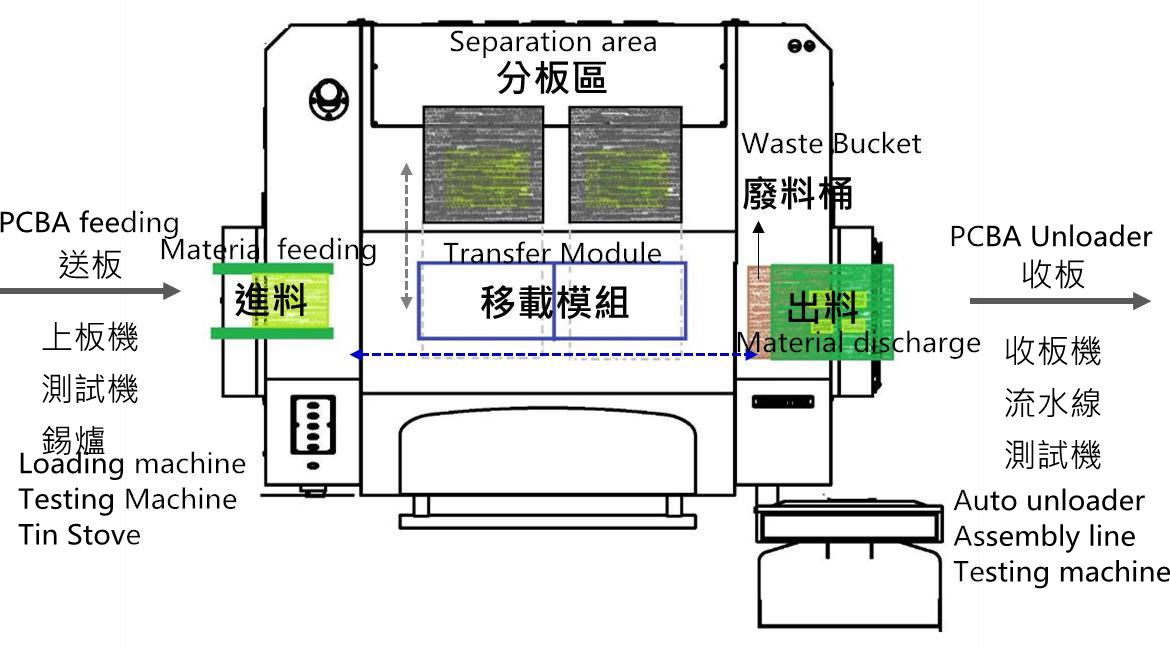

Production Diagram

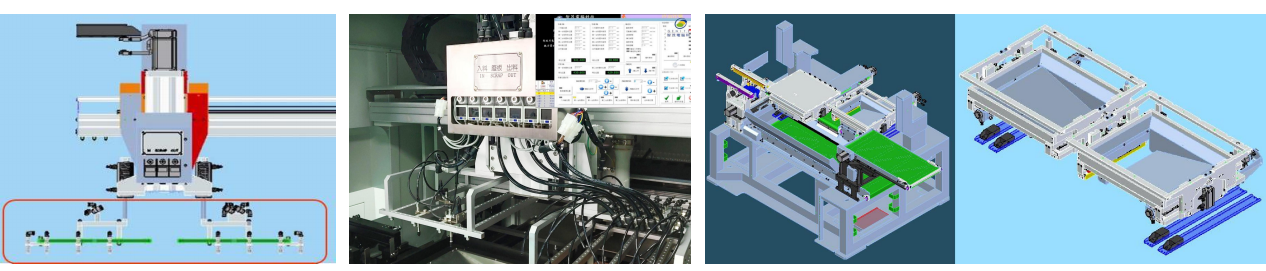

Machine Configuration-Speical Function
1,Automatically adjust the width of the board to receive the PCB board Elastic clamping edge, auxiliary positioning.
2,Provide dual worktables for placing and cutting PCB in parallel to enhance the efficiency of operation.
3 , Optimize the inlet and outlet nozzles, wide applicability-the nozzle takes and discharges the material
SPECIAL FUNCTION
4,Flexible Cleaning Brush Module Reduce milling bit loss and improve dust collection effect; When the milling it is used for segmental cutting, the resistance of the Z axis during cutting can be reduced, and the milling bit can be used more effectively.
5,Install the Cover Module Mechanism. Reduce dust pollution to PCBA parts during boards separtion.
6,Auto-Tool Change Function It prevent work injuries and misoperation. Adopt German imported spindle, with low cutting stress, smooth edge and high precision. The Z axis has an automatic compensation setting, which can automatically adjust the depth of the milling cutter. In the future, the signal port of the robotic arm can be expanded for free to realize unmanned operation.
SPECIAL FUNCTION
7 , The feeding arm is changed to a modular design,and the feeding and discharging modules can be selected accoridng to customer needs. When changing the line,the Inlet/outlet nozzle module can be quickly replaced,which shortens the line change time by more than 50%.
8 , Suction cup simulation setting to avoid board dropping
9,Auto Open/Close switching module for clamp plate.

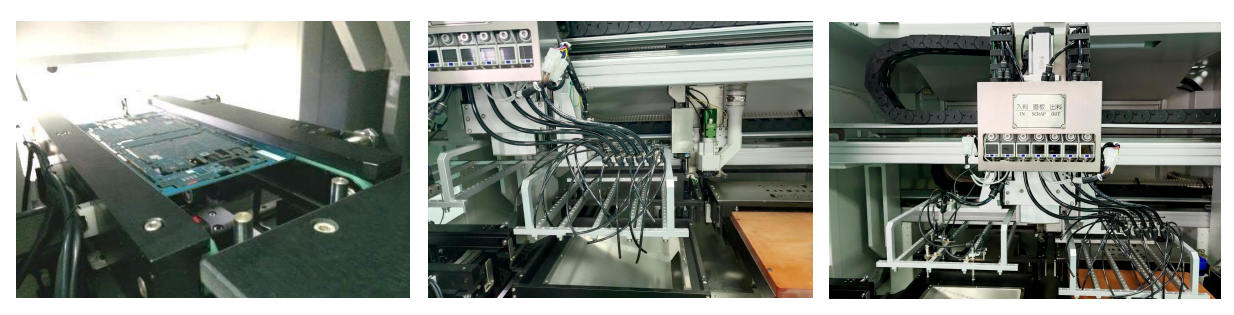

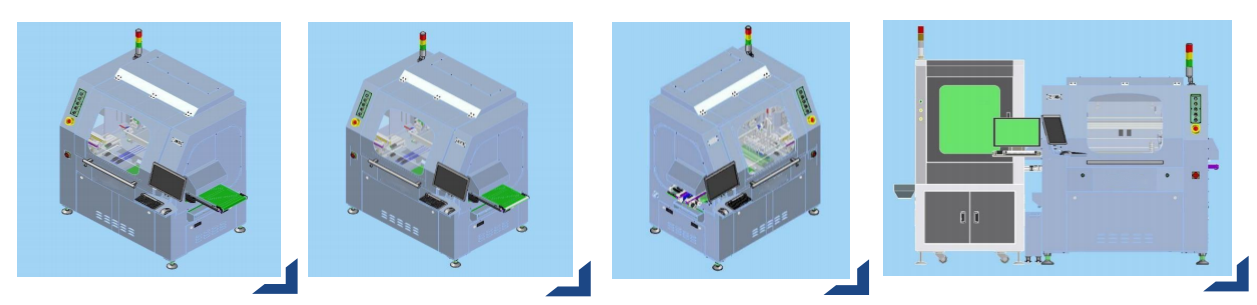

Unloading Module Design-Special Function
1 , Unload to the conneted conveyor
2,Equipped with dicharge baffle
3,Using Track delivery (optional)
4 , Unload to the connected test machine
Unloading Module Design-Special Function

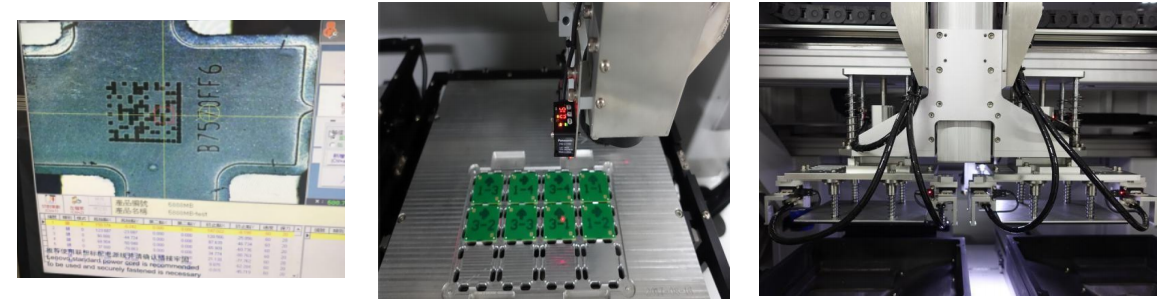

1,Barcode camera can dynamically capture and identify QR codes at any position.
2.Pratical application QR code: min2.5*2.5mm(Optional)
3, Laser height detecting module
4,Optional gripper module , Confirm the board is detected(optional) suitablefor: No edge technology, jig in and out; Large and heavy PCBA .
YS380AT -Special Function
1,Cutting is without fixture demand
unloading can be setting between 0-180 degree on placing in line then unloading.
2,Bottom cutting method
PCB Track loading directly,position cutting.
3,the Delivery height :900±25mm
Auto whole line solution

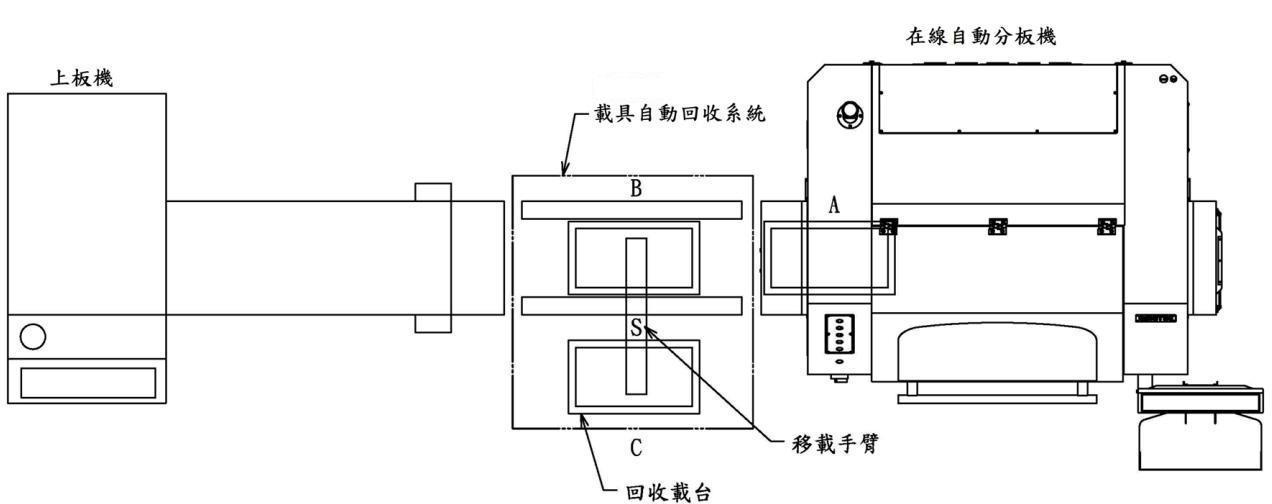

PCB without board edge Application
Description:
loading machine sends the PCBA containgfurnace carrier to the Separator and flows to Point A for positioning;
PCBA Separator sucks PCBA and performs automatic board separtion;
Carrier unloader automatic recovery system is returned to point B for positioning;
Transfer arm S transfers the returned empty carrier to point C;
The Recovery carrier automatically descends to accept the next carrier;
Automatically alarm when the laoding platform is full of materials.

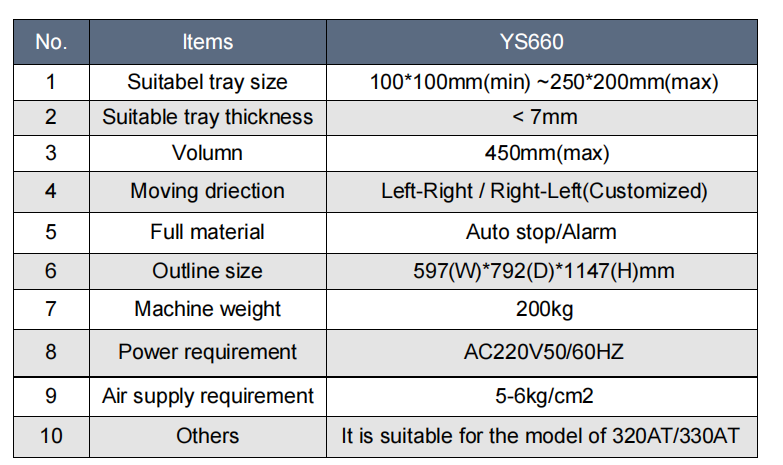

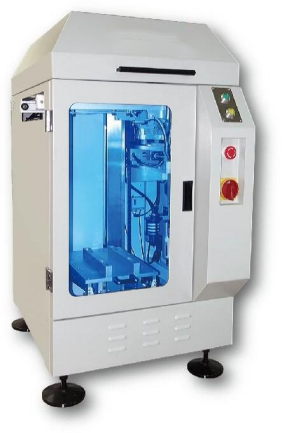

YS660 PCB Carrier Unloader
YS660 PCB Carrier Unloader
YS330AT+YS620L Case-Valeo
YS620L Auto Unloader 3D Map
YS620L Outside Size
Adopting the Germany imported spindle
