Product Description

Usage

Drilling blind holes, vias in HDI board, blind cut and blind slot in rigid-flex board. Cutting a variety of FPC and cover layer, low carbonization. Cutting FPC and copper substrate thickness up to 1 mm, smooth appearance. Precisely etching of functional film. Cutting the base material.

CHARACTERISTIC
1. Safe and reliable. Fully enclosed design, automatic control of worktable door to ensure safe operation;
2. Automation. Auto focus, auto-correction, auto-positioning, auto-homing, automatic spot compensation, and intelligent design;
3. Energy measuring. Automatically measure energy on the samples;
4. High drilling / cutting precision. Using ultra-high-precision scanning galvanometer, fully guaranteed drilling, cutting accuracy and quality;
5. Multi-panels cutting. With function to cutting array panels;
6. Optical optimization. High peak power and high pulse energy, fine focal spot, ensure cutting and drilling with high speed and high precision;
7. Convenient operation. Drilling and cutting with independent module, easy conversion;

ITEM	SPECIFICATION

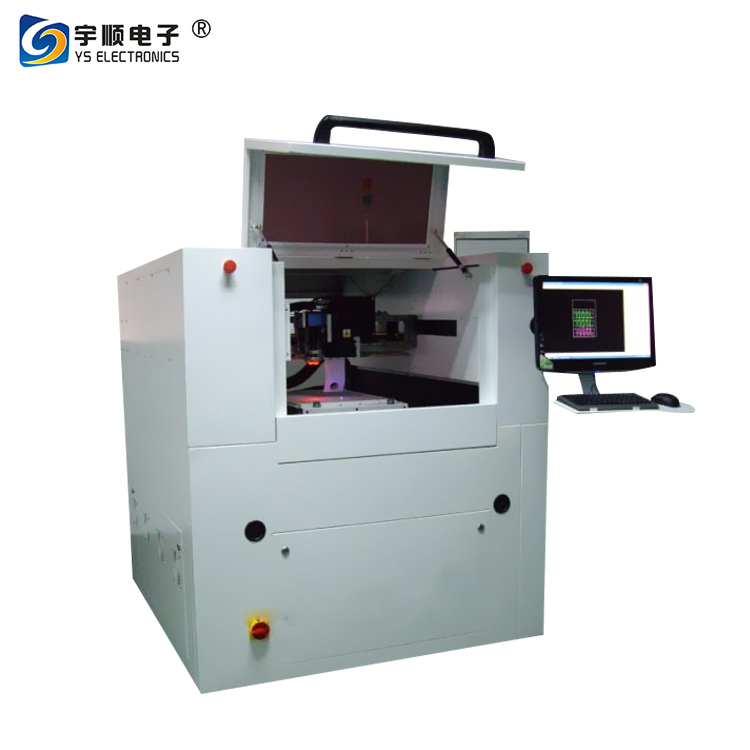

MODEL	YSATM-4C
Laser Source	UV,355nm All-solid-state UV laser device, wavelength 355nm
Laser Power	8W/30KHz
Laser Frequency	30-120KHz
Maximum Processing Size	500x400mm(Double working table)
Platform Maximum Operating Speed	24m/min
Platform Maximum Positioning Accuracy	±5µm
Platform Maximum Repeat Positioning Accuracy	±2µm
System Processing Precision	±25µm
Cutting Line Width	20±5µm
Cutting Thickness	<1.0mm
File format	Gerber & .DXF & .lay,G(CAM)Standard G code(Can switch via CAM)
Power	AC220V 50Hz/2.5KW,AC380V 50Hz/5.5KW
Vacuuming Requirements	516m³/h
Overall Dimensions	1780x1680x1560mm
Weight	2500Kg
Environmental Temperature	20±2°
Environmental Humidity	<60%RH No dew
Ground Amplitude	<5µm
Ground Pressure	>1000kgf/m²
,/ Industry-specific control machine, with computer pre-installed drilling and cutting software	Motion controller and industrial personal computer control model 17,300G Equipped with 17"screen,300G hard disk
