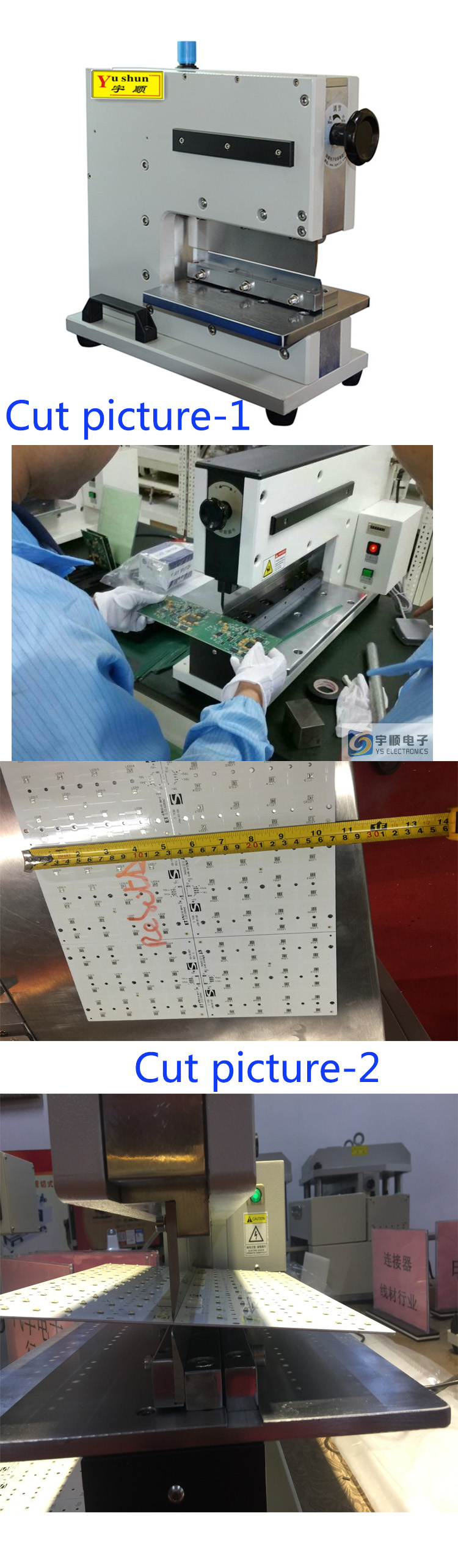

MCPCB Depaneling Machine Model -YSVC-2-Depaneling Machine


Features
1,  No vibration during the process to prevent damage to precise PCB
2, Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine, low friction design is applied.
3, Lower knife height adjustable, the front and real portion can be adjusted separately. No thin plates are required after re-sharpening the knife.

4, Operation and maintenance can be done also by unskilled personnel

5. Max PCB shearing length 330mm(Can custom made)
6.  thickness 0.3-3.5mm
7. Voltage and Power 110V/220V 10W
8. Working air pressure 0.5-0.7Mpa
9.  size 620*230*400mm
10. weight 165kg
