Mainly used for aviation, aerospace, medical, new energy, automotive electronics and other industries high-end products, multi-species, small and medium-sized PCBA board cleaning ,it can effectively clean the SMT/THT PCBA after welding the surface of the residual rosin flux, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants.
Machine Feature:
Total SUS304 stainless steel sructure, strong acid and alkaline resistance, durable
2-layers cleaning baskets: big 2 layers: 645(L)*560(W)*200(H)*2
Easy Chinese/English operation interface, quick and easy cleaning process parameters setting, precedures can be sored and called out, different password can be set according to different management authorization.
Standard cleaning chemicals can be added into machine manually or using dosing pump to add pure chemicals and DI water autmatically according to different ratio(5%-20%)
Cleaning chemicals heat system, can heat to the suitable temperature, make cleaning efficient
Cleaning all kinds of clux and solder paste
Real time electrical conductivity monitor system to monitor cleaning result, can be set to 10-400us.
High standard cleanness, ion contamination is fully consistent with IPC-610D I level standard
Cleaning chemicals repeated use in the machine, it can reduce 50% chemical cost
Built-in resin pipe out filtration system to effective filtrate all kinds of impurity substance likke COD, BOD, PH…etc
Machine Specification:
| Item | Parameter |
| Cleaning basket size(mm) | 645(L)*560(W)*100(H)*2layers |
| Liquid tank(L) | 17 |
| Pure chemicals tank(L) | 32 |
| Dilute chemicals tank(L) | 60 |
| Clean time(min) | 5-20 |
| Dry time(min) | 20-40 |
| Chemical heat temp.(Mpa) | 0.5-0.7 |
| PCB hot air temp.(L/min) | 400-600 |
| Electrical conductivity range(us) | 10-400 |
| Auto ratio range | 5-20% |
| Chemical filter | 1um or 0.45um |
| Rinse the discharge filter system | 0.45um |
| Hot air filter | 10um/5um |
| DI water supply(L/min) | 30-65 |
| DI water pressure(Mpa) | ≤0.4 |
| Vent size(mm) | ￠125*50(H) |
| Power/Air supply | 380V, 30KW |
| Machine weight(KGS) | 450 |
| Machine size(mm) |
1300*1000*1720 |
Application:
Mainly used for aviation, aerospace, medical, new energy, automotive electronics and other industries high-end products, multi-species, small and medium-sized PCBA board cleaning ,it can effectively clean the SMT/THT PCBA after welding the surface of the residual rosin flux,
water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants
Cleaning Basket:
Cleaning Process
Cleaning Flow

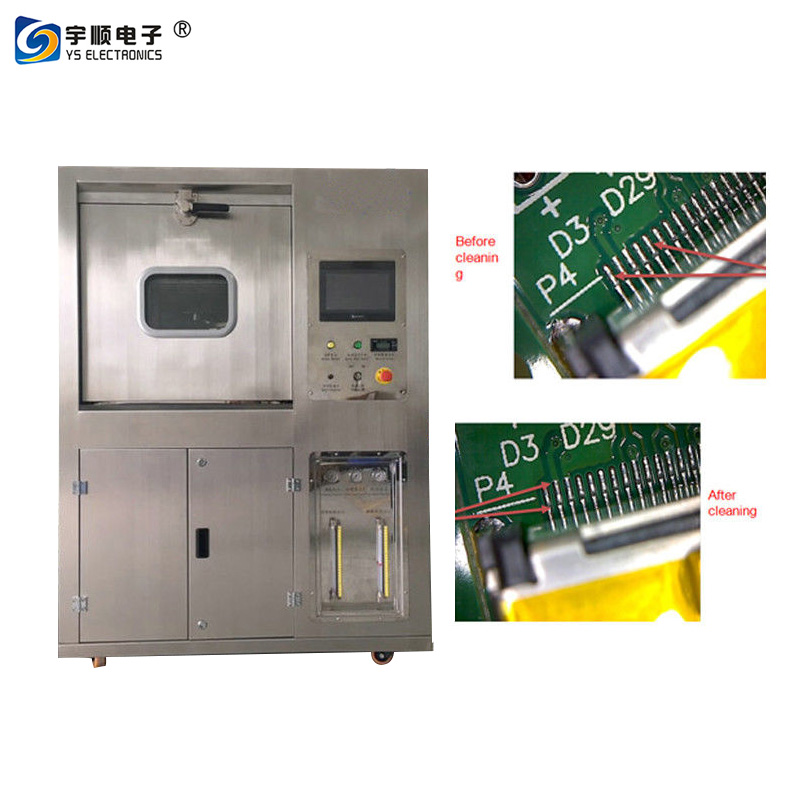

Comparison of Cleaning
