feature:
1. High efficiency:It merely needs a few minutes to make a piece of PCB.
2. Online PCB Router Cutting precision ± 0.05mm,Online Automatic PCB Router Machine
3. Safety :Enclosed Work Area ;Door Interlock Sensors ;Emergency Stop Button
specifications
I. Hardware | |
System models / types | Windows XP Professional |
Overall | |
FootPrint (LxWxH) | 800mm*850mm*1700mm |
Weight (Approximate) | 150KG |
Adjustable machine footings (for height) | 60~110mm |
Manipulator | |
Manipulator Motor | Panasonic MINAS A5 series |
Manipulator Repeatability | 0.001mm |
Axis configuration | |
Maximum Axis Travel (X,Y,Z) | 400mm*650mm*50mm |
Work station | |
Board Positioning | Fixture positioning, thimble universal positioning, vision correction |
Loading/Unloading | manual |
Routing Range | 320mm*320mm |
Panel Thickness | 3mm |
Fixturing | |
Rigid Fixturing | Universal thimble & anti-static fixture |
Top Clamp | Using hole positioning |
Spindle Motor | |
Power | 100W |
Max. speed | 60000rpm/min |
Cooling | Natural cooling and air-cooled |
Router bit size | 3mm*3mm |
Tool change | Use Special wrench |
Routing capability | |
Max routing speed | 100mm/s |
Repeatability | 0.02mm |
Vacuum System | |
Power | 0.75KW220V Single-phase motor |
Filtration | Vertical and horizontal |
Utilities | |
Power | 1.5KW AC220V |
Air supply | 4~5KG/cm2 |
Our advantage:
1. we can do the designs according to the customers' requirement
2. we can offer you the high quality & reasonable price
3. we can offer your a good after-sell service .
4. we have strong professinal design team
5. promptly delivery. small order is welcome

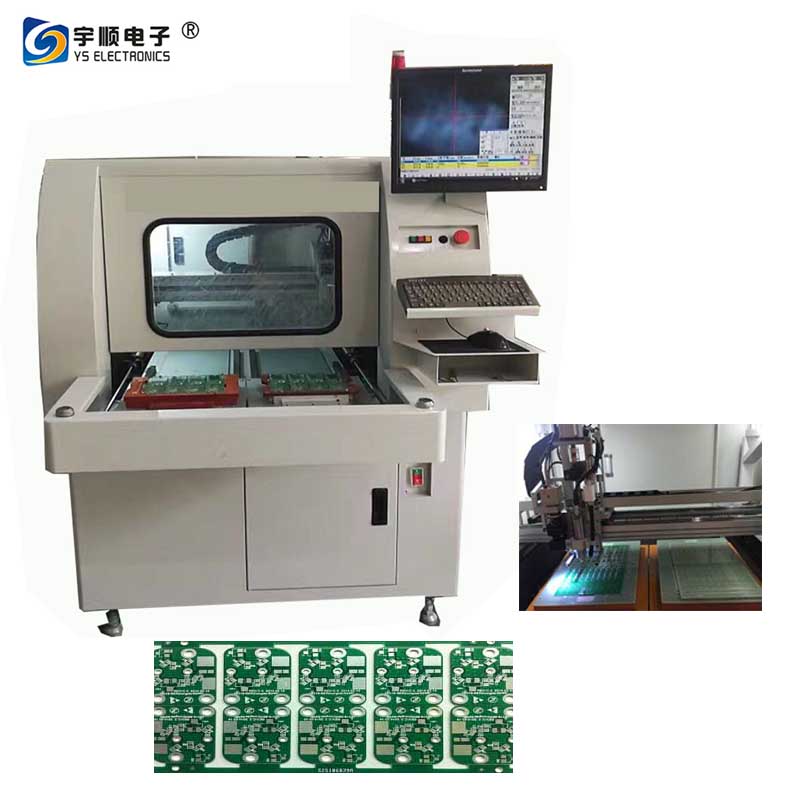

Application Examples picture:
