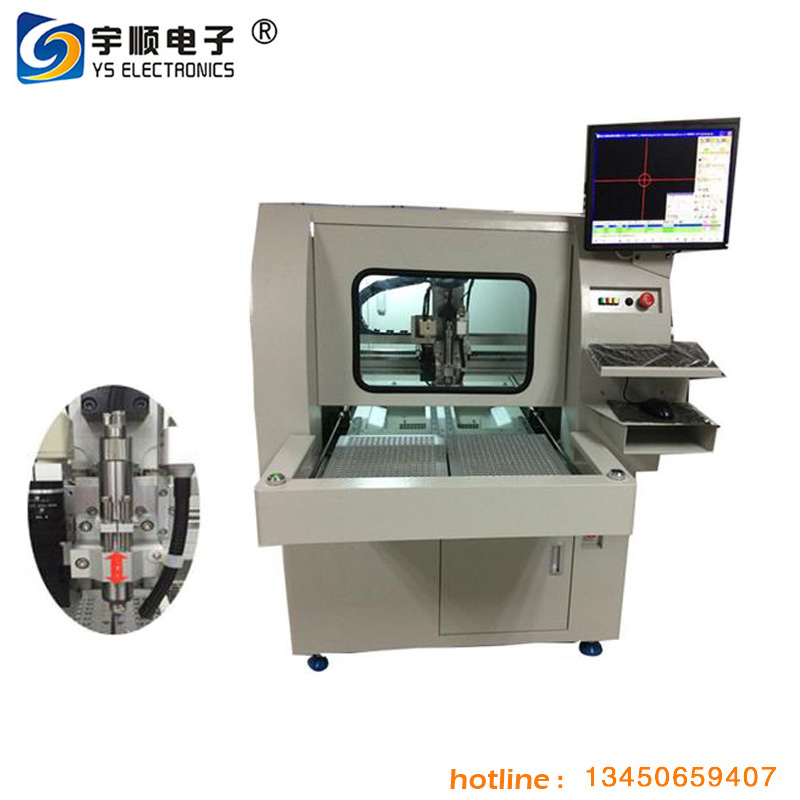

Milling cutter - splitter - product features



Application industry:

The automatic splitter is equipped with a visual alignment correction function, which is more suitable for high-precision and high-capacity PCB cutting and splitting.

Such as mobile phones, automotive electronics, medical equipment, aerospace. Widened and large size for digital TV, PC motherboard, server and other large circuit boards. Standard fixtures or special fixtures can be used to assist in the production of sub-board cutting. Use two working platforms to place workpieces, reducing waiting time and increasing productivity.



Specifications:


HD color CCD camera                                                   Power consumption: 3KW

Weight: 1000KG                                                         Spindle: MAX60000RPM

X.Y working schedule: 290 * 350 mm                            X.Y.Z drive mode: AC servo motor

Operation interface: PC WINDOW platform                     Dust collector: 3HP

Host and dust collector voltage: 220V1ψ/380V3ψ            Cutting speed: 0-100mm / s

CCD recognizes MARK point and has visual compensation function

Cutting accuracy: ± 0.02 mm                                        Repeatability: ±0.01 mm



Product Features:

The full range of high-speed CCD vision automatic correction system is equipped with large radiation to improve cutting accuracy and operating efficiency.

The high-speed spindle splitting plate has small cutting stress and high precision, and is suitable for irregularly shaped PCB boards.

Dual working platform for simultaneous cutting and board placement for increased productivity.

Independent research and development of dust collecting devices, low noise and efficiency, easy to maintain and clean.



Product introduction:
PCB cutting and milling cutter automatic sub-plate machine replaces manual breaking, V-CUT or PUSH cutting boring, effectively improving product quality and reducing external stress on products.
Configure high-pixel CCD lens, auxiliary program teaching and editing functions, higher precision and more accurate.
Double-platform PCB board cutting reduces waiting time and increases productivity.
Program left and right workbench copy, block copy, display, multi-angle link copy, single-step tracking and modification function, block editing and modification function, which simplifies the time of program creation and improves editing efficiency.
Automatic MARK point positioning correction system, real-time display of moving path and analog route tracking, effectively improve cutting accuracy.
The vacuum cleaner and high-voltage static elimination device made by the high-power imported fan enhance the vacuuming effect.
PCB cutting and milling cutter automatic machine tool life monitoring to extend the life of the milling cutter.
