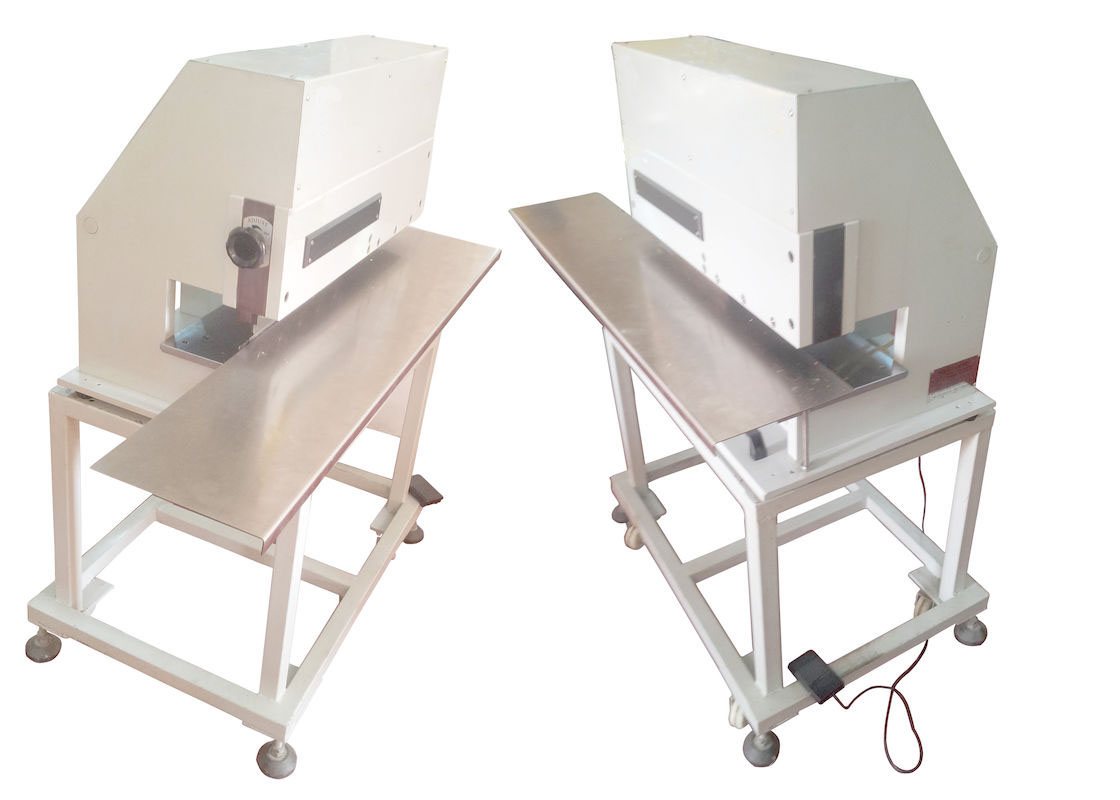

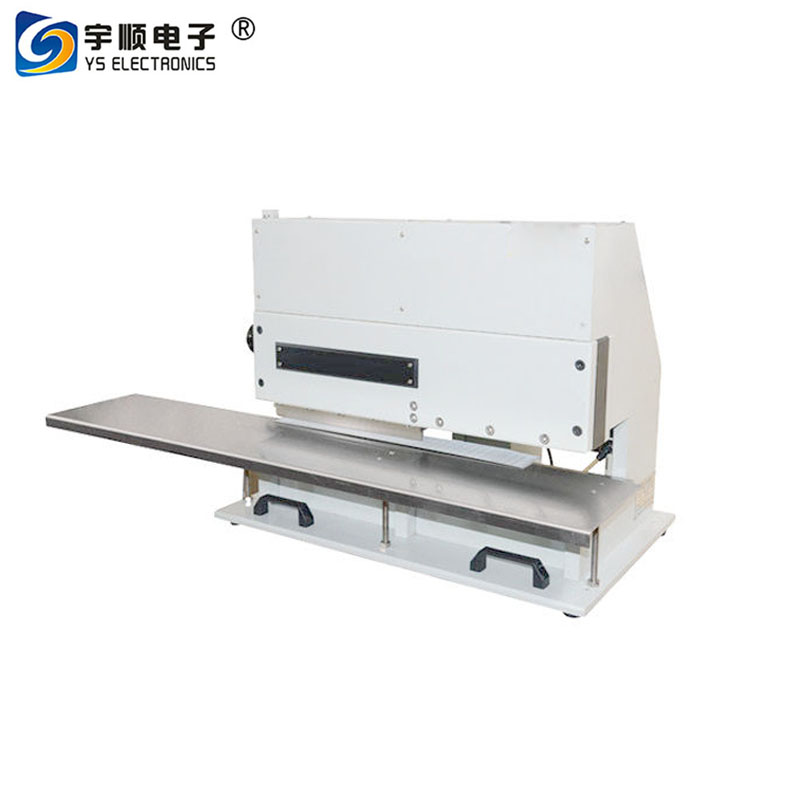

PCB Separator For Pneumatic PCB Depaneling MCPCB Depanelizer
1. Max. PCB separating length is unlimted
2. Separate PCB without bending and tension stress
3. Safety use, easy operation
4. Separating process without vibrations
|
Model |
YS - 3 |
|
Max. PCB separating length |
unlimited |
|
PCB separating thickness |
0.3-3.5mm |
|
PCB separating speed |
by operator skilled level |
|
Voltage |
110/220V |
|
PCB separator machine size |
780x500x620mm |
|
PCB separator machine weight |
185Kg |
Features:
1. The machine was designed to separate pre-scored PCB carefully , without bending and tension stress .
2. Even sensitive SMD - Components like ceramic capacitors, will not be damaged by the separating process , or thin board even to 0.3mm can be worked safely .
3. Separating process without vibrations
4. PCB separating control method is by pneumatic - driven and electromagnetic valve
5. PCB separating operation is that operator stamps the foot pedal to separate PCB
6. Highest components near the v groove of PCB can be up to 50mm
7. Gap for insertion of PCB can be easy to adjust
| Cutting Length: | Unlimited | Packaging Detail: | Plywooden Case |
|---|---|---|---|
| Delivery Detail: | Within 3 Days | Warranty: | 1 Year |
| Establish Year: | 1999 | Material: |
High Speed Steel |
