2.0mm Metal PCB Separator Machine PCB Boards Cutter With Two Sharp Linear

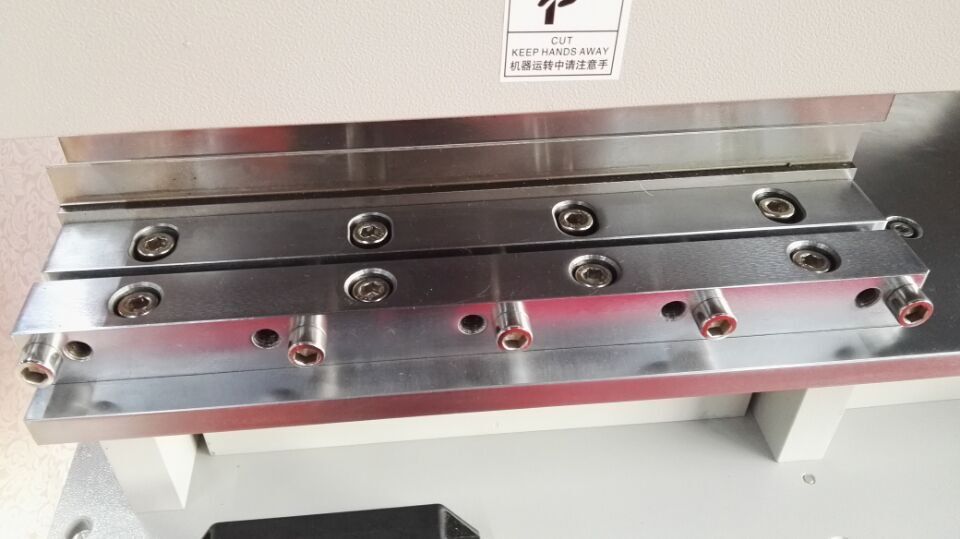

Blade Material: High Speed Steel From Japan Blade Type: Sharp Linear Blade
Cutting Thickness: 0.6-3.5mm Cutting Speed: According To Operator Skill Level
Type: Pneumatic Warranty: One Year

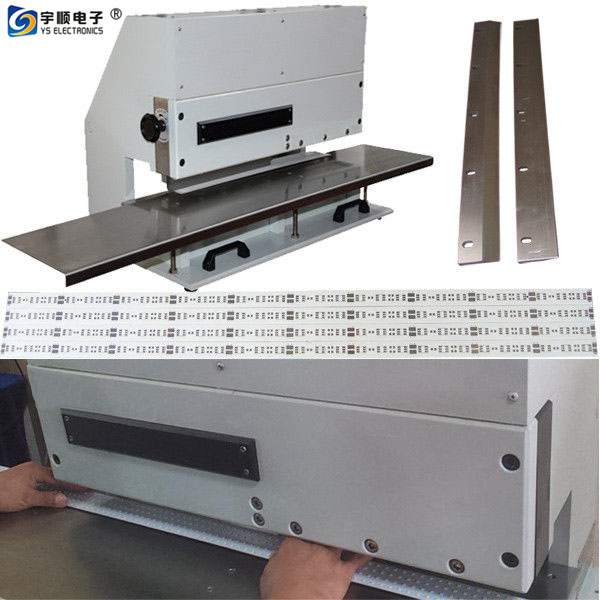

2.0mm Metal PCB Separator Machine PCB Boards Cutter With Two Sharp Linear Blades



Details:



1. Place of Origin: Guangdong, China (Mainland)

2. Brand Name: yushunli pcb depaneling

3. Model Number: YSVC-3 pcb depaneling

4. Packing: plywooden case

5. Cutting board: cut PCB/LED/FR4 board

6. Thickness: 0.5-3.5mm

7. Weight: 220KG

8. Payment term: T/T or L/C



Specification:



Model:

YSVC-3

The Longest Minimize:

unlimted

Size:

780mmx500mmx620mm

Minimize Thickness:

0.3-3.5mm

Working Area:

330*220mm

Machine Weight:

185Kg



Features:

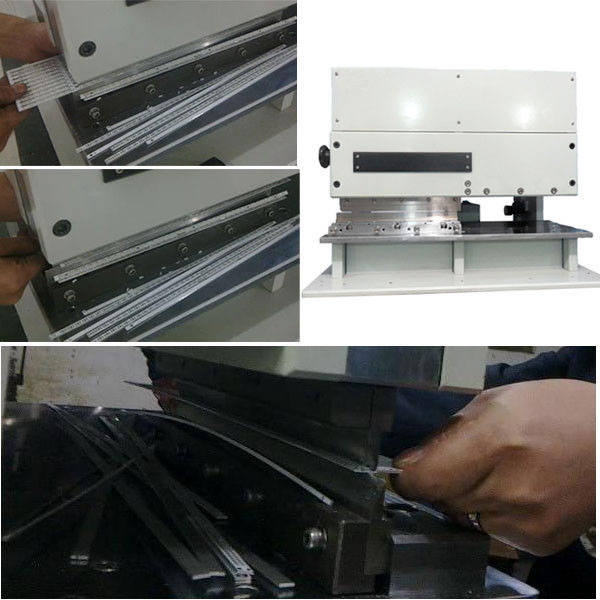

1. Cut any length metal board  more safety and easily.

2. Separates long boards directly,without turn direction .

3. Separates boards up to 2.0mm  thick  Metal Board

4. Shears boards safely with parts as close as 1 mm to the  score line,including ceramic capacitors

5. Operator foolproof! Panels cannot be inserted into the knives except on the score line

6. Handles high components up to50mm

7. Bow waves that can occur with round knives are avoided

8. Easy adjusting of distance between knives
