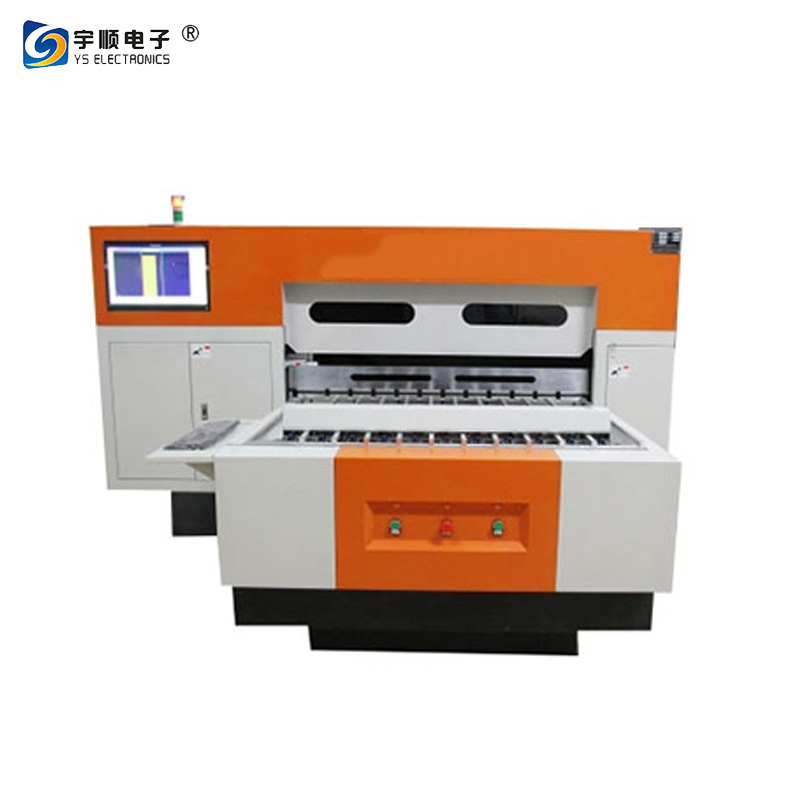

Details Product Name: CNC V-CUT machine table Model: YSVC-450C (680mm * 630mm) Products: 1.Yush series of precision CNC V-CUT machine design features: According to PCB / MCPCB automatic V-CUT machine characteristics involving multiple disciplines to build PCB / MCPCB automatic V-CUT machine digital prototyping system that uses multidisciplinary joint design and simulation in the design phase, the product's features and performance for checking and testing, the performance of the products meet design specifications, resolve conflicts and interference between the various disciplines to achieve optimal coupling, which will greatly improve the product quality and system performance. All of the base of the machine using the "Tarzan green" or "Jinan Green" granite, and the experience of stress relieving, rigidity, good stability. X \ Y \ Z axis positioning driven by imported high-performance AC servo motor drive, to achieve high-speed high-precision positioning, effectively increase productivity. Precision Transmission and guiding system: imported precision linear guide and precision ball screw, high precision drive, location. With dagger functions for complex PCB / MCPCB jump knife processing. Can be performed with high precision machining for various sizes of V-groove board 0.4 ~ 3.2mm Bohou board The first knife into the center of the nail PIN 5mm above the minimum reserve Minimum knife grinding diameter 114MM, the highest tool life Use WINDOWS XP Chinese operation interface, as data processing and parts management. Suitable for single and double sided, multilayer, aluminum plate board surface shape before use. V-CUT during processing, with automatic gauge control, residual thickness detecting function. apan imported high-speed spindle motor, V groove cut no edges, longer tool life. Use EG intelligent control systems, uninterrupted, stable operation, easy easy to failure, maintenance. Knives, knife deep graphical numerical control, high precision, easy to learn, easy to set up the whole. AB has entered the information while artificial steering, once processed. Can (optional) highly efficient dust collection system, the plant can be kept clean environment. 2. Specifications: Item Specification Parameters Machine size 1560 × 2100 × 1585mm Working height 920 ± 50mm Machine weight 3000kg Two-phase AC power requirements 220V, 50 / 60HZ Power 3.0KW Air pressure 5kg / cm2 Job board (Model: YSVC-450C) 680mm * 630mm (max) & 110mm * 110mm (min) Processing thickness 0.3 ~ 3.2mm Tool specifications diameter: φ120mm inner diameter: φ25.4mm Positioning pin diameter 2MM (6 个) Article V cable from PIN hole minimum spacing 5MM 2mm thickness Tool V groove residual thickness accuracy ± 2mil V groove pitch accuracy ± 2mil V groove parallel precision ± 2mil Tool speed 6,000R.P.M. Cutting speed 0 ~ 50m / min Displacement displacement speed can reach speeds of up to 75M / MIN Optional dust collector 2in pipe 3.5KW |
