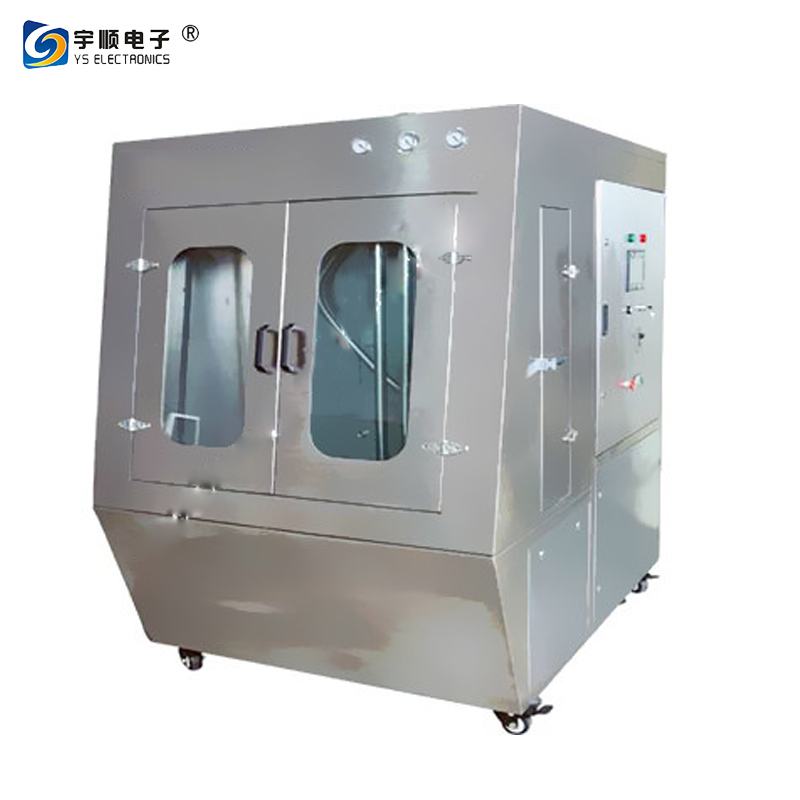

Electric Stencil Cleaning Machine -YS-800

Product Description：

YS-800 is a high quality electric stencil cleaning machine is used to clean solder paste/red glue stencil, misprint PCB and squeegee. By using water-based chemicals, the stencil can be clean, resin and dry by just push one button.


Feature：

1. High quality electrical pump. High pressure wash, resin, dry process.

2. Total SUS 304 structure, resist Acid and Alkali corrosion, strong, more than 10 years lifespan.

3. One-key operation, Wash, Resin and dry process complete automatically according to pre-setting procedure。

4. Can clean SMT stencil , silk screen, print jig, squeegee, big PCBA, misprint PCB..

5. Completely closed spray developing process, make the cleaning workshop clean and day.

6. Super electrical and pneumatic parts from German, USA and Japan ensure stability and high quality of the machine.

7. Modular design , easy maintenance.

8. Touch panel interface，quick cleaning parameters setting: Chemical temperature/wash time, resin time/temperature, and dry time/temperature etc.

Machine Specs ：

Model Number	YS-800
Max Stencil Size	L800 x W750 x H40(mm)
Chemical tank	50x2pcs
Wash time	2~5min
Resin time	2~5min，
Dry time	3~5min
Resin cycle	1~99
Clean Chemical	water-based chemicals
Resin DI water	Open lope DI water or Close loop chemical spray
Dry mode	Hot air dry
Liquid heat temp	0~60℃
Dry temp	0~90℃
Wash heat power	9KW
Resin heat power	9KW
Hot air power	6KW
clean/resin filter	0.45um
Resistivity range	0~18MΩ
Power supply	AC380V,50/60HZ,33KW
Machine size	1580x1180x1860mm (LxWxH)
