Product Description:

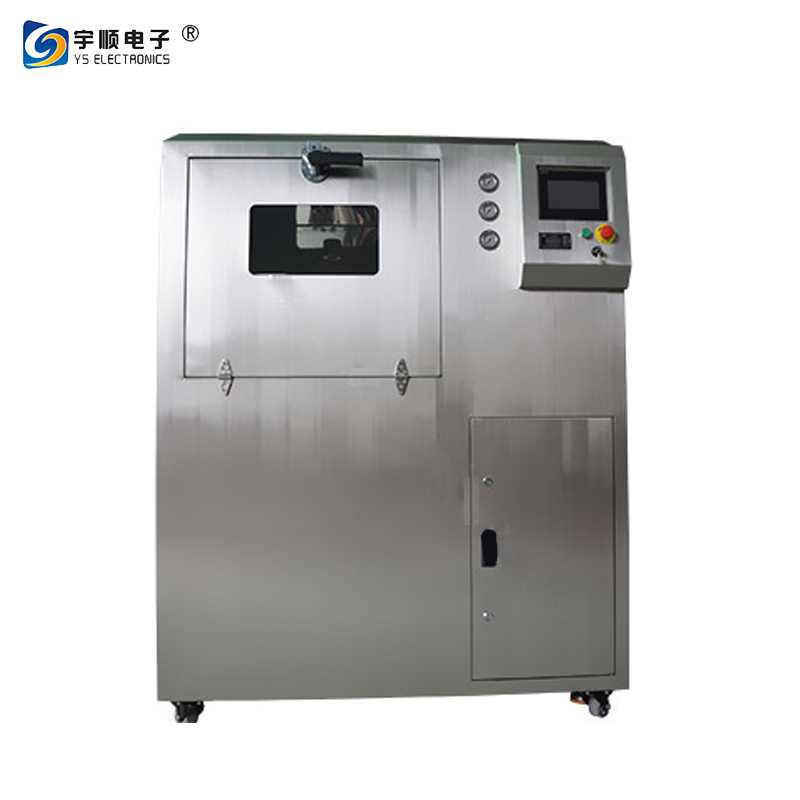

YS-5600 is a high-end PCB batch cleaning machine used to clean all kinds of flux on SMT and THT PCBA , it is compact, efficient, energy conservation and environment protection. Clean, rinse and hot air dry process auto completed just in one machine. Widely used on car electronics, aircraft, medical devices, instrument industries…etc.

Product Feature：
1. Total SUS304 stainless structure, Strong Acid and alkaline resistance, more than 10 years life span.

2. layers cleaning baskets: big 2 layers 645mm(L) ×560mm(W) × 200mm(H) x 2

3. Easy Chinese operation interface, quick and easy cleaning process parameters setting, procedures can be stored and called out; different password can be set
according to different management authorization.

4. Standard leaning chemicals can be add into machine manually or using dosing pump to add pure chemicals and DI water automatically according to different ratio(5%~20%).

5. Cleaning chemicals heat system, can heat to the suitable temperature, ,make cleaning efficient.

6. Cleaning process can be observed through window on machine.

7. Cleaning all kinds of flux and solder paste. v8. Real time electrical conductivity monitor system to monitoring cleaning result, can be set to 10~400us.
9.  High standard cleanness, ion contamination is fully consistent with IPC-610D I level standard.
10.  Cleaning chemicals repeated use in the machine, it can reduce 50% chemical cost.

11. Built-in resin pipe out filtration system to effective filtrate all kings of impurity substance like COD,BOD,PH…etc.

YS-5600 cleaning schematic

YS-5600 cleaning process

Machine SpecS:

ItemModel Number	YS-5600
Cleaning basket size	L645 x W560 x H100 (mm) x2 layers
Liquid tank	17L
Pure chemicals tank	32L
Dilute chemicals tank	60L
Clean time	5~20min
Dry time	20~40min
Chemical heat temp	0.5~0.7Mpa
PCB hot air temp	400~600L/min
electrical conductivity range	10~400us
auto ratio range	5~20%
Chemical filter	1um or 0.45um
Chemical filter	0.45um
hot air filter	10um/5um
DI water supply	30~65L/Min
DI water pressure	≤0.4Mpa
vent size	Φ125xH50(mm)
power/Air supply	AC380V/50A/50HZ,30KW;0.5Mpa
Machine weight	450KG
Machine size	L1300 x W1000 x H1720(mm)
