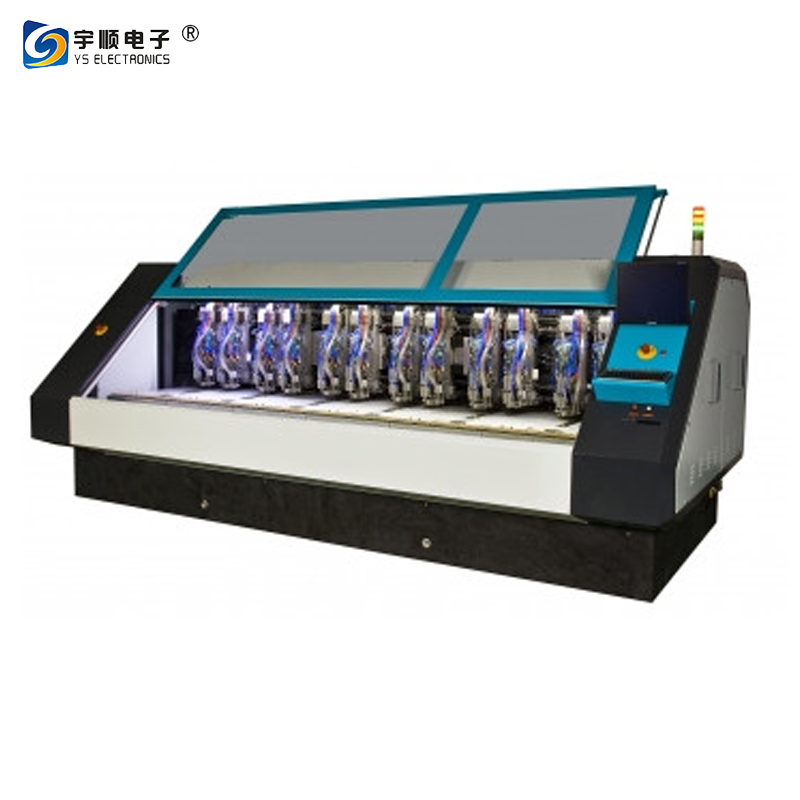

Advantages:
1. Duo axis working at one station processing.
2. Nearly double productivity, reduce energy consumption by about 15%~30%.
3. Cover the same area as general six-axis machine, save the plant area by a half.
4. Shorten drilling time by a half, reduce effect caused by temperature variation.
5. Compact arrangement, save pipeline configuration and labor, reduce production cost.
Main Parameter:
|
Spindle speed |
200krpm |
||
|
Drill size range |
|
||
|
Tool magazine capacity |
12×250 |
||
|
Positioning accuracy |
|
||
|
Repeatability accuracy |
|
||
|
Drilling accuracy |
±1mil（Under the condition of VEGA's test） |
||
|
Table area |
6×560mm×700mm |
||
|
Power requirement |
3PH-AC380V＋PE,50/60HZ 15KVA |
||
|
Air requirement |
7-8bar |
||
|
Cooling requirement |
17℃-20℃ |
||
|
Temperature |
22±2℃ |
||
|
Humidity |
|
||
|
Noise |
≤85dBA |
||
|
Dimension(L×W×H) |
4400mm×2150mm×2130mm |
||
|
Weight |
15000kg |
Main Parameter:
standard accessories:
working Demo：
Machine Application:
Application Materials: CNC PCB drilling/routing machine is good at drilling various materials: copper pcb, aluminum pcb, FR4 pcb, acrylic palte, copper plate, etc.
