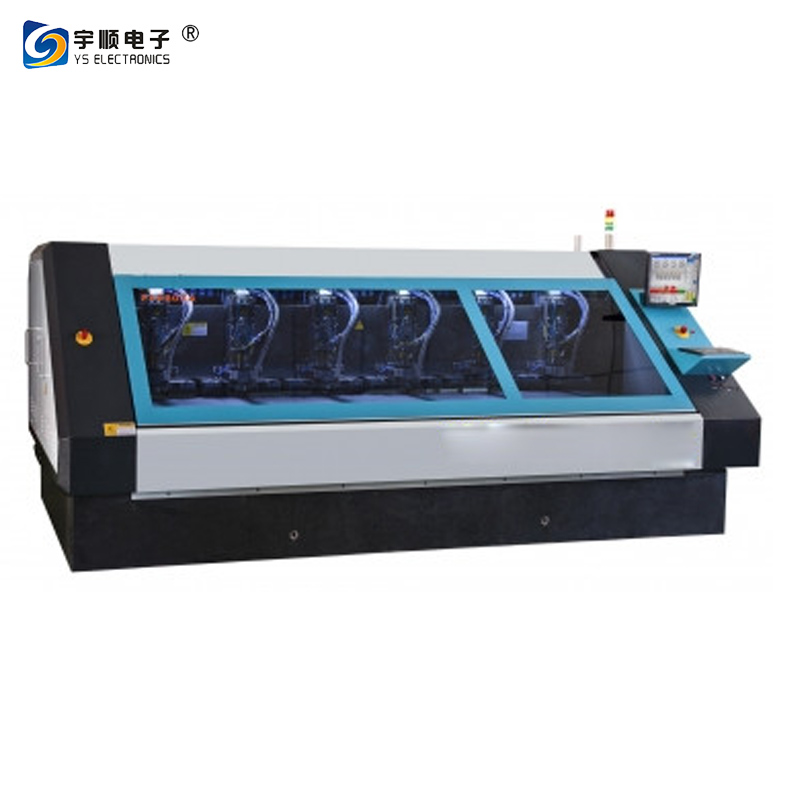

Advantages:
1. X/Y/Z axis linear motors, the maximum velocities of X/Y axis are 100m/min.
2. 200krpm ultra-highspeed spindle, 100um micro-hole drilling accuracy, good macro-hole and slot hole processing capacity.
3. With the most advanced air bushing structure of Z axis in the world, the weight of moving part can be reduced by 20% in comparison with traditional design, low frequency vibration caused by machine movement can also be lessened effectively.
4. Non-contact and non-friction guide, longer life than that of traditional ball guide, maintenance free.
Main Parameter：
|
Velocity of X/Y axis |
100m/min |
|
Velocity of Z axis |
50m/min |
|
Spindle speed |
200krpm（300krpm optional） |
|
Drill size range |
￠0.1－￠6.35mm |
|
Tool magazine capacity |
6×242(Put on a knife） 6×300（Underneath the knife） |
|
Positioning accuracy |
±0.004mm |
|
Repeatability accuracy |
±0.0025mm |
|
Drilling accuracy |
±0.8mil（Under the condition of VEGA's test） |
|
Table area |
6×560mm×700mm |
|
Power requirement |
3PH-AC380V＋PE,50/60HZ 15KVA |
|
Air requirement |
7-8bar |
|
Cooling requirement |
17℃-20℃ |
|
Temperature |
22±2℃ |
|
Humidity |
50%-65％ |
|
Noise |
≤85dBA |
|
Dimensions(L×W×H) |
4340mm×2100mm×1700mm |
|
Weight |
13500kg |
Main Parameter:
standard accessories:
working Demo：
Machine Application:
Application Materials: CNC PCB drilling/routing machine is good at drilling various materials: copper pcb, aluminum pcb, FR4 pcb, acrylic palte, copper plate, etc.
