Advantages:
1. X/Y/Z axis linear motors, the maximum velocities of X/Y axis are 85m/min, and the velocity of Z axis is 50m/min.
2. 180krpm ultra-highspeed spindle.
3. Specially designed for high-end customers.
Main Parameter:
standard accessories:
working Demo：
Machine Application:

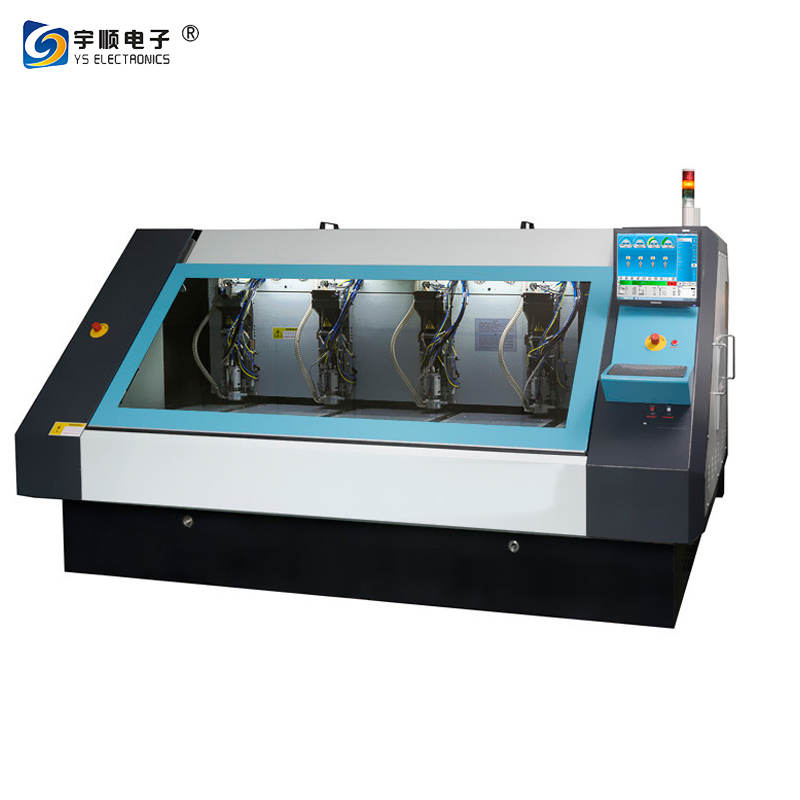

Application Materials: CNC PCB drilling/routing machine is good at drilling various materials: copper pcb, aluminum pcb, FR4 pcb, acrylic palte, copper plate, etc.
MAIN PARAMETER：
|
Velocity of X/Y axis |
85m/min |
|
Velocity of Z axis |
50m/min |
|
Spindle speed |
180krpm |
|
Drill size range |
￠0.1－￠6.35mm |
|
Tool magazine capacity |
4×242(Put on a knife） 4×300（Underneath the knife） |
|
Positioning accuracy |
±0.004mm |
|
Repeatability accuracy |
±0.0025mm |
|
Drilling accuracy |
±0.8mil（Under the condition of VEGA's test） |
|
Table area |
4×560mm×700mm |
|
Power requirement |
3PH-AC380V＋PE,50/60HZ 10KVA |
|
Air requirement |
7-8bar |
|
Cooling requirement |
17℃-20℃ |
|
Temperature |
22±2℃ |
|
Humidity |
50%-65％ |
|
Noise |
≤83dBA |
|
Dimension(L×W×H) |
3250mm×2100mm×1700mm |
|
Weight |
10000kg |
