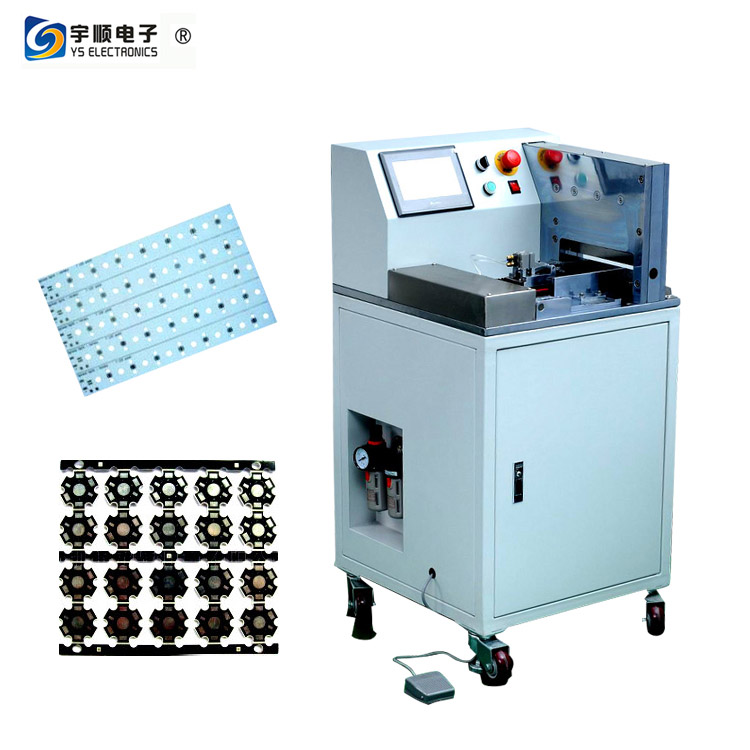

Automatic PCB Separator -YSVC-2LL
-YSVC-2LL

Introduction

Using the latest electronic lightweight design and high-tech feeding device, there’s no need to operate by people. This pcb cutting machine can finish the cutting schedule without stress, specially suitable for precision SMD, sheet and boards

without v cut. Cutting schedule is under 2mm, so the operation is very safe. And the blades are made of high speed steel, can be regrinded and reused.

Features:
1. The speed is 1 cut/s, controlled by pedal switch.

2. Equipped with automatic feeding device

3. Non-friction cut causes no metal residue.

4. The air pressure is 4-5kg, no need of special place to operate.

5. Automatic counting

6. Adopting microcomputer technology, the process can control the cutting times and schedule.

Specification

1. Voltage: 220VAC

2. Working air pressure: 0.4-0.6 Mpa

3. Weight: 120kg

4. Dimension: 428*508*912mm

5. Weight: 120kg

6. cutting speed: 80,120,200,300mm/s

7. cutting thickness: 0.2-5mm

8. maximum cutting length: 350mm
