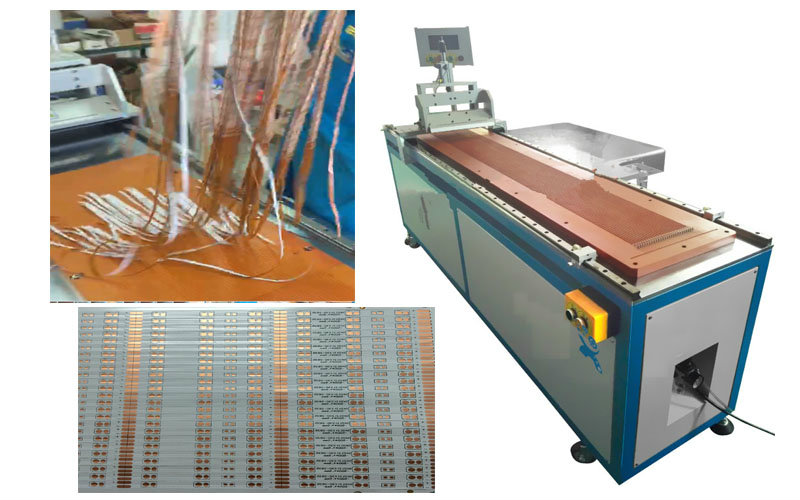

1. Production Machinery equipment introduction Motorized

Flex PCB Circuit Automatic depaneling is an automated depaneling device developed and patented by Suzhou Yu Shun Li Electronics Co., Ltd. based on the needs of the T8LEDFlex light belt on the market today. It is targeted at the Flex PCB Circuit of the Flex PCB Circuit circuit board Depressed, according to the width of the customer requirements of the width of the board width of the full-page cutting, the cutting effect is good, fast, much customer-friendly; for different sizes and specifications of the LEDFlex PCB Circuit products; to solve the customer manual depaneling slow, cutting poor results problem;

High quality Aluminum PCB V Cut Machine,LED PCB Separator with round shape Features:
1, for Flex light belt, Flex PCB circuit, Flex light bar circuit board LEDFlex light belt, Flex PCB Circuit, Flex light bar for cutting;

2, manually adjust the cutting blade module level, to solve the Flex PCB circuit thickness of the problem;

3,v cut with V groove guide to ensure product quality;

4, high efficiency: Vmax = 400mm / s, and the speed adjustable;

5, high precision, easy maintenance, high security;

6, the machine is simple, easy to use, solid and durable;

7, cutting mode lifting range: 25mm;

8, for different width of the Flex PCB Circuit, only need to replace the knife and fixture can be, easy to adjust;

9, cutting mode using left and right recycling, improve cutting efficiency;


Main configuration:


Configuration name
unit
Quantity
Remarks
Drive motor
set
2
Reese step
Screw guide
set
3
Taiwan HIWIN
Pilot cylinder
set
5
Star Pneumatic
man - machine interface
set
1
Taiwan Weilun
Industrial control system
station
1
Industrial PLC
cutting Knife mold
set
1
Imported tungsten steel mold
Control software
set
1
Pinyao-auto
Timing belt
set
1
Import mute timing belt
The electromagnetic valve
set
3
Yade off
Switching power supply
set
1
Taiwan Mingwei
air filter
One
1
Brave Pneumatic

2. technical parameters

Equipment model
YSVC-1200
YSVC-1500
length
1200mm
1500mm
speed
500mm/sec

Repeat accuracy
±0.02mm

Resolution
0.01mm

operating system
PLC + man - machine interface

transfer method
Precision stepper motor + synchronous technology

Cutting mode
High precision rotating tungsten steel

Targeting
Positioning fixture + cylinder in place

Working power supply

AC220V  50-60HZ   1.0KW


Machine size

1350╳950╳1120mm

1650╳950╳1120mm
equipment weight

350KG

450KG
